IPL1-120-01-L-S-RE1-K-WT datasheet, PDF

Datasheet> All Categories > The connector> The connector> IPL1-120-01-L-S-RE1-K-WT

IPL1-120-01-L-S-RE1-K-WT: DescriptionBoard Connector, 20 Contact(s), Male, Right Angle, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size107KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

IPL1-120-01-L-S-RE1-K-WT Overview

Board Connector, 20 Contact(s), Male, Right Angle, Solder Terminal, Locking, Black Insulator

IPL1-120-01-L-S-RE1-K-WT Parametric

Parameter Name	Attribute value
Objectid	315280804
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.27 inch
subject depth	0.295 inch
body length	2.16 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P20
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	825VAC V
Durability	100 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
Manufacturer's serial number	IPL1
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Plating thickness	10u inch
Rated current (signal)	2.9 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.085 inch
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

REVISION A

DO NOT

SCALE FROM

THIS PRINT

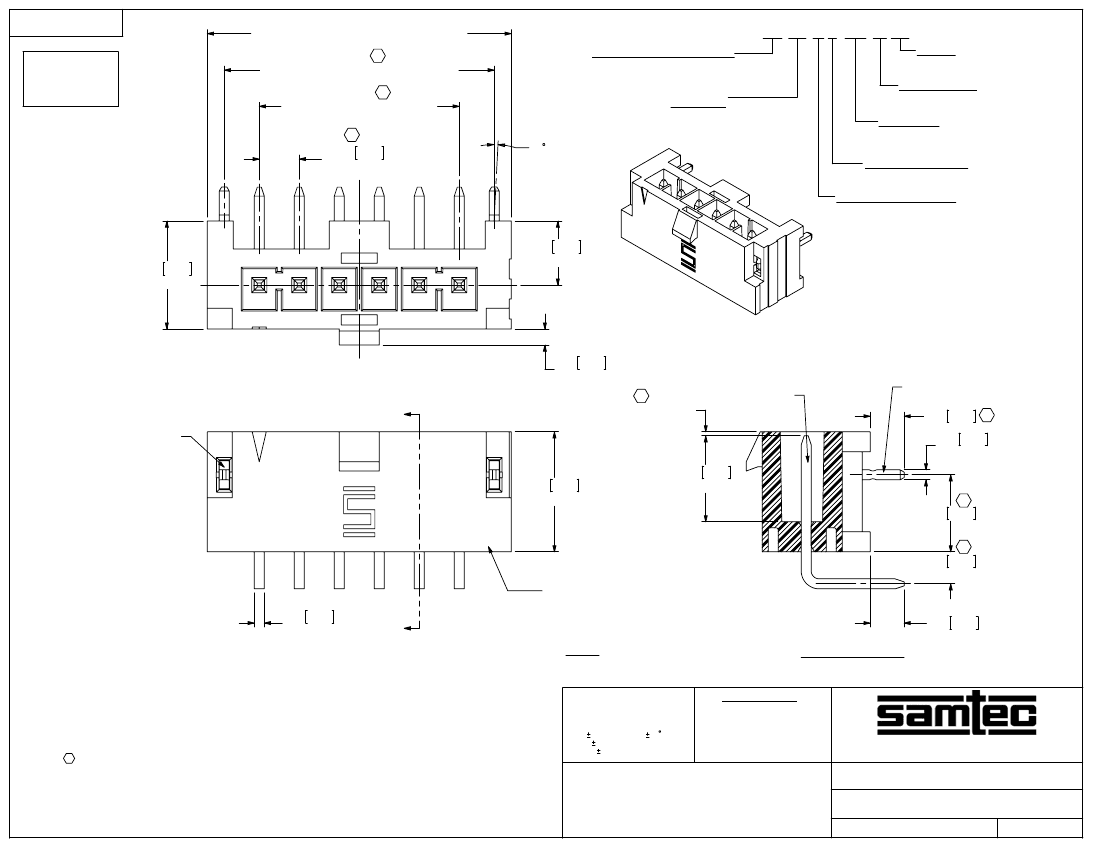

(NO OF POS x .100[2.54])+.160[4.06] REF

IPL1-1XX-XX-X-S-RE1-K-XX

No OF POSITIONS (PER ROW)

-02 THRU -25

LEAD STYLE

-01

2 MAX SWAY

(EITHER DIRECTION)

OPTION

-WT: WELD TAB

(NO OF POS x .100[2.54]) + .075[1.91]

(NO OF POS - 1) x .100[2.54]

.100 2.54 (TYP)

(TOL NON-ACCUM)

POLARIZATION

-K: KEYED POLARIZATION

TAIL OPTION

-RE1: RIGHT ANGLE / ELEVATED

ROW SPECIFICATION

-S: SINGLE ROW

PLATING SPECIFICATION

-F: 3µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL

-L: 10µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL

-S: 30µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL

.270 6.86

REF

.160 4.06

REF

.040 1.02

REF

"A"

SEE NOTE 5

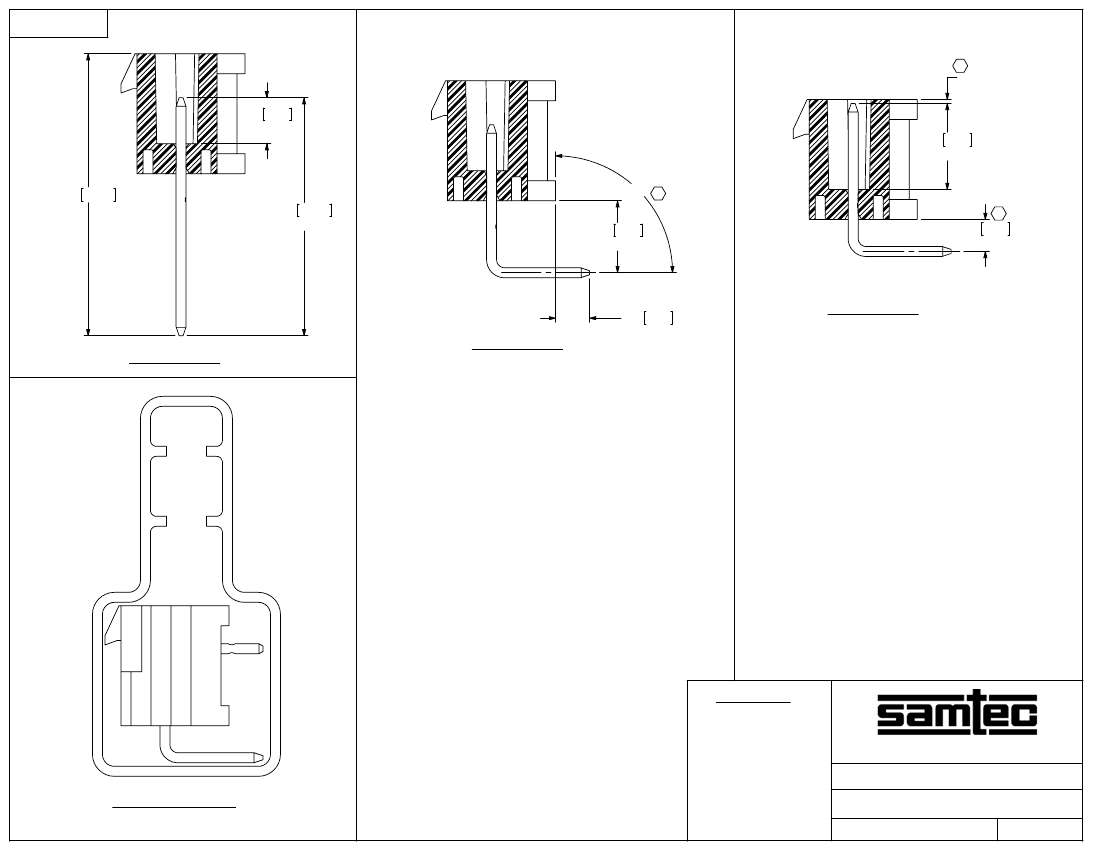

T-1S64-20-XXX

WT-28-04-T

.085 2.16

SEE NOTE 6

.215 5.46

REF

.025 0.64 SQ

REF (TYP)

.300 7.62

REF

.193 4.89

.080 2.03

(SEE NOTE 4)

IPL1-XX-S-RE1-K

.025 0.64 SQ

REF (TYP)

"A"

IPL1-106-01-XXX-S-RE1-K-WT SHOWN

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

PROPRIETARY NOTE

.085 2.16 REF

FIG 1

SECTION "A"-"A"

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM TERMINAL / WELD TAB RETENTION: 1.0LB.[4.4N].

3. POST MUST BE WITHIN .005[.13] OF EACH OTHER.

4. DIMENSION TO BE MEASURED AT BEND.

5. TIP TO BE FLUSH TO .015 BELOW TOP OF SHROUD.

6. WELD TABS TO BE INSERTED WHILE ON CARRIER.

7. PARTS TO BE PACKAGED IN TUBES.

.XX: .01[.3]

.XXX: .005[.13]

.XXXX: .0020[.051]

MATERIAL:

DECIMALS

ANGLES

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

DO NOT SCALE DRAWING

SHEET SCALE: 4:1

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

INSULATOR: LCP UL94-V0, COLOR: BLACK

TERMINAL: PHOS BRONZE

WELD TAB: BRASS

.100[2.54] ELEVATED RA TERMINAL ASSEMBLY

DWG. NO.

F:\DWG\SW\Exisprod\Assembly\100\IPL1-1XX-XX-X-S-RE1-K-XX.SLDDRW

BY:

JESSIEW

IPL1-1XX-XX-X-S-RE1-K-XX

4/24/2014

SHEET
