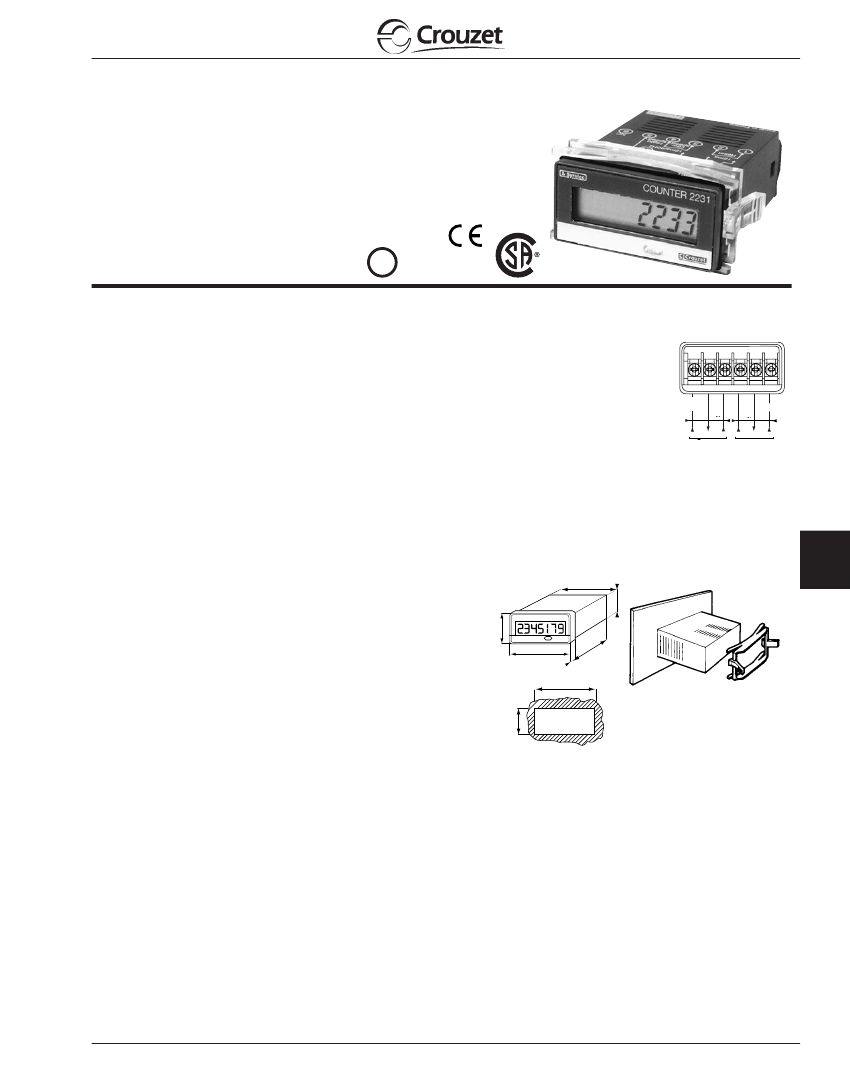

COUNT/RATE
COUNT/RATE
87 610 050 SERIES
TOTALIZING COUNTER
•
•
•
•
•
Voltage Input Version
8 Digit .3˝ High LCD Display
NEMA 4 Front Panel
Screw Terminal
Custom CMOS Technology
C
UL
®
US LISTED
GENERAL FEATURES:
The 87 601 050 Series is a totalizing counter housed in a DIN-sized
(24 x 48mm) enclosure. Count input and reset input can be a 5 to 50
VAC/DC and 48 to 240 VAC voltage pulse. The unit is powered by an
internal lithium battery which can be disconnected via a dip-switch for
storage purposes.
WIRING:
87 610 050
1 - 48 to 240 VAC Reset Input
2 - OV Reset Input
3 - 5 to 50 VAC/DC Reset Input
4 - 5 to 50 VAC/DC Count Input
5 - OV Count Input
6 - 48 to 240 VAC Count Input
1
2
3
4
5
6
48. 5.
240V 50V
~ ~/–
5. 48.
50V 240V
~/– ~
SPECIFICATIONS:
Display
. . . . . . . . . . . . . .
Display Height
. . . . . . . .
Input
Count/Reset Inputs
..............
Input Speed
. . . . . . . . . .
Min. low level time
.
Min. high level time
Power Supply
. . . . . . .
Connection
. . . . . . . . .
Front Panel Rating
. . .
Operating Temperature
Storage Temperature
. .
Weight
. . . . . . . . . . . . .
.
.
.
.
.
.
. . . . . . . . 8 Digit LCD
. . . . . . . . 0.3˝
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Voltage Pulse
Voltage Pulse
40 Hz
12 ms
12 ms
5 to 50 VAC/DC
48 to 240 VAC
Reset
Inputs
Count
Inputs
DIMENSIONS:
(mm)
44,6mm
7
Internal lithium battery (8 year life)
Screw Terminals
NEMA 4 (IP66)
+14°F to 122°F (-10 to 50°C)
-13°F to 158°F (-25 to 70°C)
2.1 oz. (60g)
24mm
48mm
3
64
mm
44.8
+0.6
-0
ORDERING INFORMATION:
Voltage Input Version
87 610 050
Products and specifications subject to change without notice.
Consult factory for application assistance.
204 Airline Drive, Suite 300, Coppell, Texas 75019 / Tel: (800) 677-5311 / FAX: (800) 677-3865 / www.crouzet-usa.com
22
+0.3
-0
21.8mm
7-7
