52304R-LF1 datasheet, PDF - EEWORLD Datasheet

52304R-LF1: DescriptionDatacom Transformer, GENERAL PURPOSE Application(s), 1.5:1, ROHS COMPLIANT; CategoryPower management transformer; File Size83KB，1 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric View All

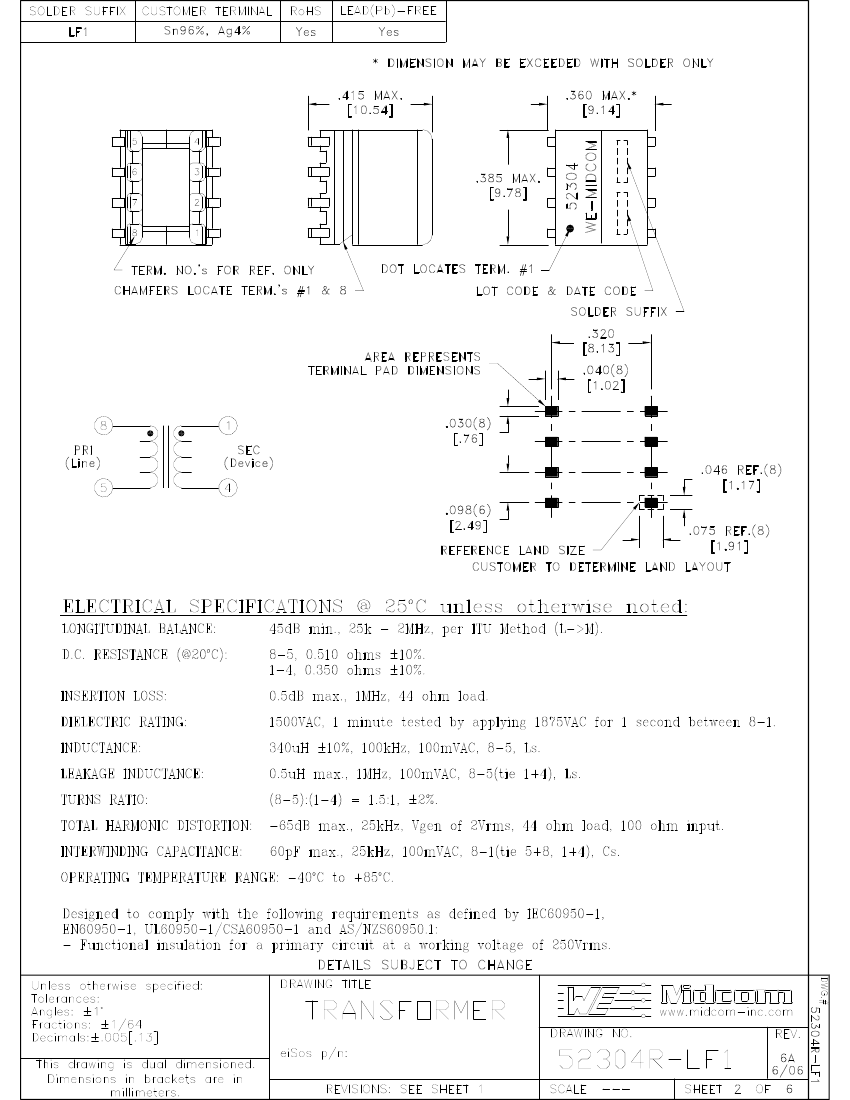

52304R-LF1 Overview

Datacom Transformer, GENERAL PURPOSE Application(s), 1.5:1, ROHS COMPLIANT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
high	10.54 mm
Insulation voltage	1875 V
JESD-609 code	e2
length	9.78 mm
Manufacturer's serial number	52304R-LF1
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	9.78mm X 9.14mm X 10.54mm
Primary inductance	340 µH
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1.5:1
width	9.14 mm
Base Number Matches	1
