Film Capacitors – AC Capacitors
Motor run capacitors
B32356
B32356 – MotorCap™ P2 Compact
EPCOS AG 2011. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
Film Capacitors – AC Capacitors
Motor run capacitors
B32356
B32356 – MotorCap™ P2 Compact

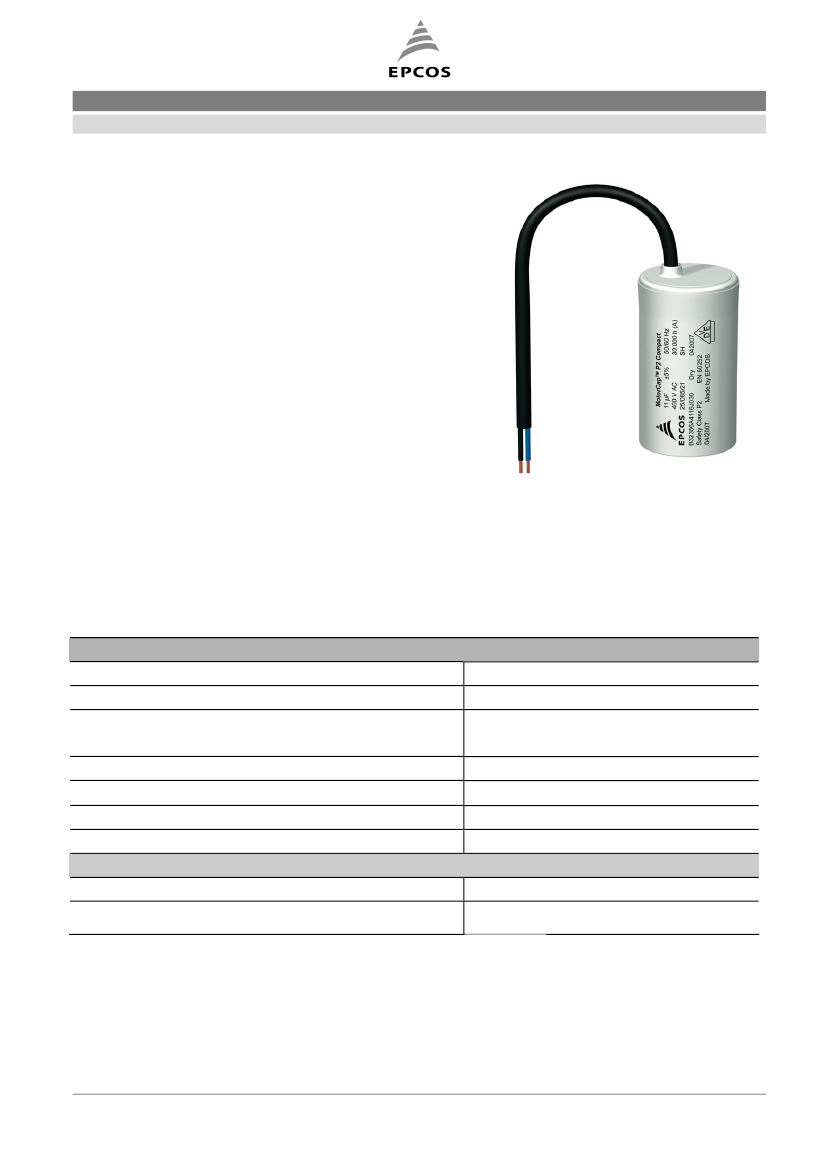

Construction
Dielectric: polypropylene film
Electrode: segmented metallized film
Dry type
Features
Self-healing properties
Low dissipation factor
P2 safety class to IEC 60252-1 2001-02
High insulation resistance
Case IP 53 protected
IEC/EN 60335-1 compatible
Typical applications
For general sine wave applications,
mainly as motor run capacitor
Terminals
Twin core cable, double insulated, 2 × 0.5 mm
2
minimum, +90 °C, (H05-V2-V2-F)
Twin core cable UL style on request
Receptacles on request
Technical data and specifications
Reference standards
Safety class to IEC 60252-1 2001-02
Life expectancy to IEC 60252 2001
Rated capacitance C
R
Tolerance
Rated voltage V
R
Rated frequency f
R
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
1.1 • V
R
1.3 •· I
R
(V
R
= rated voltage)
(I
R
= rated current)
IEC 60252-1 2001-02 / EN 60252 2001
P2
400 V/85 °C: 30 000 h (class A)
450 V/85 °C: 10 000 h (class B)
See dimensions table
5%,
other tolerances upon request
400, 450 V AC
50/60 Hz
FILM AC RD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 6
May, 2011
Film Capacitors – AC Capacitors
Motor run capacitors
B32356
B32356 – MotorCap™ P2 Compact
Test data
AC test voltage terminal to terminal V
TT
AC Test voltage terminals to case V
TC
Insulation resistance R
ins
or time constant
at 20 °C, rel. Humidity
65%
(minimum as-delivered values)
Dissipation factor tan
at 20 °C
Maximum rate of voltage rise dv/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Mechanical and thermal properties
Ball pressure test to IEC 60309-1 sec. 27.3
Plastic case and top disk material, filling material
UL 94 V2 compatible
Glow wire test to IEC 60695-2-1/0 and -2-1/1
Test temperature 550 °C for I
R
≤
0.5 A
Test temperature 750 °C for I
R
> 0.5 A
Part is compatible to EN 60335-1
> 250 V
IP 53
Self-extinguish within 2 seconds of
withdrawing glow wire without igniting
wrapping tissue to GWIT
20 N at 125 °C
Compliant to EN 60252/60335-1
25/085/21 to IEC 60068-1
–25 °C
+85 °C
21 days
2
•
V
R
, 2 s (routine test)
2
•·
V
R
, 60 s (type test)
2 kV AC, 2 s (routine test)
2 kV AC, 60 s (type test)
3 000 s
1.0
•
10
-3
(120 Hz)
10 V/s
Tracking Test to IEC 60112 solution A
Protection class to IEC 60529 2001
Compatibility to RoHS
Compliance to directive 2002/95/EC
Approvals
VDE
– 400 V/85 °C: 30 000 h (class A)
VDE
– 450 V/85 °C: 10 000 h (class B)
Approved
Approved
C
US
UL 810 files E106388
Approved Component 10000 AFC up to 450 V
FILM AC RD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 6
May, 2011
Film Capacitors – AC Capacitors
Motor run capacitors
B32356
B32356 – MotorCap™ P2 Compact

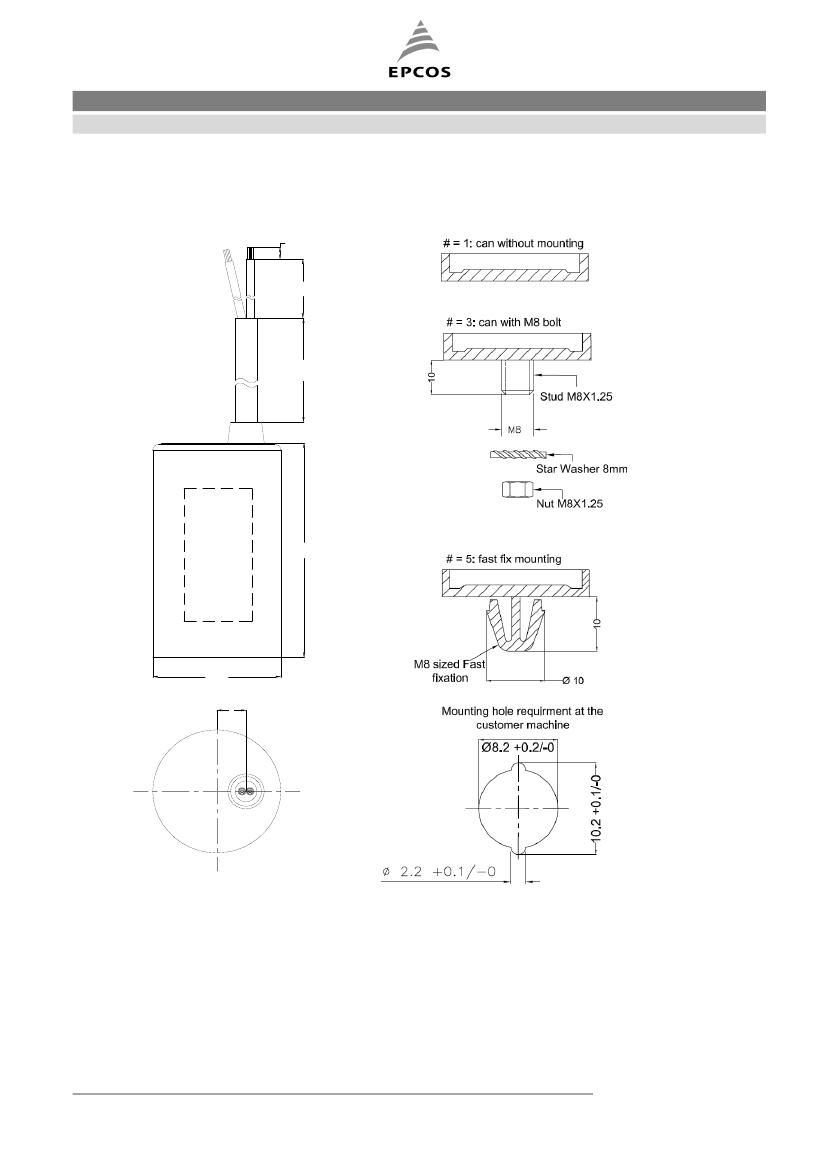

Dimensional drawing
s±3
Mounting options
Marking here
Ød±1
8
Mounting options:
Threaded stud at bottom of can (M8, max. torque = 5 Nm)
Fast fixation for mounting into a hole of Ø 8 mm
Mounting in any position possible
FILM AC RD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 6
L±2
b±10
h±5
May, 2011
Film Capacitors – AC Capacitors
Motor run capacitors
B32356
B32356 – MotorCap™ P2 Compact
Ordering codes and packing units
V
R
V AC
400 / 450
2
2.5
3
3.15
4
5
6
6.3
7
7.5
8
9
10
11
12
12.5
14
15
16
17.5
18
20
C
R
µF
Dimensions
d × L (mm)
25 × 58
25 × 58
30 × 56*
30 × 56*
30 × 56*
30 × 56*
35 × 56*
35 × 56*
35 × 56*
35 × 56*
35 × 71
35 × 71
35 × 71
40 × 72
40 × 72
40 × 72
45 × 72
45 × 72
45 × 96
45 × 96
50 × 96
50 × 96
Ordering code
B32356B4205J0#&
B32356B4255J0#&
B32356B4305J0#&
B32356B4315J5#0
B32356B4405J0#&
B32356B4505J0#&
B32356B4605J0#&
B32356B4635J0#&
B32356B4705J0#&
B32356B4755J0#&
B32356B4805J0#&
B32356B4905J0#&
B32356B4106J0#&
B32356B4116J0#&
B32356B4126J0#&
B32356B4126J5#0
B32356B4146J0#&
B32356B4156J0#&
B32356B4166J0#&
B32356B4176J5#0
B32356B4186J0#&
B32356B4206J0#&
Packing units
pcs.
112
112
112
112
112
112
84
84
84
84
84
84
84
60
60
60
45
45
45
45
32
32
* In case of construction with M8 bolt and locking clip height (dimension L) will be increased by 6 mm
Composition of ordering code:
#: construction:
1 plastic can
3 plastic can with M8 bolt
5 plastic can with locking clip available for diameters 30
mm, 32 mm and 35 mm, others on request
