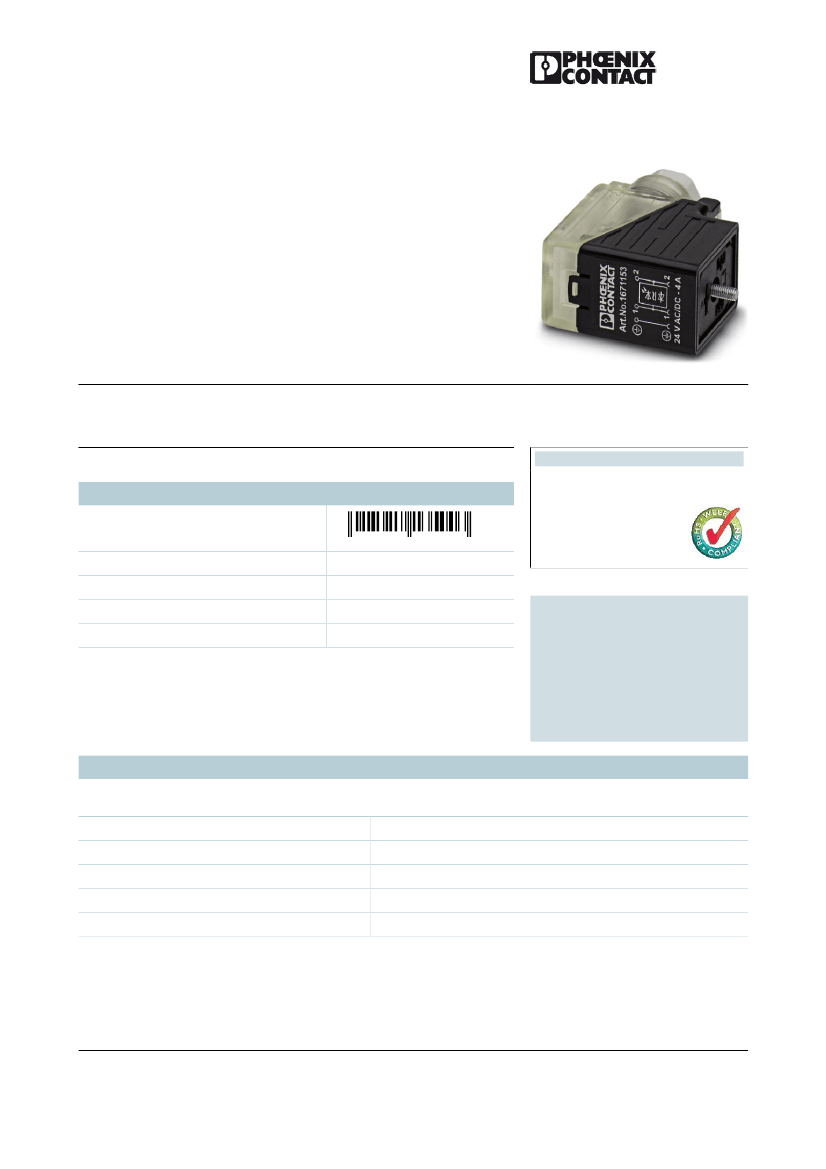

SACC-V-3CON-PG9/B-1L-S
Order No.: 1671153
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1671153
Valve connector, 3-pos., type B, 1 LED, with protective circuit, screw
connection, cable screw connection Pg9
Product notes
Commercial data
GTIN (EAN)
4
017918
135003
WEEE/RoHS-compliant since:
06/20/2006
sales group
Pack
Customs tariff
Catalog page information
D123
5 pcs.
85444290
Page 111 (PC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General data
Rated current at 40°C
Rated voltage
Number of positions
Volume resistance
Insulation resistance
4A
24 V
3
≤ 4 MΩ
> 2 GΩ
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 4
Jan 18, 2011
SACC-V-3CON-PG9/B-1L-S
Order No.: 1671153
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1671153
Ambient temperature (operation)
General characteristics
Standards/regulations
Surge voltage category
Pollution degree
Degree of protection
Contact material
Contact surface material
Valve plug contact insert material
Material, housing, valve plug
Type of connection
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
External cable diameter
Status display
Protective circuit/component
Certificates / Approvals
-25 °C ... 60 °C (valve plug)
Valve connector EN 175301-803
II
3
IP65
CuSn
Ag
PBT
PA
Screw connection
0.34 mm²
2.5 mm²
22
13
6 mm ... 8 mm
Yellow LED
Z diode
Certification
GOST
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 4
Jan 18, 2011
SACC-V-3CON-PG9/B-1L-S
Order No.: 1671153
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1671153
Diagrams/Drawings

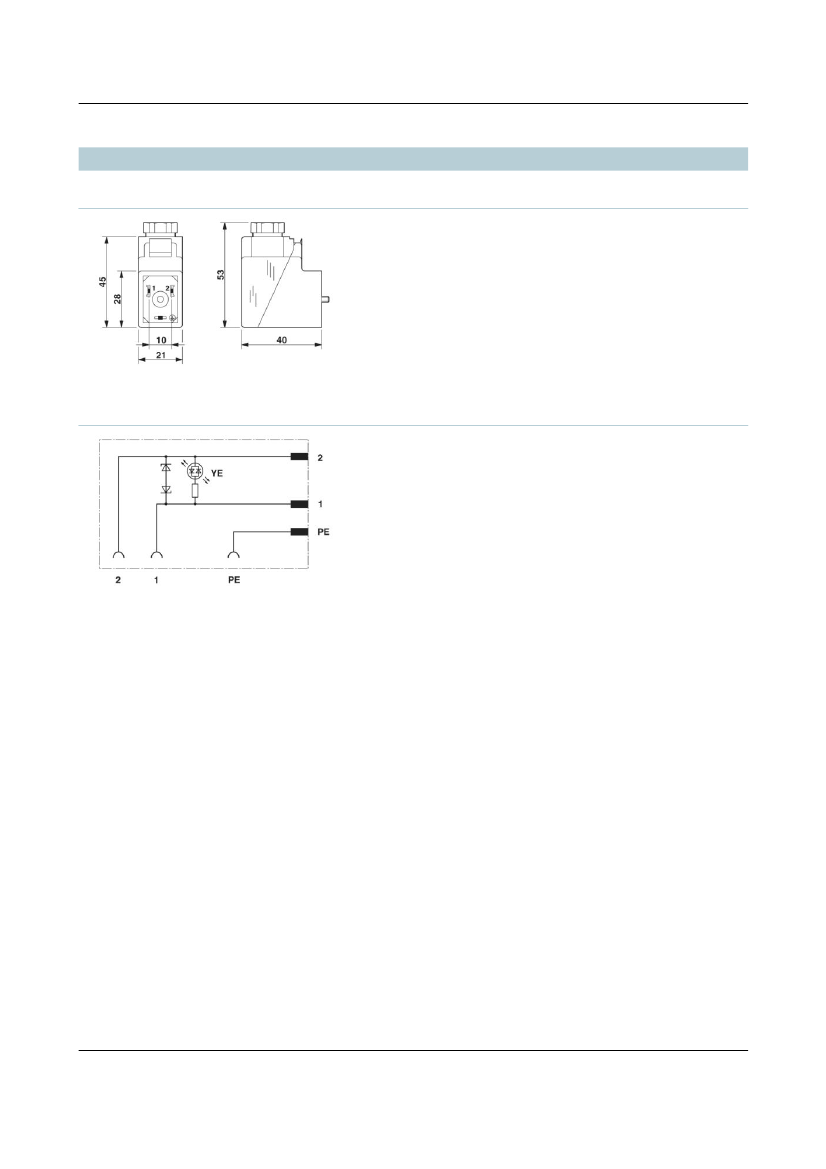

Dimensioned drawing
Circuit diagram
