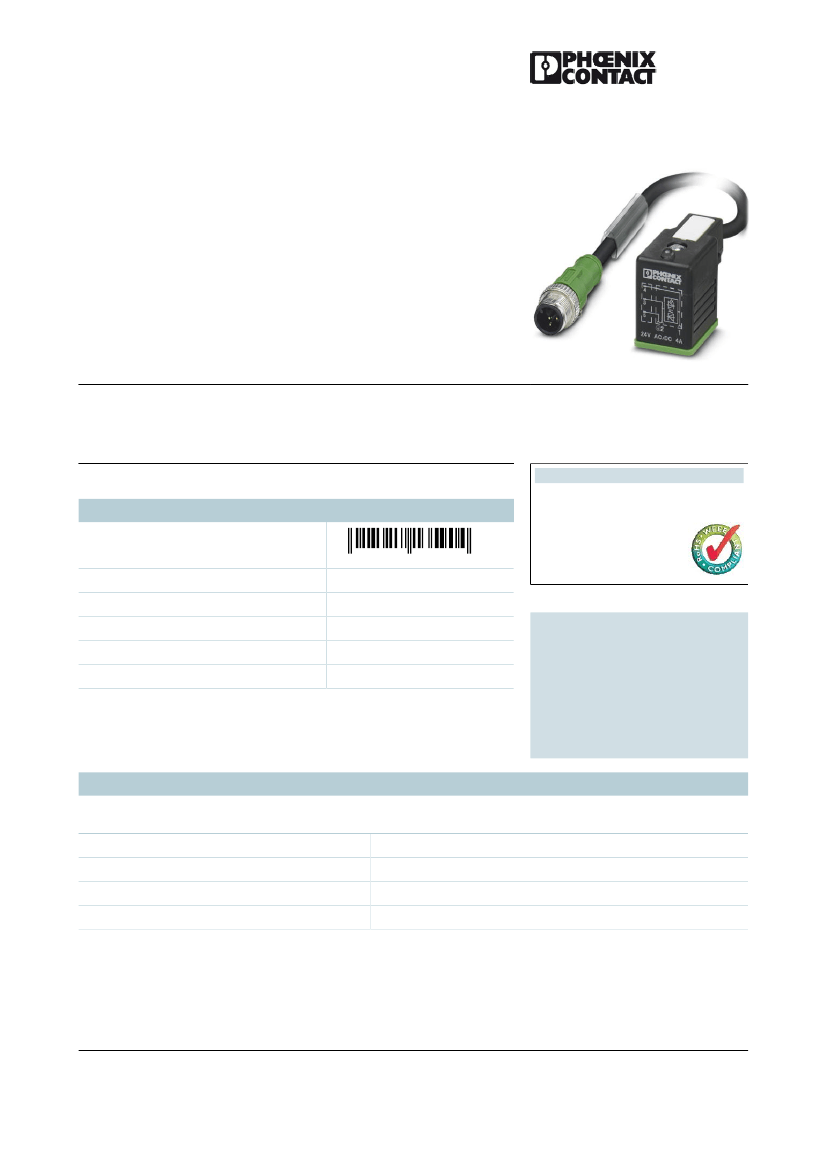

SAC-3P-M12MS/1,5-PUR/BI-1L-S
Order No.: 1669136
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1669136
Sensor/Actuator cable, 3-position, PUR/PVC, Black RAL 9005, Plug,
straight M12, A-coded, on Valve plug type B (11 mm), with 1 LED,
connected with Z diode, Cable length: 1.5 m
Product notes
Commercial data
GTIN (EAN)
4
017918
135904
WEEE/RoHS-compliant since:
04/27/2006
Note
sales group
Pack
Customs tariff
Catalog page information
Made-to-order
D114
1 pcs.
85444290
Page 90 (PC-2007)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General data
Rated current at 40°C
Rated voltage
Number of positions
4A
24 V
24 V (in acc. with DIN VDE 0110)
3
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 14, 2011
SAC-3P-M12MS/1,5-PUR/BI-1L-S
Order No.: 1669136
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1669136
Volume resistance
Insulation resistance
Length of cable
Ambient temperature (operation)
5 mΩ
≥ 100 MΩ
1.5 m
-25 °C ... 90 °C (Male connector / female connector)
-20 °C ... 80 °C (valve plug)
General characteristics
Coding
Surge voltage category
Pollution degree
Degree of protection
Insertion/withdrawal cycles
Contact material
Contact surface material
Contact carrier material
Material of grip body
Contact material
Contact surface material
Valve plug contact insert material
Material, housing, valve plug
Sealing material
Status display
Protective circuit/component
Conductor data
Cable type
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
PUR/PVC black
LiYY11Y-JZ
0.75 mm²
18
42x 0.15 mm
Approx. 1.8 mm
Approx. 0.34 mm (Core insulation)
Approx. 0.35 mm (Outer cable sheath)
Approx. 0.3 mm (Inner sheath)
External cable diameter
Wire colors
5.90 mm
Black 1, black 2, green/yellow
A - standard
II
3
IP67
≥ 100
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
CuSn
Ag
PBT
PBT
TPU (Flat gasket valve plug)
1 LED
Z diode
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 14, 2011
SAC-3P-M12MS/1,5-PUR/BI-1L-S
Order No.: 1669136
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1669136
External sheath, color
Insulation resistance
Nominal voltage, conductor
Test voltage, conductor
Overall twist
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Smallest bending radius, movable installation
Ambient temperature (operation)
Black RAL 9005
≥ 1 MΩ*km
300 V
2000 V
3 concentrically twisted wires
PUR
PVC
PVC
Bare Cu litz wires
59 mm
-30 °C ... 70 °C (cable, fixed installation)
-5 °C ... 70 °C (cable, flexible installation)
Certificates / Approvals
Certification
GOST
Diagrams/Drawings

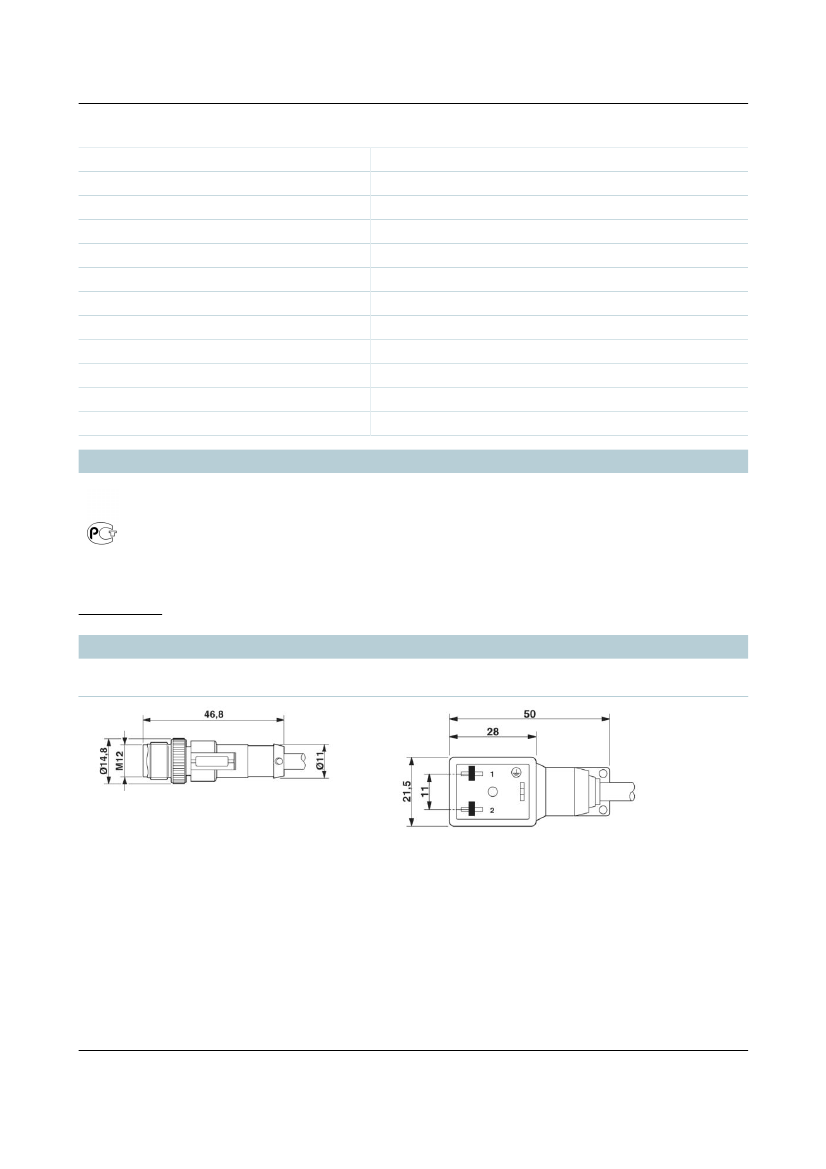

Dimensioned drawing
M12 x 1 male connector, straight
Valve connector, type BI
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 14, 2011
SAC-3P-M12MS/1,5-PUR/BI-1L-S
Order No.: 1669136
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1669136

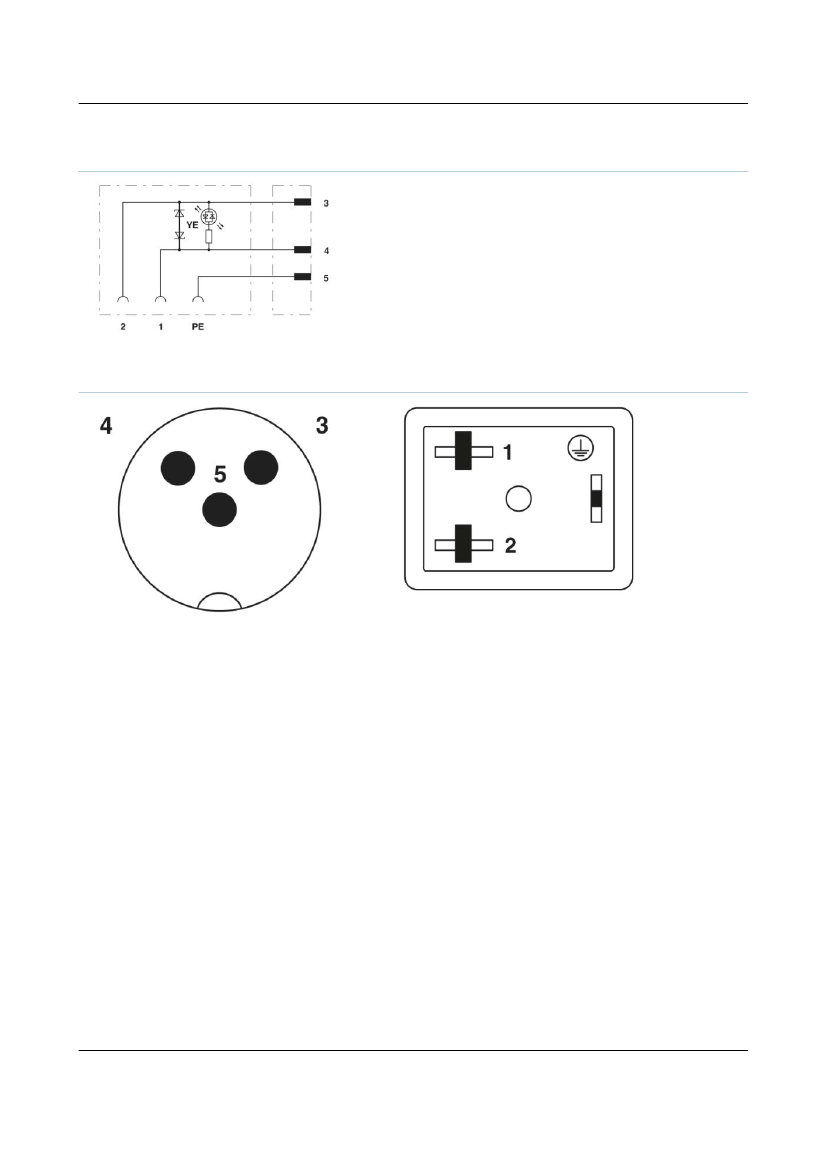

Circuit diagram
Contact assignment of M12 plug and valve connector
Schematic diagram
Valve connector pin assignment, type BI
Pin assignment M12 plug, 3-pos., valve
connector
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 14, 2011
SAC-3P-M12MS/1,5-PUR/BI-1L-S
Order No.: 1669136
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1669136
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 5
Feb 14, 2011
