FLS PB M12 DI 16 M12
Order No.: 2736220
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736220

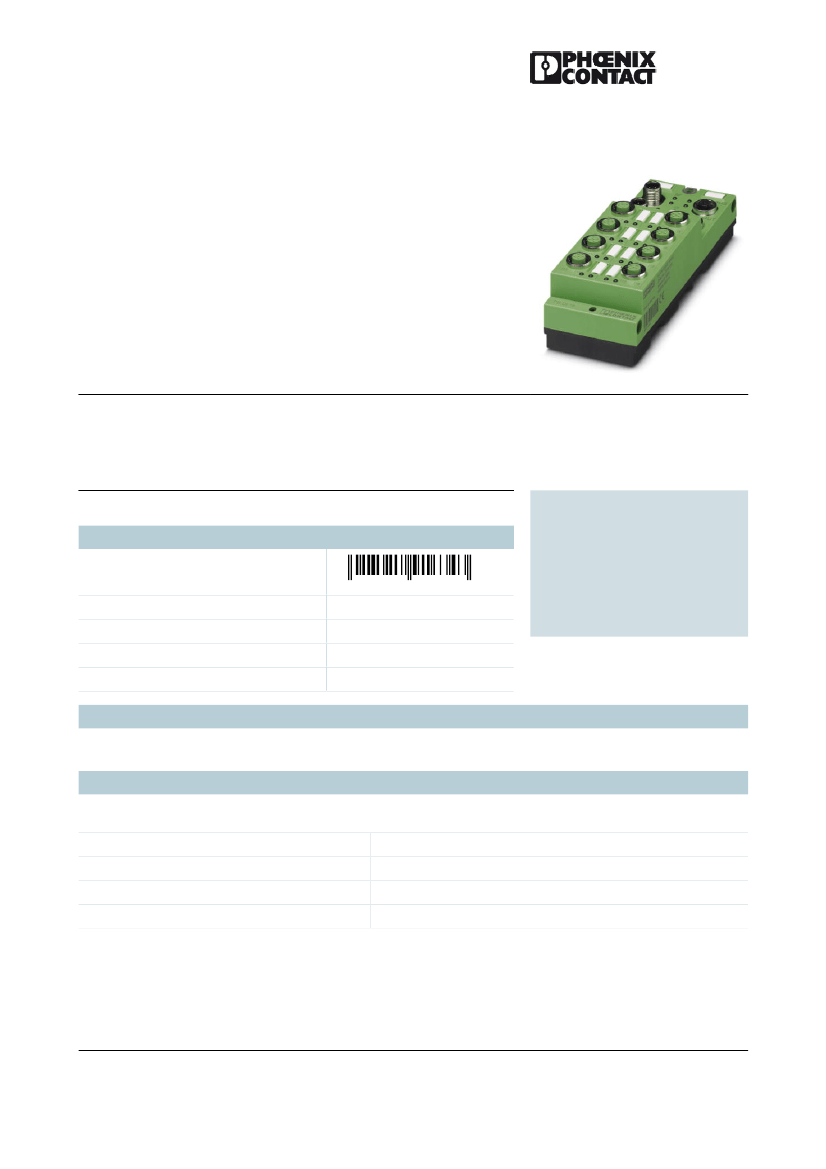

The stand-alone device for PROFIBUS has 16 digital inputs. The M12
connection is established using fast connection technology. The 24 V
DC supply is protected against short circuit and overload. The nominal
current of the device is 1.2 A.
Commercial data
GTIN (EAN)
4
017918
916343
sales group
Pack
Customs tariff
Catalog page information
Product description
L011
1 pcs.
85176200
Page 352 (AX-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
This device is used for digital signal acquisition.
Technical data
General data
Width
Height
Depth
Drill hole spacing
60 mm
161 mm
44.5 mm
151 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 7
Feb 4, 2011
FLS PB M12 DI 16 M12
Order No.: 2736220
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736220
Weight
Mounting type
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
Protection class
Test section
310 g
Wall mounting
-25 °C ... 60 °C
-25 °C ... 85 °C
95 %
80 kPa ... 106 kPa (up to 2000 m above sea level)
70 kPa ... 106 kPa (up to 3000 m above sea level)
IP65/67
III, IEC 61140, EN 61140, VDE 0140-1
24 V supply (bus logics) / Bus connection
24 V supply (bus logics) / FE 500 V AC 50 Hz 1 min
24 V supply (bus logics) / Digital inputs (sensor supply) 500 V AC
50 Hz 1 min
Bus connection / FE 500 V AC 50 Hz 1 min
Bus connection / Digital inputs (sensor supply) 500 V AC 50 Hz 1
min
FE / Digital inputs (sensor supply) 500 V AC 50 Hz 1 min
Interface
Fieldbus system
Name
Type of connection
Designation connection point
Transmission speed
Transmission physics
Address area assignment
Number of positions
Power supply for module electronics
Type of connection
Name
Supply voltage
Supply voltage range
Fieldline potential routing
Voltage supply U
L
Power supply at U
L
24 V DC
max. 4 A
M12 plug connectors, (A-coded)
U
L
24 V DC
18 V DC ... 30 V DC IEC 61131-2 (including ripple)
PROFIBUS-DP
PROFIBUS DP
2 M12 plug connectors, B-coded
Copper cable
9.64 kBaud to 12 Mbaud automatic detection
12 MBit/s (Automatic baud rate detection)
PROFIBUS-DP-compliant copper cable
1 ... 99, can be set
5
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 7
Feb 4, 2011
FLS PB M12 DI 16 M12
Order No.: 2736220
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736220
Current consumption from U
L
Typ. 35 mA
max. 100 mA
Voltage supply U
S
Power supply at U
S
Current consumption from U
S
24 V DC
max. 4 A
Typ. 8 mA (plus sensor current)
max. 1.2 A
Digital inputs
Input name
Type of connection
Connection method
Number of inputs
Protective circuit
Filter time
Input characteristic curve
Input voltage
Input voltage range "0" signal
Input voltage range "1" signal
Certificates / Approvals
Digital inputs
M12 plug connectors, double occupancy
2, 3, 4-wire
16
Protection against polarity reversal
1 ms
IEC 61131-2 type 1
24 V DC
-30 V DC ... 5 V DC
13 V DC ... 30 V DC
Certification
Certification Ex:
CUL, UL
CUL-EX, UL-EX
Accessories
Item
Designation
Description
Cable/conductor
1507298
SAC-2P- 2,0-910/M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Free conductor end, on Socket, straight M12, B-
coded, Cable length: 2 m
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 7
Feb 4, 2011
FLS PB M12 DI 16 M12
Order No.: 2736220
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736220
1507308
SAC-2P- 5,0-910/M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Free conductor end, on Socket, straight M12, B-
coded, Cable length: 5 m
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Free conductor end, on Socket, straight M12, B-
coded, Cable length: 10 m
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Free conductor end, on Socket, straight M12, B-
coded, Cable length: 15 m
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 0.3 m
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 0.5 m
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 1 m
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Plug, straight M12, B-coded, on Free conductor
end, Cable length: 2 m
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 2 m
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Plug, straight M12, B-coded, on Free conductor
end, Cable length: 5 m
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 5 m
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Plug, straight M12, B-coded, on Free conductor
end, Cable length: 10 m
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 10 m
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Plug, straight M12, B-coded, on Free conductor
end, Cable length: 15 m
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 15 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Free conductor end, on Socket, straight M12, A-coded, Cable
length: 2 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Free conductor end, on Socket, straight M12, A-coded, Cable
length: 5 m
1507311
SAC-2P-10,0-910/M12FSB
1507324
SAC-2P-15,0-910/M12FSB
1507340
SAC-2P-M12MSB/ 0,3-910/
M12FSB
SAC-2P-M12MSB/ 0,5-910/
M12FSB
SAC-2P-M12MSB/ 1,0-910/
M12FSB
SAC-2P-M12MSB/ 2,0-910
1507353
1507366
1507243
1507379
SAC-2P-M12MSB/ 2,0-910/
M12FSB
SAC-2P-M12MSB/ 5,0-910
1507256
1507382
SAC-2P-M12MSB/ 5,0-910/
M12FSB
SAC-2P-M12MSB/10,0-910
1507269
1507395
SAC-2P-M12MSB/10,0-910/
M12FSB
SAC-2P-M12MSB/15,0-910
1507272
1507405
SAC-2P-M12MSB/15,0-910/
M12FSB
SAC-4P- 2,0-186/M12FS
1509487
1509490
SAC-4P- 5,0-186/M12FS
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 7
Feb 4, 2011
FLS PB M12 DI 16 M12
Order No.: 2736220
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736220
1509500
SAC-4P-10,0-186/M12FS
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Free conductor end, on Socket, straight M12, A-coded, Cable
length: 10 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Free conductor end, on Socket, straight M12, A-coded, Cable
length: 15 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 0.3 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 0.5 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 1 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Free conductor end, Cable
length: 2 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 2 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Free conductor end, Cable
length: 5 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 5 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Free conductor end, Cable
length: 10 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 10 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Free conductor end, Cable
length: 15 m
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 15 m
1509513
SAC-4P-15,0-186/M12FS
1509526
SAC-4P-M12MS/ 0,3-186/
M12FS
SAC-4P-M12MS/ 0,5-186/
M12FS
SAC-4P-M12MS/ 1,0-186/
M12FS
SAC-4P-M12MS/ 2,0-186
1509539
1509542
1509445
1509555
SAC-4P-M12MS/ 2,0-186/
M12FS
SAC-4P-M12MS/ 5,0-186
1509458
1509568
SAC-4P-M12MS/ 5,0-186/
M12FS
SAC-4P-M12MS/10,0-186
1509461
1509571
SAC-4P-M12MS/10,0-186/
M12FS
SAC-4P-M12MS/15,0-186
1509474
1509584
SAC-4P-M12MS/15,0-186/
M12FS
Marking
0809735
ZBF 12:UNBEDRUCKT
Zack strip, flat, unprinted, 5-section, divisible, for labeling by the
customer
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 7
Feb 4, 2011
