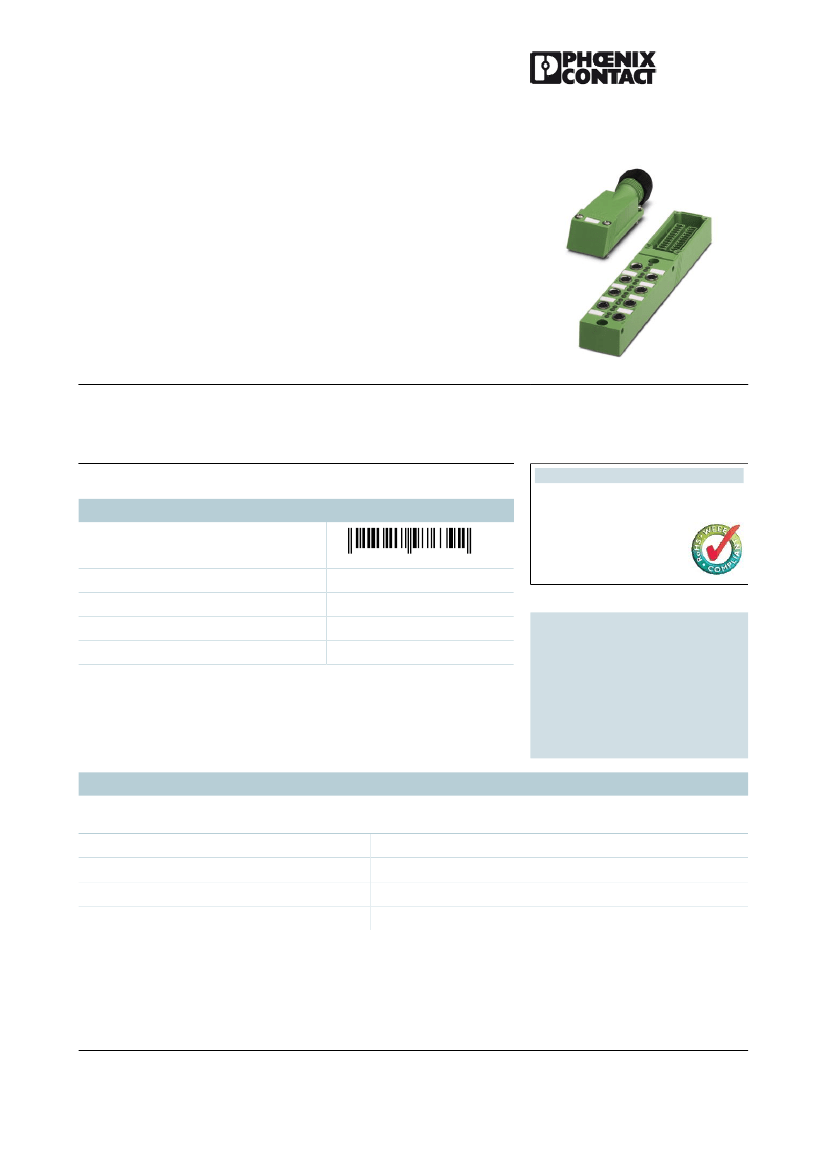

SACB- 8/3-L-C-M8
Order No.: 1511750
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1511750
Sensor/actuator box, M8 socket, Number of slots: 8, Number of
positions: 3, Slot assignment: Single, Status indication: Yes, pnp 180°,
Shielding: No
Product notes
Commercial data
GTIN (EAN)
4
017918
976392
WEEE/RoHS-compliant since:
11/10/2006
sales group
Pack
Customs tariff
Catalog page information
D102
1 pcs.
85366990
Page 113 (PC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General data
Rated voltage
Max. operating voltage U
max
Current carrying capacity per I/O signal
Current carrying capacity per slot
24 V DC
30 V DC
2A
2A
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 7
Dec 30, 2010
SACB- 8/3-L-C-M8
Order No.: 1511750
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1511750
Total rated current
Number of positions
Number of slots
Degree of protection
Inflammability class acc. to UL 94
Ambient temperature (operation)
Sensor/actuator connection system
Local diagnostics function
Local diagnostics
8A
3
8
IP65/IP67
V0
-30 °C ... 80 °C
M8 socket
Supply voltage per module Green LED
Status display I/O Yellow LED
Master cable data
Type of connection
Conductor cross-section min. (signal)
Conductor cross-section max. (signal)
Conductor cross-section AWG min. (signal)
Conductor cross-section AWG max. (signal)
Conductor cross-section min. (energy)
Conductor cross-section max. (energy)
Conductor cross-section AWG min. (energy)
Conductor cross-section AWG max. (energy)
External cable diameter min.
External cable diameter max.
Stripping length
Tightening torque, cover screw
Tightening torque, union nut
Tightening torque slot sensor/actuator cable
Tightening torque screw plug
Insulation material
Housing material
Material of the moulding mass
Contact material
Contact surface material
Contact carrier material
Material of contact, master cable side
PBT
PUR
CuSn
Ni/Au
PA
CU alloy
Pluggable screw connection
0.14 mm²
1.5 mm²
26
16
0.14 mm²
1.5 mm²
26
16
7 mm
12 mm
7 mm
1 Nm
2.5 Nm
0.2 Nm
0.2 Nm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 7
Dec 30, 2010
SACB- 8/3-L-C-M8
Order No.: 1511750
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1511750
Material of contact surface, master cable side
Material of the contact carrier on the master cable
side
Material of threaded sleeve
Material of threaded sleeve surface
Material, O-ring
Pin assignment
Slot/position = Wire color or connection
Gold-plated
PA 66 V0
Cu alloy
Nickel-plated
NBR
1 / 4 (A) = 1 / 4
2 / 4 (A) = 2 / 4
3 / 4 (A) = 3 / 4
4 / 4 (A) = 4 / 4
5 / 4 (A) = 5 / 4
6 / 4 (A) = 6 / 4
7 / 4 (A) = 7 / 4
8 / 4 (A) = 8 / 4
1-8 / 1 (+ 24 V) = U
N
1-8 / 3 (0 V) = 0 V
Certificates / Approvals
Certification
CUL, UL
Accessories
Item
Designation
Description
Connector hood
1516425
SACB-C-H180- 8/3-M8
Connector hood, M8 socket, Number of slots: 8, Slot assignment:
Single, Status indication: No 180°
General
1517592
SACB- 8X0,34/2X0,75-50 PUR
Master cable for sensor/actuator boxes, without PE conductor,
unshielded, material PUR/PVC, 10-pos., 8 x 0.34 mm² and 2 x
0.75 mm², length: 50 m
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 7
Dec 30, 2010
SACB- 8/3-L-C-M8
Order No.: 1511750
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1511750
Marking
0809984
0809997
ZBF10:SO/CMS
ZBF10:UNBEDRUCKT
Zack marker strip, flat, in 10 mm pitch, labeled according to
customer specifications, 10-section, divisible, color: White
Zack marker strip, flat, in 10 mm pitch, unprinted, 10-section, for
individual labeling with M-PEN 0,8, X-PEN, or CMS-P1-PLOTTER
Protection and sealing elements
1682540
PROT-M8
An M8 screw plug for the unoccupied M8 sockets of the sensor/
actuator cable, boxes and flush-type connectors
Tools
1208461
SAC BIT M8-D10
Nut for assembling sensor/actuator cables with M8 connector and
for M8 connectors with QUICKON fast connection technology, for
4 mm hexagonal drive
Nut for assembling SACC M8 connectors for free assembly with
longitudinal knurl, excluding M8 connectors with QUICKON fast
connection technology, for 4 mm hexagonal drive
Screwdriver, PZ crosshead, VDE insulated, size: PZ 2 x 100 mm,
2-component grip, with non-slip grip
Torque screwdriver, with preset torque of 0.2 Nm and 4 mm
hexagonal drive for M8 connectors
1208474
SACC BIT M8-D12
1206463
1208487
SZK PZ2 VDE
TSD 02 SAC

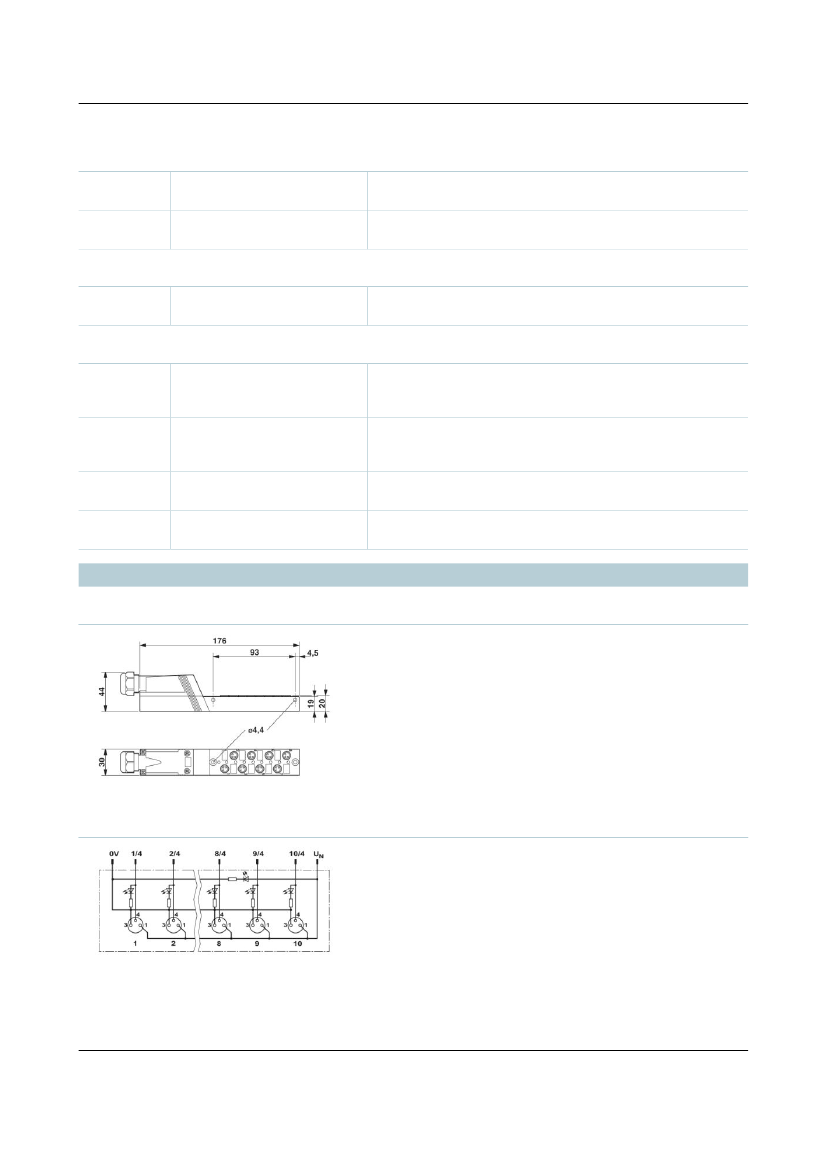

Diagrams/Drawings
Dimensioned drawing
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 7
Dec 30, 2010
SACB- 8/3-L-C-M8
Order No.: 1511750
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1511750

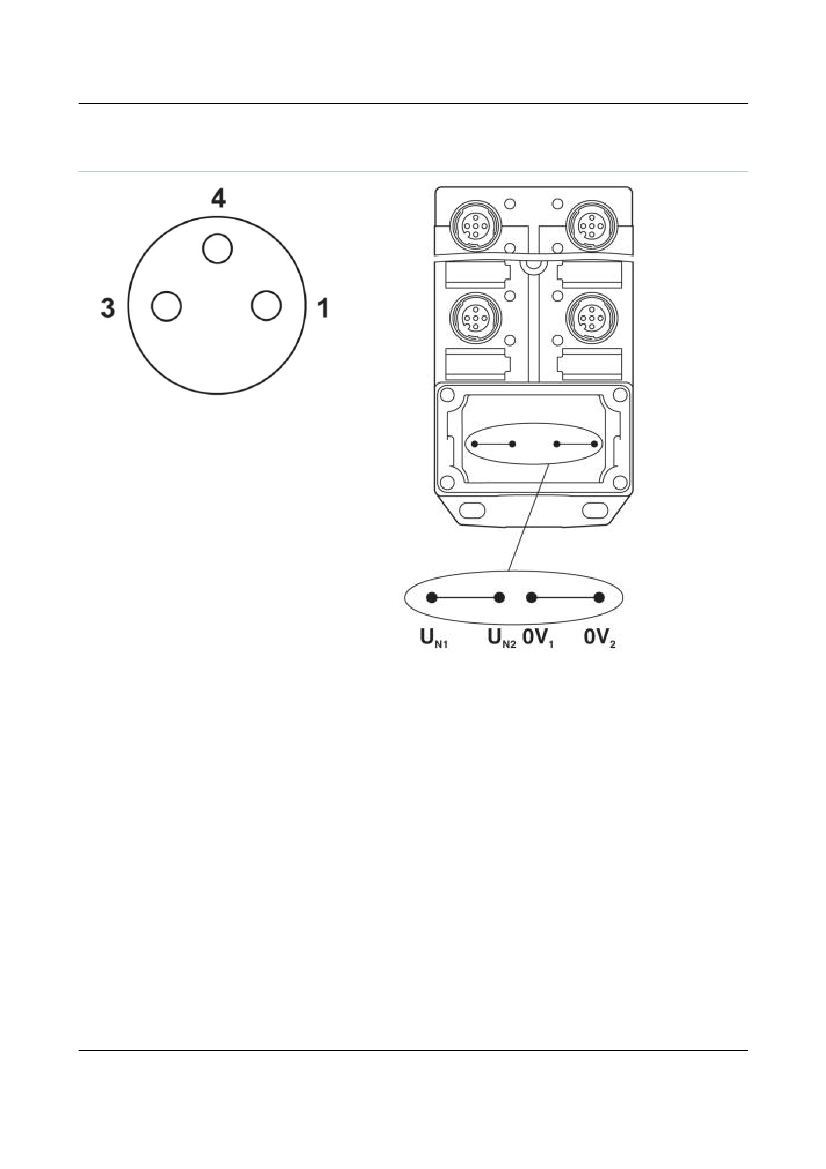

Schematic diagram
M8 slot, socket, 3-pos.
Potential U
N1
and U
N2
bridged
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 7
Dec 30, 2010
