TWS ELECTROLYTIC TANTALUM CAPACITOR
DLA 13017

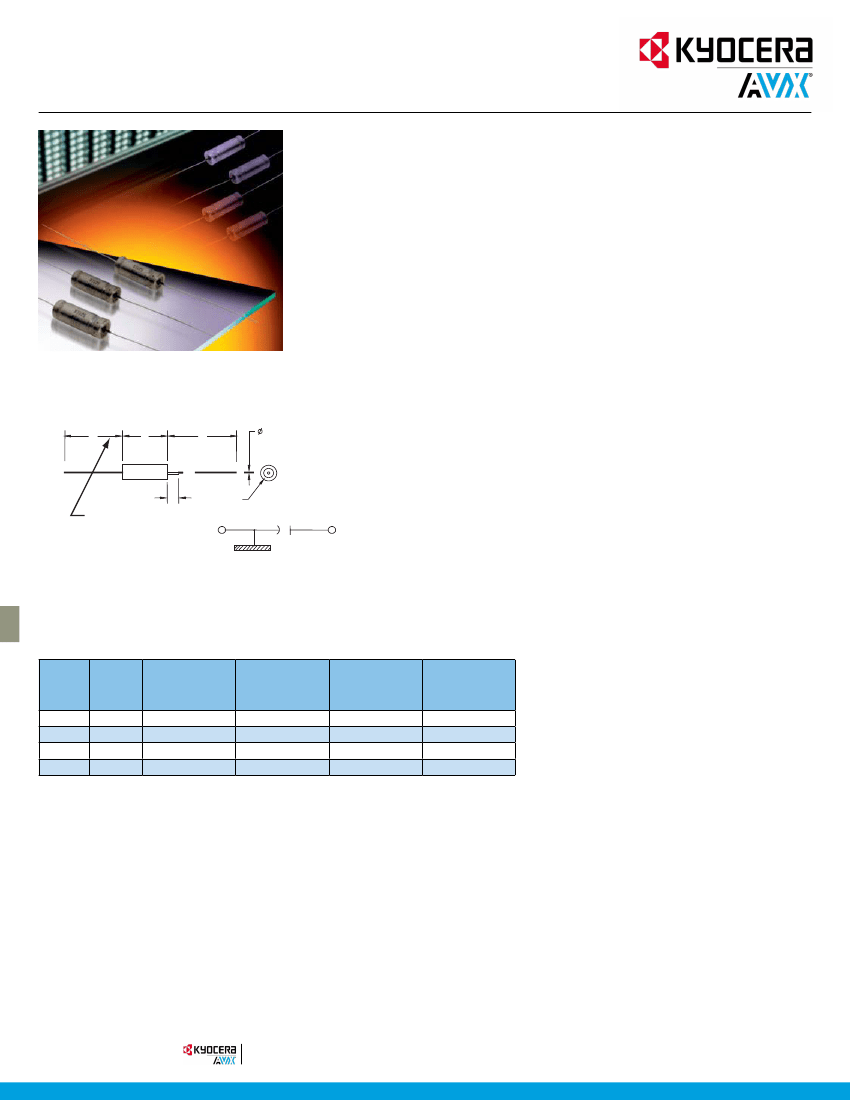

The TWS series, built to the requirements of DLA 13017, represents a family of axial leaded wet
tantalum capacitors that encompasses the high capacitance values of DLA 93026 with additional
mechanical stability for increased vibration capability.
Vibration Capabilities:
Vibration: MIL-PRF-39006, MIL-STD-202, Method 204, Test Condition E, 50 g Random Vibration:
MIL-PRF-39006, MIL-STD-202, Method 214, Test condition II- G, 27.78 g
Shock: MIL-PRF-39006, MIL-STD-202, Method 213, Condition D, 500 g
Components built to DLA 13017 also see enhanced thermal shock testing with an increase from
the standard 30 cycles to 300 cycles.
In addition, this family includes reverse voltage testing in accordance with MIL-PRF- 39006, with
a maximum dc potential of -3 V.
Customized capacitance and voltage packages are possible and welcomed. Contact the factory
about design possibilities beyond those contained in this datasheet.
Operating Temperature -55ºC to 125ºC
OUTLINE DIMENSIONS
E
L
E
W
F
Terminal welded
to case (T)
D
-
+
F 6.35 (0.250)
W 0.64 +0.05
(.025 +.002)
T 2.380 (.094)
Case
CASE DIMENSIONS:
millimeters (inches)
DLA
Case Size
T1
T2
T3
T4
Case
Size
A
B
D
E
L
+0.79 (0.031)
-0.41 (0.016)
11.51 (0.453)
16.28 (0.641)
19.46 (0.766)
26.97 (1.062)
D
Without Insulating
Sleeve
±0.41 (0.016)
4.78 (0.188)
7.14 (0.281)
9.52 (0.375)
9.52 (0.375)
D
With Insulatiing
Sleeve
Max
5.56 (0.219)
7.92 (0.312)
10.31 (0.406)
10.31 (0.406)
E
±6.35 (0.250)
38.10 (1.500)
57.15 (2.250)
57.15 (2.250)
57.15 (2.250)
118
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available
online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
061120
–
high reliability tantalum capacitors
–
TWS ELECTROLYTIC TANTALUM CAPACITOR
DLA 13017
HOW TO ORDER PART NUMBER:
TWS
Type
B
Case
Size
A = T1
B = T2
D = T3
E = T4
686
Capacitance
Code
pF code:
1st two digits
represent
significant
figures 3rd
digit represents
multiplier
(number of
zeros to follow)
K
Capacitance
Tolerance
K = ±10%
M = ±20%
100
Voltage
Insulation Sleeve
C = Without Sleeve
S = With Sleeve
B
Packaging
B = Tray Pack
#
Qualification
S = Std.
Conformance
D = DLA
L = Group A
9 = SRW9000
Z
Reliability
Z = Non-ER
00
Termination
Finish
00 = Sn /Pb 60/40
07 = 100% Tin
00
Standard
DLA PART IDENTIFICATION NUMBER (PIN):
13017
Drawing
Number
LEAD-FREE COMPATIBLE
COMPONENT
-XX
Dash
Number
See Rating
Tables
*
Capacitance
Tolerance
K = ±10%
M = ±20%
Insulation Sleeve
U = Without Sleeve
S = With Sleeve
For RoHS compliant products,
please select correct termination style.
SPACE LEVEL OPTIONS TO SRW9000*:
TWS
Type
B
686
K
100
B
Packaging
B = Tray Pack
#
Qualification
L = Group A
Z
Reliability
Z = Non-ER
9
0
00
Capacitance Capacitance
Tolerance
Code
K = ±10%
pF code:
M = ±20%
1st two digits
represent
significant
figures 3rd
digit represents
multiplier
(number of
zeros to follow)
Voltage Insulation Sleeve
Code
C = Without Sleeve
S = With Sleeve
Qualification Termination Custom Test
Options
Finish
Level
0 = Sn /Pb 00 = Standard
9=
60/40
SRW9000
Not RoHS Compliant
*Check with factory for availability and testing details.
RIPPLE CURRENT MULTIPLIERS
vs. Frequency, temperature and applied voltage
1/ 2/
Frequency of
Applied
Ripple Current
Ambient Still Air
Temperature (ºC)
100%
% of
90%
85ºC
Rated
80%
Peak
70%
Voltage
66-2/3%
Frequency of
Applied
Ripple Current
Ambient Still Air
Temperature (ºC)
100%
% of
90%
85ºC
Rated
80%
Peak
70%
Voltage
66-2/3%
120Hz
≤55
0.60
0.60
0.60
0.60
0.60
85
0.39
0.46
0.52
0.58
0.60
105
–
–
0.35
0.44
0.46
125
–
–
–
–
0.27
≤55
0.71
0.71
0.71
0.71
0.71
85
0.43
0.55
0.62
0.69
0.71
800Hz
105
–
–
0.42
0.52
0.55
125
–
_
–
–
0.32
≤55
0.72
0.72
0.72
0.72
0.72
85
0.45
0.55
0.62
0.70
0.72
1kHz
105
–
–
0.42
0.52
0.55
125
–
–
–
–
0.32
10kHz
≤55
0.88
0.88
0.88
0.88
0.88
85
0.55
0.67
0.76
0.85
0.88
105
–
–
0.52
0.64
0.68
125
–
–
–
–
0.40
≤55
1.00
1.00
1.00
1.00
1.00
85
40kHz
105
–
–
0.59
0.73
0.77
125
–
_
–
–
0.45
≤55
1.10
1.10
1.10
1.10
1.10
100kHz
85
0.69
0.85
0.96
1.07
1.10
105
–
–
0.65
0.80
0.85
125
–
–
–
–
0.50
0.63
0.77
0.87
0.97
1.00
1/ At 125ºC the rated voltage of the capacitors decreases to 66 2/3 of the 85ºC rated voltage.
2/ The peak of the applied ac ripple voltage plus the applied dc voltage must not exceed the dc voltage rating of the capacitors.
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available
online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
061120
119
–
high reliability tantalum capacitors
–
TWS ELECTROLYTIC TANTALUM CAPACITOR
DLA 13017
RATINGS & PART NUMBER REFERENCE
Part
Number
DLA
Part
Number
13017-01*
13017-02*
13017-03*
13017-04*
13017-05*
13017-06*
13017-07*
13017-08*
13017-09*
13017-10*
13017-12*
13017-14*
13017-15*
13017-16*
13017-17*
13017-18*
13017-20*
13017-21*
13017-22*
13017-23*
13017-24*
13017-27*
13017-28*
13017-29*
Cap
(μF)
25ºC
at 120Hz
120
560
1200
1800
100
470
1000
1500
68
220
680
150
390
560
33
110
470
15
68
150
220
82
100
150
DC Rated
Voltage
(V)
at 85ºC
25
25
25
25
30
30
30
30
50
50
50
60
60
60
75
75
75
100
100
100
100
125
125
125
Impedance
max (Ohms)
-55ºC
+85ºC
+25ºC
& +125ºC at 120Hz
25 VDC at 85ºC 15 VDC at 125ºC
1.3
1
5
25
0.83
2
10
12
0.65
5
20
7
0.5
6
25
7
30 VDC at 85°C 20 VDC at 125°C
1.3
1
5
25
0.85
2
10
15
0.7
7
25
7
0.6
12
35
6
50 VDC at 85°C 30 VDC at 125°C
1.5
1
5
35
0.9
2
10
17.5
0.7
5
40
8
60V VDC at 85°C 40 VDC at 125°C
1.1
2
10
20
0.9
3
25
15
0.8
5
40
10
75V VDC at 85°C 50 VDC at 125°C
2.5
1
5
66
1.3
2
10
24
0.9
5
50
12
100 VDC at 85°C 65 VDC at 125°C
3.5
1
5
125
2.1
2
10
37
1.6
3
25
22
1.2
5
50
15
125 VDC at 85°C 85 VDC at 125°C
1.8
3
25
40
1.8
3
25
35
1.6
5
50
20
ESR
max
(ohms)
at 120Hz
DC Leakage max
(μA)
Maximum Capacitance
Change (%)
-55ºC
-42
-65
-70
-72
-38
-65
-70
-72
-25
-50
-58
-40
-45
-58
-25
-35
-50
-18
-30
-35
-40
-35
-35
-35
+85ºC
8
14
15
15
8
14
15
15
8
8
10
8
8
8
5
6
6
3
4
6
6
5
5
6
+125ºC
12
18
20
20
12
18
25
25
15
15
20
15
15
15
9
10
10
10
12
12
12
12
12
12
AC Ripple
(mA rms)
85ºC at
40kHz
1250
2000
2400
3000
1200
1800
2200
2900
1050
1800
2700
1800
2100
2700
1050
1650
2700
1050
1650
2100
2700
1950
2100
2750
Case Size
AVX
A
B
D
E
A
B
D
E
A
B
E
B
D
E
A
B
E
A
B
D
E
D
D
E
DLA
T1
T2
T3
T4
T1
T2
T3
T4
T1
T2
T4
T2
T3
T4
T1
T2
T4
T1
T2
T3
T4
T3
T3
T4
TWSA127*025B#Z0000
TWSB567*025B#Z0000
TWSD128*025B#Z0000
TWSE188*025B#Z0000
TWSA107*030B#Z0000
TWSB477*030B#Z0000
TWSD108*030B#Z0000
TWSE158*030B#Z0000
TWSA686*050B#Z0000
TWSB227*050B#Z0000
TWSE687*050B#Z0000
TWSB157*060B#Z0000
TWSD397*060B#Z0000
TWSE567*060B#Z0000
TWSA336*075B#Z0000
TWSB117*075B#Z0000
TWSE477*075B#Z0000
TWSA156*100B#Z0000
TWSB686*100B#Z0000
TWSD157*100B#Z0000
TWSE227*100B#Z0000
TWSD826*125B#Z0000
TWSD107*125B#Z0000
TWSE157*125B#Z0000
All technical data relates to an ambient temperature of +25ºC. Capacitance and DF are measured at 120Hz, 0.5RMS with DC bias of 2.2V.
DCL is measured at rated voltage after 5 minutes.
NOTE: KYOCERA AVX reserves the rights to supply higher voltage rating in the same case size, to the same reliability standards.
120
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available
online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
061120
–
high reliability tantalum capacitors
–
