Features:
◆
◆
LEAD FINISH (SnPb) ARE IN EOL PROCESS - LAST TIME BUY EXPIRES JUNE 15, 2018
HIGH-SPEED 2.5V
IDT70T3539M
512K x 36
SYNCHRONOUS
DUAL-PORT STATIC RAM
WITH 3.3V OR 2.5V INTERFACE
– Data input, address, byte enable and control registers
– Self-timed write allows fast cycle time
Separate byte controls for multiplexed bus and bus
matching compatibility
Dual Cycle Deselect (DCD) for Pipelined Output Mode
2.5V (±100mV) power supply for core
LVTTL compatible, selectable 3.3V (±150mV) or 2.5V
(±100mV) power supply for I/Os and control signals on
each port
Includes JTAG functionality
Industrial temperature range (-40°C to +85°C) is
available at 133MHz
Available in a 256-pin Ball Grid Array (BGA)
Green parts available, see ordering information
◆
◆
◆
◆
◆
True Dual-Port memory cells which allow simultaneous
access of the same memory location
High-speed data access
– Commercial: 3.6ns (166MHz)/4.2ns (133MHz)(max.)
– Industrial: 4.2ns (133MHz) (max.)
Selectable Pipelined or Flow-Through output mode
Counter enable and repeat features
Dual chip enables allow for depth expansion without
additional logic
Interrupt and Collision Detection Flags
Full synchronous operation on both ports
– 6ns cycle time, 166MHz operation (12Gbps bandwidth)
– Fast 3.6ns clock to data out
– 1.5ns setup to clock and 0.5ns hold on all control, data, and
address inputs @ 166MHz
BE
3L
BE
2L
BE
1L
BE
0L
◆
◆
◆
◆
◆
◆
◆
◆

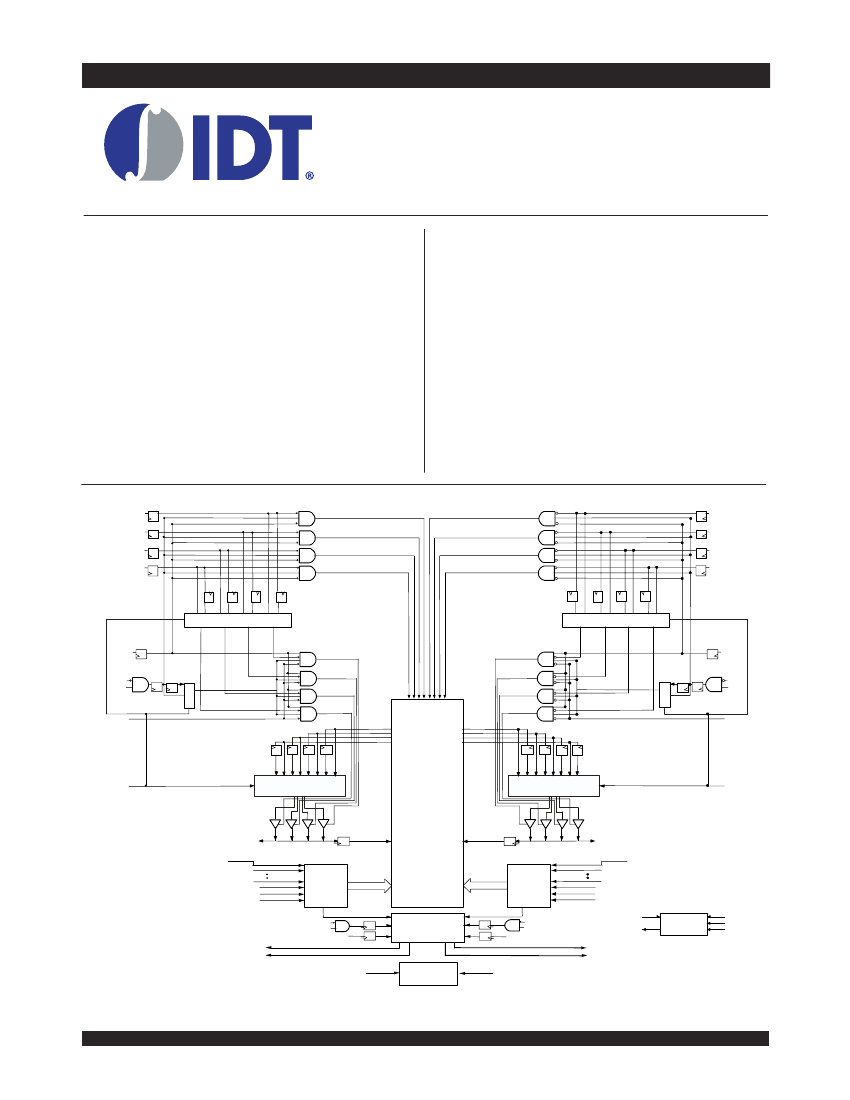

Functional Block Diagram
BE
3R
BE
2R
BE
1R
BE
0R
FT/PIPE
L
1/0
0a 1a
a
0b 1b
b
0c 1c
c
0d 1d
d
1d 0d
d
1c 0c
c
1b 0b
b
1a 0a
a
1/0
FT/PIPE
R
R/W
L
R/W
R
CE
0L
CE
1L
1
0
1/0
B B
WW
0 1
L L
B B B
WWW
2 3 3
L L R
B
W
2
R
B B
WW
1 0
R R
1
0
1/0
CE
0R
CE
1R
OE
L
OE
R
Dout0-8_L
Dout9-17_L
Dout18-26_L
Dout27-35_L
Dout0-8_R
Dout9-17_R
Dout18-26_R
Dout27-35_R
1d 0d 1c 0c 1b 0b 1a 0a
0a 1a 0b 1b 0c 1c 0d 1d
0/1
,
FT/PIPE
R
FT/PIPE
L
0/1
a bc d
dcba
512K x 36
MEMORY
ARRAY
I/O
0L
- I/O
35L
Din_L
Din_R
I/O
0R
- I/O
35R
CLK
L
A
18L
A
0L
REPEAT
L
ADS
L
CNTEN
L
A
18R
CLK
R
,
Counter/
Address
Reg.
ADDR_L
ADDR_R
Counter/
Address
Reg.
A
0R
REPEAT
R
ADS
R
CNTEN
R
TDI
TCK
TMS
TRST
CE
0 L
CE1 L
R/
W
L
INTERRUPT
COLLISION
DETECTION
LOGIC
CE
0 R
CE1R
R/
W
R
JTAG
TDO
COL
R
INT
R
COL
L
INT
L
ZZ
L
(1)
ZZ
CONTROL
LOGIC
ZZ
R
(1)
5678 drw 01
NOTE:
1. The sleep mode pin shuts off all dynamic inputs, except JTAG inputs, when asserted. All static inputs, i.e., PL/FTx and OPTx and
the sleep mode pins themselves (ZZx) are not affected during sleep mode.
FEBRUARY
2018
DSC 5678/9
1
©2018 Integrated Device Technology, Inc.
IDT70T3539M
High-Speed 2.5V 512K x 36 Dual-Port Synchronous Static RAM
Industrial and Commercial Temperature Ranges
The IDT70T3539M is a high-speed 512K x 36 bit synchronous Dual-
Port RAM. The memory array utilizes Dual-Port memory cells to allow
simultaneous access of any address from both ports. Registers on control,
data, and address inputs provide minimal setup and hold times. The timing
latitude provided by this approach allows systems to be designed with very
short cycle times. With an input data register, the IDT70T3539M has been
optimized for applications having unidirectional or bidirectional data flow
Description:
in bursts. An automatic power down feature, controlled by
CE
0
and CE
1,
permits the on-chip circuitry of each port to enter a very low standby power
mode.
The 70T3539M can support an operating voltage of either 3.3V or
2.5V on one or both ports, controllable by the OPT pins. The power supply
for the core of the device (V
DD
) is at 2.5V.
6.42
2
IDT70T3539M
High-Speed 2.5V 512K x 36 Dual-Port Synchronous Static RAM
Industrial and Commercial Temperature Ranges
Pin Configuration
(1,2,3,4)
70T3539M BC
BC-256
(5)
256-Pin BGA
Top View
(6)
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
10/07/03
A1
NC
B1
TDI
B2
NC
B3
A
17L
B4
A
14L
B5
A
11L
B6
A
8L
B7
BE
2L
B8
CE
1L
B9
OE
L
CNTEN
L
A
5L
B10
B11
B12
A
2L
B13
A
0L
B14
NC
B15
NC
B16
I/O
18L
C1
NC
C2
TDO
C3
A
18L
C4
A
15L
C5
A
12L
C6
A
9L
C7
BE
3L
C8
CE
0L
R/W
L
REPEAT
L
C9
C10
C11
A
4L
C12
A
1L
C13
V
DD
C14
I/O
17L
C15
NC
C16
I/O
18R
I/O
19L
D1
D2
V
SS
D3
A
16L
D4
A
13L
D5
A
10L
D6
A
7L
D7
BE
1L
BE
0L
CLK
L
ADS
L
D8
D9
D10
D11
A
6L
D12
A
3L
D13
OPT
L
I/O
17R
I/O
16L
D14
D15
D16
I/O
20R
I/O
19R
I/O
20L
PIPE/
FT
L
V
DDQL
V
DDQL
V
DDQR
V
DDQR
V
DDQL
V
DDQL
V
DDQR
V
DDQR
V
DD
I/O
15R
I/O
15L
I/O
16R
E1
E2
E3
E4
E5
E6
E7
E8
E9
E10
E11
E12
E13
E14
E15
E16
I/O
21R
I/O
21L
I/O
22L
V
DDQL
V
DD
F1
F2
F3
F4
F5
V
DD
F6
INT
L
F7
V
SS
F8
V
SS
F9
V
SS
F10
V
DD
F11
V
DD
V
DDQR
I/O
13L
I/O
14L
I/O
14R
F12
F13
F14
F15
F16
I/O
23L
I/O
22R
I/O
23R
V
DDQL
V
DD
G1
G2
G3
G4
G5
NC
G6
COL
L
V
SS
G7
G8
V
SS
G9
V
SS
G10
V
SS
G11
V
DD
V
DDQR
I/O
12R
I/O
13R
I/O
12L
G12
G13
G14
G15
G16
I/O
24R
I/O
24L
I/O
25L
V
DDQR
V
SS
H1
H2
H3
H4
H5
V
SS
H6
V
SS
H7
V
SS
H8
V
SS
H9
V
SS
H10
V
SS
H11
V
SS
H12
V
DDQL
I/O
10L
I/O
11L
I/O
11R
H13
H14
H15
H16
I/O
26L
I/O
25R
I/O
26R
V
DDQR
V
SS
J1
J2
J3
J4
J5
V
SS
J6
V
SS
J7
V
SS
J8
V
SS
J9
V
SS
J10
V
SS
J11
V
SS
J12
V
DDQL
I/O
9R
J13
J14
IO
9L
I/O
10R
J15
J16
I/O
27L
I/O
28R
I/O
27R
V
DDQL
ZZ
R
K1
K2
K3
K4
K5
V
SS
K6
V
SS
K7
V
SS
K8
V
SS
K9
V
SS
K10
V
SS
K11
ZZ
L
V
DDQR
I/O
8R
I/O
7R
I/O
8L
K12
K13
K14
K15
K16
I/O
29R
I/O
29L
I/O
28L
V
DDQL
V
SS
L1
L2
L3
L4
L5
V
SS
L6
V
SS
L7
V
SS
L8
V
SS
L9
V
SS
L10
V
SS
L11
V
SS
L12
V
DDQR
I/O
6R
I/O
6L
I/O
7L
L13
L14
L15
L16
I/O
30L
I/O
31R
I/O
30R
V
DDQR
V
DD
M1
M2
M3
M4
M5
NC
M6
COL
R
V
SS
M7
M8
V
SS
M9
V
SS
M10
V
SS
M11
V
DD
M12
V
DDQL
I/O
5L
I/O
4R
I/O
5R
M13
M14
M15
M16
I/O
32R
I/O
32L
I/O
31L
V
DDQR
N1
N2
N3
N4
V
DD
N5
V
DD
N6
INT
R
N7
V
SS
N8
V
SS
N9
V
SS
N10
V
DD
N11
V
DD
N12
V
DDQL
I/O
3R
I/O
3L
I/O
4L
N13
N14
N15
N16
I/O
33L
I/O
34R
I/O
33R
P IP E /
FT
R
V
DDQR
V
DDQR
V
DDQL
V
DDQL
V
DDQR
V
DDQR
V
DDQL
V
DDQL
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
V
DD
P13
I/O
2L
I/O
1R
I/O
2R
P14
P15
P16
I/O
35R
I/O
34L
TMS
R1
R2
R3
A
16R
R4
A
13R
R5
A
10R
R6
A
7R
R7
BE
1R
BE
0R
CLK
R
ADS
R
R8
R9
R10
R11
A
6R
R12
A
3R
R13
I/O
0L
I/O
0R
R14
R15
I/O
1L
R16
I/O
35L
T1
NC
T2
TRST
A
18R
T3
T4
A
15R
T5
A
12R
T6
A
9R
T7
BE
3R
CE
0R
R/W
R
REPEAT
R
A
4R
T8
T9
T10
T11
T12
A
1R
T13
OPT
R
T14
NC
T15
NC
T16
,
NC
TCK
NC
A
17R
A
14R
A
11R
A
8R
BE
2R
CE
1R
OE
R
CNTEN
R
A
5R
A
2R
A
0R
NC
NC
5678 drw 02d
NOTES:
1. All V
DD
pins must be connected to 2.5V power supply.
2. All V
DDQ
pins must be connected to appropriate power supply: 3.3V if OPT pin for that port is set to V
DD
(2.5V), and 2.5V if OPT pin for that port is
set to V
SS
(0V).
3. All V
SS
pins must be connected to ground supply.
4. Package body is approximately 17mm x 17mm x 1.4mm, with 1.0mm ball-pitch.
5. This package code is used to reference the package diagram.
6. This text does not indicate orientation of the actual part-marking.
,
6.42
3
IDT70T3539M
High-Speed 2.5V 512K x 36 Dual-Port Synchronous Static RAM
Industrial and Commercial Temperature Ranges
Pin Names
Left Port
CE
0L
,
CE
1L
R/W
L
OE
L
A
0L
- A
18L
I/O
0L
- I/O
35L
CLK
L
PL/FT
L
ADS
L
CNTEN
L
REPEAT
L
BE
0L
-
BE
3L
V
DDQL
OPT
L
ZZ
L
V
DD
V
SS
TDI
TDO
TCK
TMS
TRST
INT
L
COL
L
INT
R
COL
R
Right Port
CE
0R
,
CE
1R
R/W
R
OE
R
A
0R
- A
18R
I/O
0R
- I/O
35R
CLK
R
PL/FT
R
ADS
R
CNTEN
R
REPEAT
R
BE
0R
-
BE
3R
V
DDQR
OPT
R
ZZ
R
Names
Chip Enables (Input)
(5)
Read/Write Enable (Input)
Output Enable (Input)
Address (Input)
Data Input/Output
Clock (Input)
Pipeline/Flow-Through (Input)
Address Strobe Enable (Input)
Counter Enable (Input)
Counter Repeat
(3)
Byte Enables (9-bit bytes) (Input)
(5)
Power (I/O Bus) (3.3V or 2.5V)
(1)
(Input)
Option for selecting V
DDQX
(1,2)
(Input)
Sleep Mode pin
(4)
(Input)
Power (2.5V)
(1)
(Input)
Ground (0V) (Input)
Test Data Input
Test Data Output
Test Logic Clock (10MHz) (Input)
Test Mode Select (Input)
Reset (Initialize TAP Controller) (Input)
Interrupt Flag (Output)
Collision Alert (Output)
5678 tbl 01
NOTES:
1. V
DD
, OPT
X
, and V
DDQX
must be set to appropriate operating levels prior to
applying inputs on the I/Os and controls for that port.
2. OPT
X
selects the operating voltage levels for the I/Os and controls on that port.
If OPT
X
is set to V
DD
(2.5V), then that port's I/Os and controls will operate at 3.3V
levels and V
DDQX
must be supplied at 3.3V. If OPT
X
is set to V
SS
(0V), then that
port's I/Os and address controls will operate at 2.5V levels and V
DDQX
must be
supplied at 2.5V. The OPT pins are independent of one another—both ports can
operate at 3.3V levels, both can operate at 2.5V levels, or either can operate
at 3.3V with the other at 2.5V.
3. When
REPEAT
X
is asserted, the counter will reset to the last valid address loaded
via
ADS
X
.
4. The sleep mode pin shuts off all dynamic inputs, except JTAG inputs, when
asserted. All static inputs, i.e., PL/FTx and OPTx and the sleep mode pins
themselves (ZZx) are not affected during sleep mode. It is recommended that
boundry scan not be operated during sleep mode.
5. Chip Enables and Byte Enables are double buffered when PL/FT = V
IH
, i.e., the
signals take two cycles to deselect.
6.42
4
IDT70T3539M
High-Speed 2.5V 512K x 36 Dual-Port Synchronous Static RAM
Industrial and Commercial Temperature Ranges
Truth Table I—Read/Write and Enable Control
OE
X
X
X
X
X
X
X
X
X
X
L
L
L
L
L
L
L
H
X
CLK
↑
↑
↑
↑
↑
↑
↑
↑
↑
↑
↑
↑
↑
↑
↑
↑
↑
↑
X
CE
0
H
X
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
X
X
CE
1
X
L
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
X
X
BE
3
X
X
H
H
H
H
L
H
L
L
H
H
H
L
H
L
L
X
X
BE
2
X
X
H
H
H
L
H
H
L
L
H
H
L
H
H
L
L
X
X
BE
1
X
X
H
H
L
H
H
L
H
L
H
L
H
H
L
H
L
X
X
BE
0
X
X
H
L
H
H
H
L
H
L
L
H
H
H
L
H
L
X
X
R/W
X
X
X
L
L
L
L
L
L
L
H
H
H
H
H
H
H
X
X
ZZ
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
H
Byte 3
I/O
27-35
High-Z
High-Z
High-Z
High-Z
High-Z
High-Z
D
IN
High-Z
D
IN
D
IN
High-Z
High-Z
High-Z
D
OUT
High-Z
D
OUT
D
OUT
High-Z
High-Z
Byte 2
I/O
18-26
High-Z
High-Z
High-Z
High-Z
High-Z
D
IN
High-Z
High-Z
D
IN
D
IN
High-Z
High-Z
D
OUT
High-Z
High-Z
D
OUT
D
OUT
High-Z
High-Z
(1,2,3,4)
Byte 1
I/O
9-17
High-Z
High-Z
High-Z
High-Z
D
IN
High-Z
High-Z
D
IN
High-Z
D
IN
High-Z
D
OUT
High-Z
High-Z
D
OUT
High-Z
D
OUT
High-Z
High-Z
Byte 0
I/O
0-8
High-Z
High-Z
High-Z
D
IN
High-Z
High-Z
High-Z
D
IN
High-Z
D
IN
D
OUT
High-Z
High-Z
High-Z
D
OUT
High-Z
D
OUT
High-Z
High-Z
MODE
Deselected–Power Down
Deselected–Power Down
All Bytes Deselected
Write to Byte 0 Only
Write to Byte 1 Only
Write to Byte 2 Only
Write to Byte 3 Only
Write to Lower 2 Bytes Only
Write to Upper 2 bytes Only
Write to All Bytes
Read Byte 0 Only
Read Byte 1 Only
Read Byte 2 Only
Read Byte 3 Only
Read Lower 2 Bytes Only
Read Upper 2 Bytes Only
Read All Bytes
Outputs Disabled
Sleep Mode
5678 tbl 02
NOTES:
1. "H" = V
IH,
"L" = V
IL,
"X" = Don't Care.
2.
ADS, CNTEN, REPEAT
= X.
3.
OE
and ZZ are asynchronous input signals.
4. It is possible to read or write any combination of bytes during a given access. A few representative samples have been illustrated here.
Truth Table II—Address Counter Control
Address
An
X
X
X
Previous
Internal
Address
X
An
An + 1
X
Internal
Address
Used
An
An + 1
An + 1
An
CLK
↑
↑
↑
↑
ADS
L
(4)
H
H
X
CNTEN
X
L
(5)
H
X
REPEAT
(6)
H
H
H
L
(4)
I/O
(3)
D
I/O
(n)
D
I/O
(n+1)
D
I/O
(n+1)
D
I/O
(n)
(1,2)
MODE
External Address Used
Counter Enabled—Internal Address generation
External Address Blocked—Counter disabled (An + 1 reused)
Counter Set to last valid
ADS
load
5678 tbl 03
NOTES:
1. "H" = V
IH,
"L" = V
IL,
"X" = Don't Care.
2. Read and write operations are controlled by the appropriate setting of R/W,
CE
0
, CE
1
,
BEn
and
OE.
3. Outputs configured in flow-through output mode: if outputs are in pipelined mode the data out will be delayed by one cycle.
4.
ADS
and
REPEAT
are independent of all other memory control signals including
CE
0
, CE
1
and
BEn
5. The address counter advances if
CNTEN
= V
IL
on the rising edge of CLK, regardless of all other memory control signals including
CE
0
, CE
1
,
BEn.
6. When
REPEAT
is asserted, the counter will reset to the last valid address loaded via
ADS.
This value is not set at power-up: a known location should be loaded
via
ADS
during initialization if desired. Any subsequent
ADS
access during operations will update the
REPEAT
address location.
6.42
5
京公网安备 11010802033920号
EEWORLD
