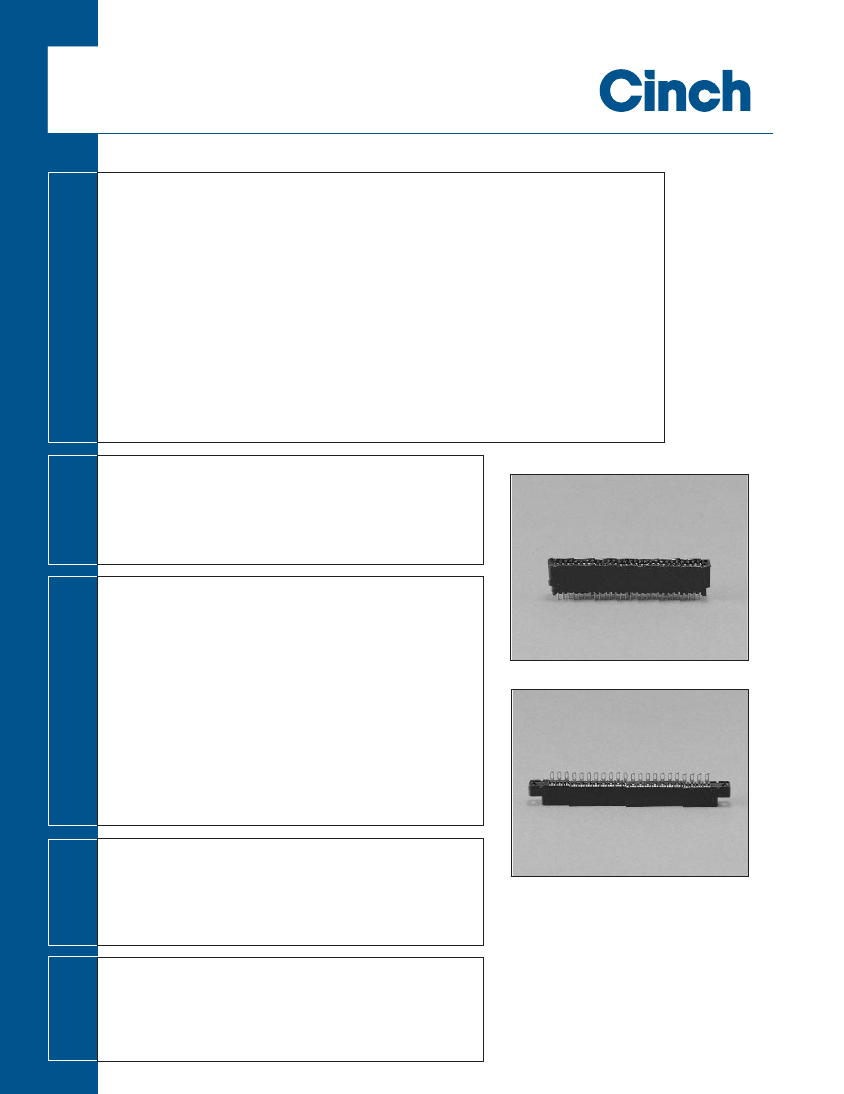

CARDCON
™
Edge Connector
Commercial
.156" (3.96mm) Density
Dip Solder/Solder Eyelet
F
EATURES
M
ATERIALS
E
NVIRONMENTAL
E
LECTRICAL
■
Dip solder tails single readout and double readout on .140" (3.56mm) row
centers or .200" (5.08mm) row centers.
■
Solder eyelet, single readout and double readout on .200" (5.08mm)
row centers.
■
Available with unique tails for PC board retention; holds the connector
firmly on the board during wave soldering operations.
■
Bifurcated semi-bellows contacts for added contact reliability.
■
Ideal for applications involving vibration or board irregularities.
■
Contact positions: 6, 10, 12, 15, 18, 22, 24, and 25.
■
Accepts single- or double-sided .062" (1.59mm) thick PC boards.
■
Available less mounting ears or with .128" (3.25mm) mounting hole.
■
Meets applicable performance criteria of MIL-C-21097.
■
UL Recognized - file E170218 (UL1977) E130965 (UL1863).
Insulation Material:
UL 94V-0 rated glass-filled polyester, black
Contact Material:
Spring brass
Contact Plating:
10µ" selective gold over 30µ" nickel in contact
area, tin on tails
Shock:
Per MIL-STD-202E, Method 213, Condition C
Operating Temperature:
-65°C to +105°C
Vibration:
Per MIL-STD-202E, Method 204, Condition B
Humidity:
Per MIL-STD-202, Method 103, Condition B
Accessories:
Polarizing Key:
Two types (order separately):
a) for between-contact polarization and
b) for in-contact polarization
See page 2-72 for more information.
Card Guide Posts:
(order separately):
Attach to mounting ears and guide PC board into connector
See page 2-72 for more information.
Withstanding Voltage:
Current Rating:
Contact Resistance:
Insulation Resistance:
1800 VAC RMS (@ sea level)
5 Amps
6 Milliohms maximum
5000 Megohms minimum
M
ECHANICAL
Individual Contact Insertion and Separation Force:
16 oz. maximum with .070" (1.78mm) blade;
1 oz. minimum with .054" (1.37mm) blade
Marketed exclusively through distribution.
Call Toll Free: 1 (800) 323-9612
2-64
CARDCON
™
Edge Connector
Commercial
[.050” (1.27mm) Density
.156" (3.96mm) Density
Solder Cup/Wire
Dip Solder/Solder Eyelet
D-Microminiature]
2

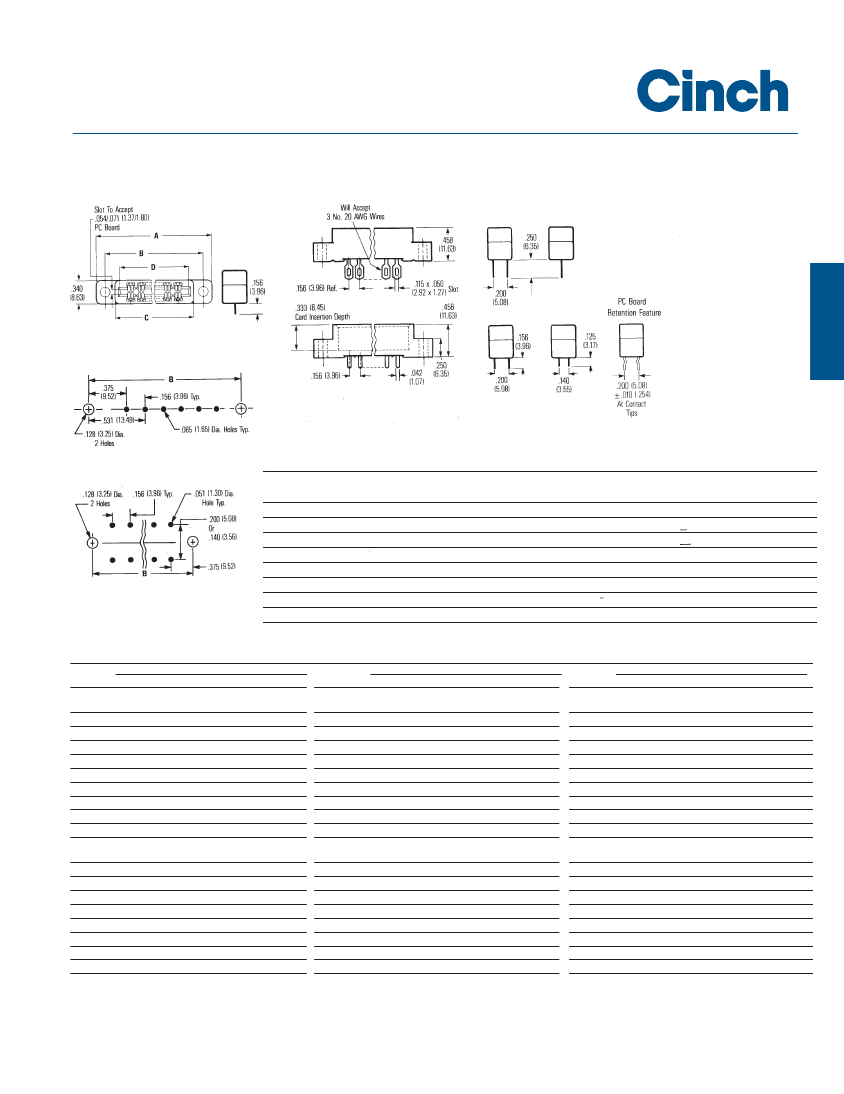

Dimensions
No. of
Pos./Cont.
6/12
10/20
12/24
15/30
18/36
22/44
24/48
25/50
A
In
1.785
2.410
2.723
3.191
3.660
4.285
4.598
4.754
mm
45.34
61.21
69.16
81.05
92.96
108.84
116.79
120.75
B
in
mm
1.531
38.89
2.156
54.76
2.469
62.71
2.937
74.60
3.406
86.51
4.031 102.39
4.344 110.34
4.500 114.30
in
1.239
1.874
2.177
2.645
3.114
3.739
4.052
4.208
C
mm
31.47
47.34
55.30
67.18
79.10
94.94
102.92
106.88
in
1.100
1.724
2.036
2.504
2.972
3.596
3.911
4.067
D
mm
27.94
43.79
51.71
63.60
75.49
91.34
99.34
103.30
Ordering Information
No. of
Less Mounting Ears .128 Mounting Hole
Pos./Cont. Catalog No.
Catalog No.
Solder eyelet, single readout
No. of
Less Mounting Ears .128 Mounting Hole
Pos./Cont. Catalog No.
Catalog No.
Dip solder tails, single readout, .156" (3.96mm)
long
No. of
Less Mounting Ears .128 Mounting Hole
Pos./Cont. Catalog No.
Catalog No.
Dip solder tails, double readout, .140" (3.55mm) row
spacing, .125" (3.18mm) long
6/6
10/10
12/12
15/15
18/18
22/22
24/24
25/25
50-6SN-8
50-10SN-8
50-12SN-8
50-15SN-8
50-18SN-8
50-22SN-8
50-24SN-8
50-25SN-8
50-6SN-7
50-10SN-7
50-12SN-7
50-15SN-7
50-18SN-7
50-22SN-7
50-24SN-7
50-25SN-7
6/6
10/10
12/12
15/15
18/18
22/22
24/24
25/25
50-6SN-6
50-10SN-6
50-12SN-6
50-15SN-6
50-18SN-6
50-22SN-6
50-24SN-6
50-25SN-6
50-6SN-5
50-10SN-5
50-12SN-5
50-15SN-5
50-18SN-5
50-22SN-5
20-24SN-5
50-25SN-5
6/12
10/20
12/24
15/30
18/36
22/24
24/48
25/50
50-12SN-4
50-20SN-4
50-24SN-4
50-30SN-4
50-36SN-4
50-44SN-4
50-48SN-4
50-50SN-4
50-12SN-2
50-20SN-2
50-24SN-2
50-30SN-2
50-36SN-2
50-44SN-2
50-48SN-2
50-50SN-2
Solder eyelet, double readout, .200" (5.08mm)
row spacing
Dip solder tails, double readout, .200" (5.08mm)
row spacing, .156" (3.96mm) long
Dip solder tails with unique board retention feature
.200" (5.08mm) row spacing, .156" (3.96mm) long
6/12
10/20
12/24
15/30
18/36
22/24
24/28
25/50
50-12SN-10
50-20SN-10
50-24SN-10
50-30SN-10
50-36SN-10
50-44SN-10
50-48SN-10
50-50SN-10
50-12SN-9
50-20SN-9
50-24SN-9
50-30SN-9
50-36SN-9
50-44SN-9
50-48SN-9
50-50SN-9
6/12
10/20
12/24
15/30
18/36
22/44
24/48
25/50
50-12SN-3
50-20SN-3
50-24SN-3
50-30SN-3
50-36SN-3
50-44SN-3
50-48SN-3
50-50SN-3
50-12SN-1
50-20SN-1
50-24SN-1
50-30SN-1
50-36SN-1
50-44SN-1
50-48SN-1
50-50SN-1
6/12
10/20
12/24
15/30
18/36
22/44
24/48
25/50
50-12SN-3R
50-20SN-3R
50-24SN-3R
50-30SN-3R
50-36SN-3R
50-44SN-3R
50-48SN-3R
50-50SN-3R
50-12SN-1R
50-20SN-1R
50-24SN-1R
50-30SN-1R
50-36SN-1R
50-44SN-1R
50-48SN-1R
50-50SN-1R
Marketed exclusively through distribution.
2-65
Call Toll Free: 1 (800) 323-9612
