LCA10150T06QY: DescriptionSNAP ACTING/LIMIT SWITCH, SPST, MOMENTARY, 4.67mm, PANEL MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size156KB，4 Pages; ManufacturerC&K Components; Environmental Compliance

Download Datasheet Parametric View All

LCA10150T06QY Overview

SNAP ACTING/LIMIT SWITCH, SPST, MOMENTARY, 4.67mm, PANEL MOUNT, ROHS COMPLIANT

LCA10150T06QY Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1036532334
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	8.4
Actuator stroke	4.67 mm
Actuator type	LEVER
body width	6.4 mm
body height	10.6 mm
Body length or diameter	19.8 mm
Contact (AC) maximum rated R load	10.1A@250VAC
Maximum contact current (AC)	10.1 A
Maximum contact voltage (AC)	250 V
Electrical life	10000 Cycle(s)
Manufacturer's serial number	LCA
Installation features	PANEL MOUNT
Maximum operating force	1.47 N
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum pre-travel	4 mm
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

LCA Series

Subminiature Snap-acting Switches

Features/Benefits

•

Compact design

•

Long life and high electrical capacity

•

Quick connect, solder terminals, PC terminals

•

Wide variety of actuator styles

•

RoHS compatible

UL61058-1

Typical Applications

•

Motorized equipment

•

Sump pump

•

Thermostatic controls

Specifications

CONTACT RATING: From low level to 10.1 AMPS @ 125/250 V AC

ELECTRICAL LIFE: see chart below

MECHANICAL LIFE: 300,000 cycles.

INSULATION RESISTANCE: 100 M ohm min.

DIELECTRIC STRENGTH: 1,500 Vrms min. @ sea level.

OPERATING TEMPERATURE: –40ºC to +125ºC

OPERATING FORCE: 150 grams at actuator button MAX.

Forces are less at free end of lever actuators; (see ACTUATOR’S

option sections).

MOUNTING: 2-56 screws, torque 2.3 in/lbs max.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service center.

Materials

SWITCH HOUSING: Thermoplastic polyester

ACTUATOR BUTTON: Thermoplastic polyester.

SPRING: Copper alloy.

PIVOT: Copper alloy.

MOVABLE CONTACTS: Silver alloy

STATIONARY CONTACTS: Silver alloy

TERMINALS: Copper alloy.

ACTUATOR LEVER: Stainless steel.

Snap-acting

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages J-36 thru J-39. For additional options not shown in catalog, consult Customer Service Center.

Series

LCA

SP, Mom.

Electrical Rating

Operating Force

150

150 grams

Option

Code

1054

0.1 A 125/250 V AC

1E4

6 A 125/250 V AC

1E4

10.1 A 125/250 V AC

1E4

61058-1

0.1 A 125/250 V AC

1E4

6 A 125/250 V AC

1E4

10.1 A 125/250 V AC

1E4

5 A 125/250 V AC

1E5

0.1 A 125/250 V AC

1E4

6 (2)A 125/250 V AC

1E4

10.1 A 125/250 V AC

1E4

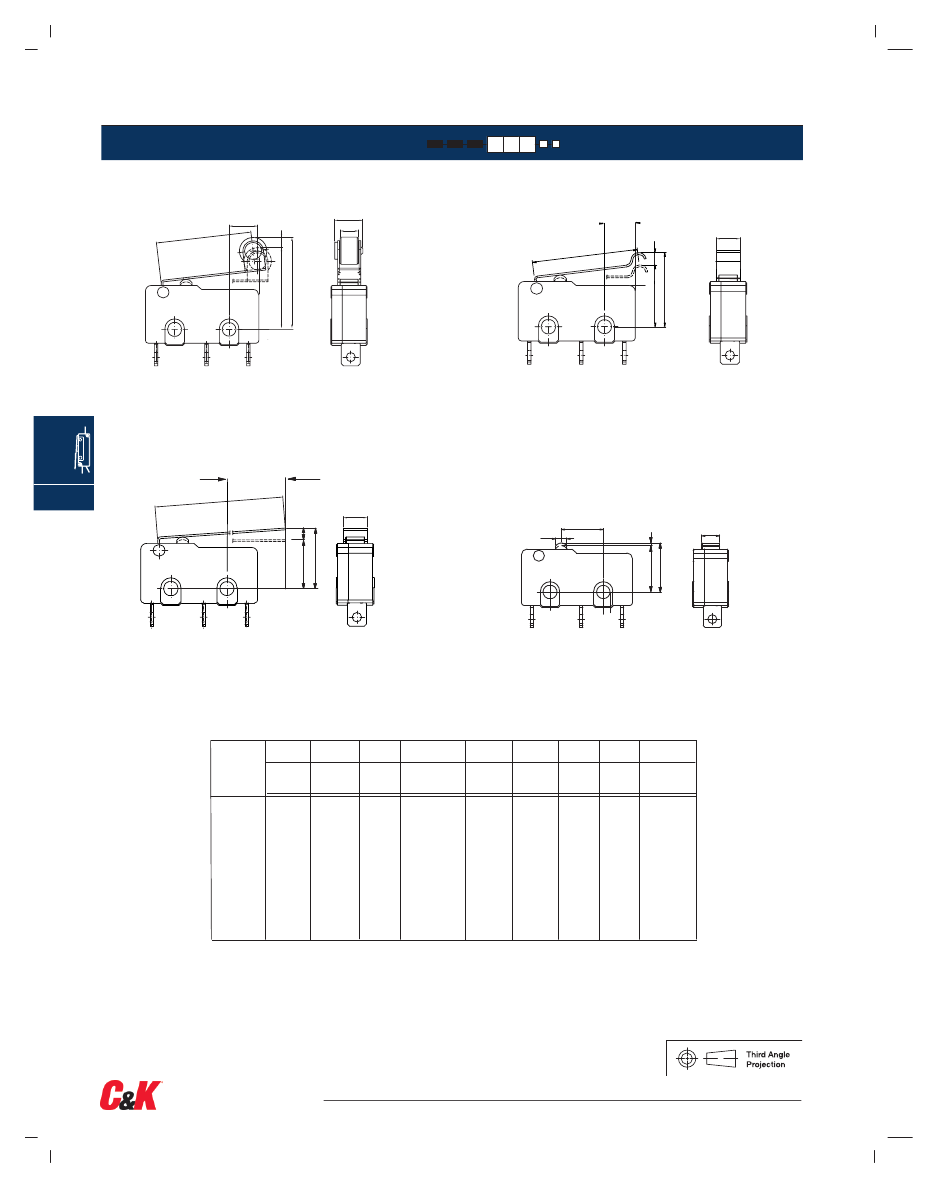

Actuator

P00

Pin plunger

T05

4.8 mm short lever

T06

6.8 mm lever

T09

8.8 mm lever

T12

12.9 mm lever

T16

15.2 mm lever

T18

18.1 mm lever

T21

20.1 mm lever

T23

23.4 mm lever

T43

43.5 mm lever

S06

6.0 mm simulated lever

S09

9.2 mm simulated lever

A05

5.0 mm lever roller

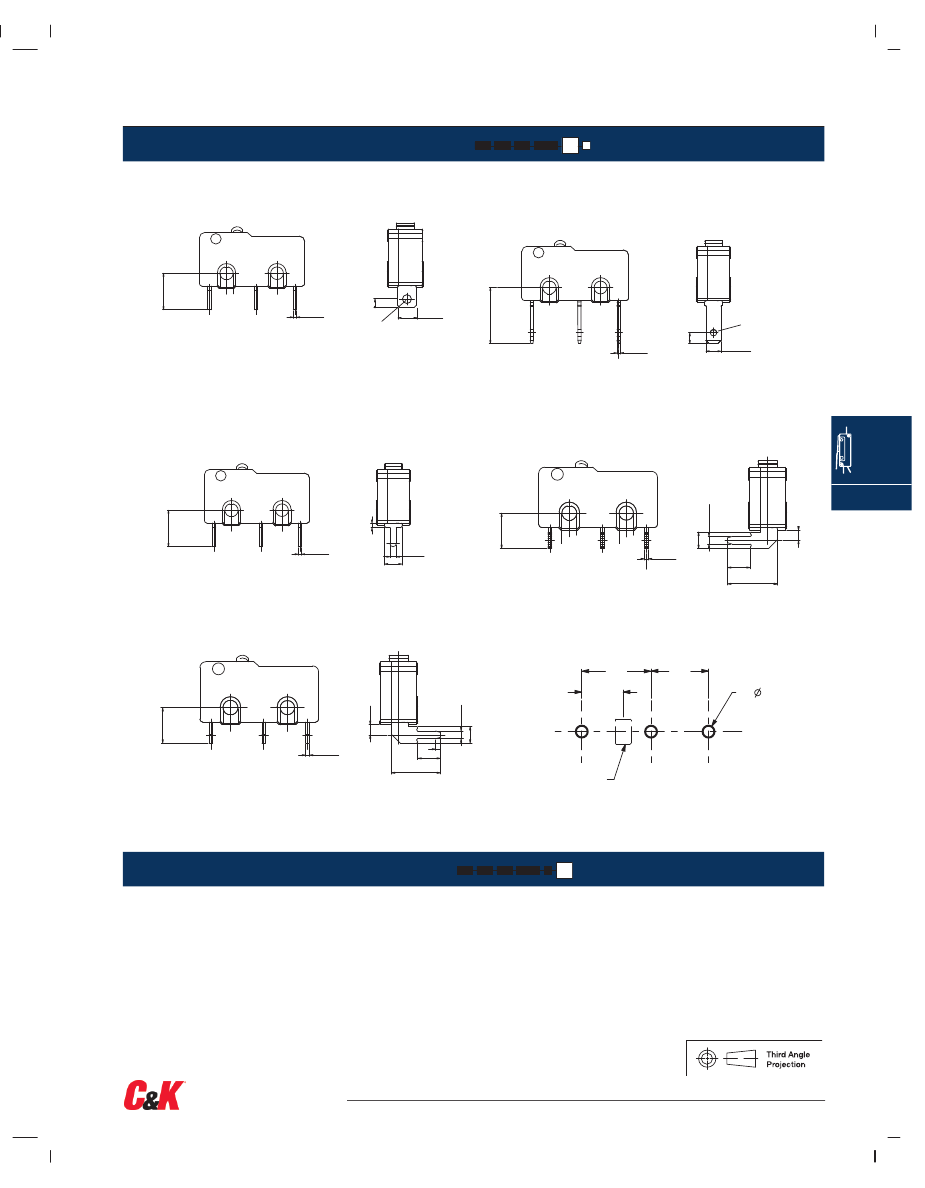

Terminations

Solder

.110 Quick Connect

PC Thru Hole

Left Form PC

Right Form PC

Circuitry

SPDT

SPST N.C.

SPST N.O.

Dimensions are shown: mm

Specifications and dimensions subject to change

J–36

www.ck-components.com
