CED-1-A-30-A3-B1-7-SG3-R3-PF datasheet, PDF

Datasheet> All Categories > The connector> The connector> CED-1-A-30-A3-B1-7-SG3-R3-PF

CED-1-A-30-A3-B1-7-SG3-R3-PF: DescriptionBoard Euro Connector, 30 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Hole .099-.111, Receptacle; CategoryThe connector The connector; File Size142KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CED-1-A-30-A3-B1-7-SG3-R3-PF Overview

Board Euro Connector, 30 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Hole .099-.111, Receptacle

CED-1-A-30-A3-B1-7-SG3-R3-PF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304471566
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	7.7
Other features	ROHS COMPLIANT
body width	0.437 inch
subject depth	0.457 inch
body length	1.567 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	HOLE .099-.111
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	30

CED-1-A-30-A3-B1-7-SG3-R3-PF Preview

• All mounting types available with boardlocks (BL)

• Straight (A mount) type available in press fit (PF)

• All types available with first mate last break (FMLB)

SPECIFICATIONS

Current rating:

Contact material:

Contact resistance:

Housing material:

Insulation resistance:

Withstanding:

Operating temperature:

2 amps

Brass

30 milliohms max. at 100 milliamps DC

PBT, 30% glass filled, UL94V-0

1,000 megohms min. at 500VDC

1,000VAC for 1 min.

-55°C to +105°C

Series

Gender

Mounting

Contacts Pin Length

Pitch

CED

DIN41612 1-A=Male straight

10, 20, 30 A1=4.0mm B1=2.54mm

2-B=Female right angle (see chart) A2=2.5mm

A3=13mm

(str only)

A4=17mm

(str only)

Loaded Rows

Plating

SGX

1=A 5=A, C

SG=Selective gold

2=B 7=A, B, C 1=30µ” (Level 1)

4=A, B

2=10-20µ” (Level 2)

3=Flash (Level 3)

Pitch

2.54mm

Position

Rows with

contacts

a b c

a b -

a - -

Type

Options

R3 type [Blank]=None

(See also PF=Press fit

C, B, Q) BL=Boardlocks

HT=High temp. material

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

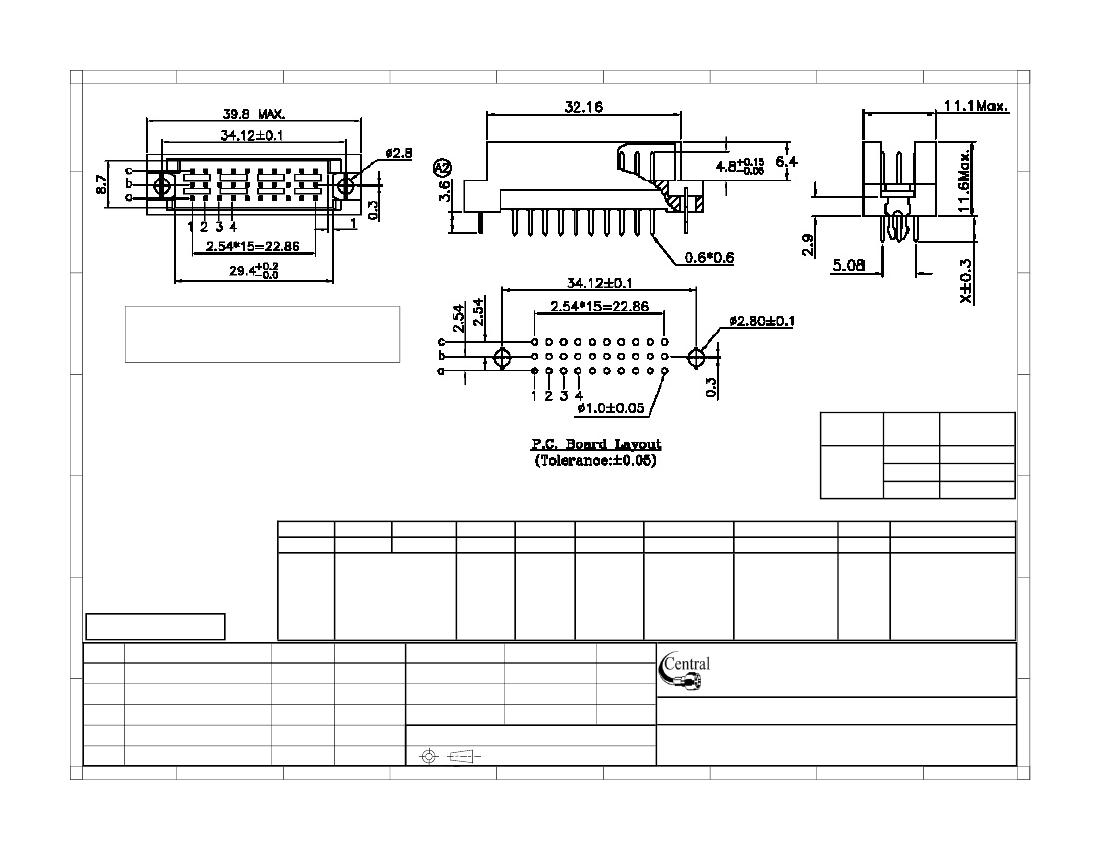

CED-1-A-XX-XX-B1-X-SGX-R3-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: DIN 41612, R3 type, male

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
