CED-2-A-32-A3-B1-4-SG3-B2: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Hole .099-.111, Plug; CategoryThe connector The connector; File Size141KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CED-2-A-32-A3-B1-4-SG3-B2 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Hole .099-.111, Plug

CED-2-A-32-A3-B1-4-SG3-B2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304472523
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	7.7
Other features	ROHS COMPLIANT
body width	0.413 inch
subject depth	0.457 inch
body length	2.165 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRASS
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	HOLE .099-.111
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	32

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

C

D

E

SPECIFICATIONS

Current rating:

Contact material:

Contact resistance:

Housing material:

Insulation resistance:

Withstanding:

Operating temperature:

RoHS compliant

2 amps

Brass

30 milliohms max. at 100 milliamps DC

• All mounting types available with boardlocks (BL)

PBT, 30% glass filled, UL94V-0

• Straight (A mount) type available in press fit (PF)

1,000 megohms min. at 500VDC

• All types available with first mate last break (FMLB)

1,000VAC for 1 min.

-55°C to +105°C

Series

Gender Mounting Contacts

Pin Length

Pitch

Loaded Rows

Plating

CED

X

XX

X

SGX

DIN41612 1-B=Male right angle 16, 32, 64 A1=4.0mm

B1=2.54mm 1=A

SG=Selective gold

2-A=Female straight (see chart) A2=2.5mm

B2=5.08mm 2=B

1=30µ” (Level 1)

A3=13mm (str only)

4=A & B

2=10-20µ” (Level 2)

A4=17mm (str only)

3=Flash (Level 3)

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Pitch

2.54mm

5.08mm

Position

32

16

8

Rows with

contacts

a b

a

a b

a

D

E

F

Type

Options

B2

XX

B2=B2 type [Blank]=None

(See also B, PF=Press fit

Q & R)

BL=Boardlocks

HT=High temp. material

F

Rev.

Description

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

CED-2-A-XX-XX-XX-X-SGX-B2-XX

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

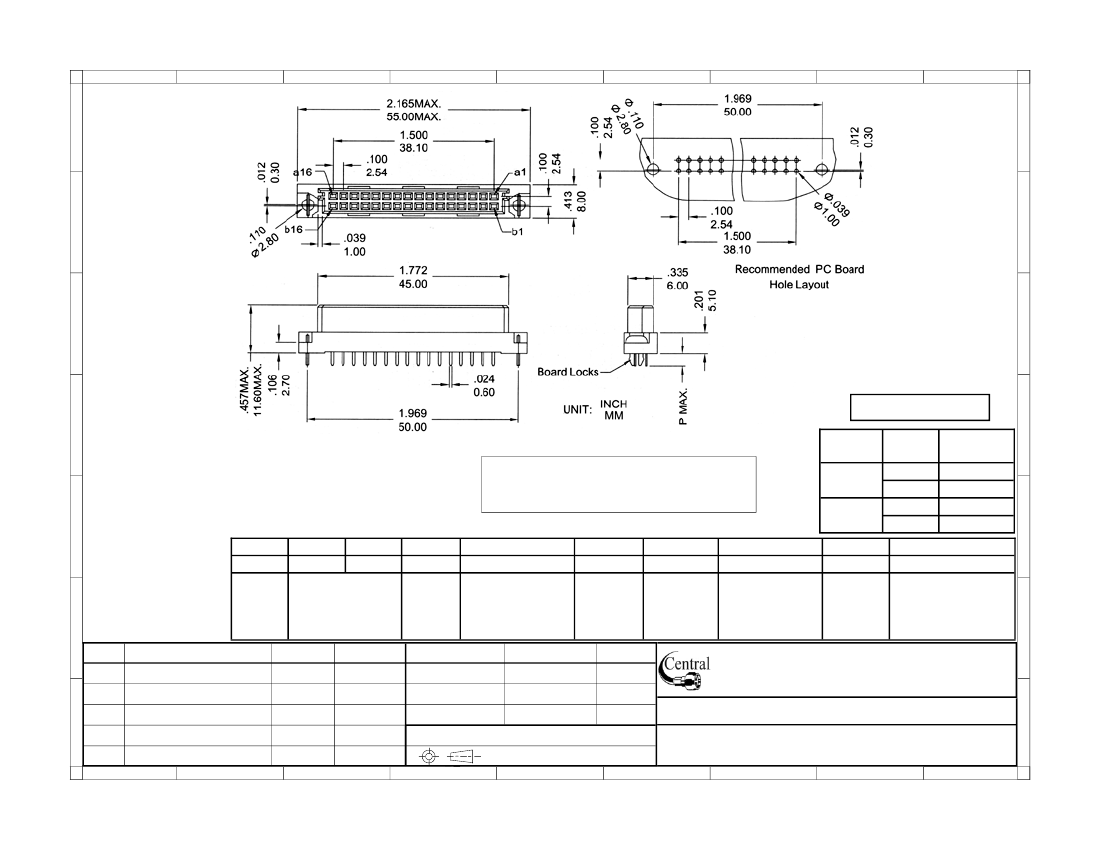

Description: DIN 41612, B2 type, female

G

1

2

3

4
