GCTJ-08-4-C1LO-8-BK-P1-S-PG6: DescriptionTelecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

GCTJ-08-4-C1LO-8-BK-P1-S-PG6 Overview

Telecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

GCTJ-08-4-C1LO-8-BK-P1-S-PG6 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1308554442
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.591 inch
subject depth	0.62 inch
body length	2.51 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
empty shell	NO
Filter function	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
JESD-609 code	e4
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	PHOSPHOR BRONZE
Terminal length	0.1 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

(C)

(E)

B

(A)

B

PCB Layout (Ref.)

B

C

D

(C)

C

D

E

No. of

Dimensions

ports

A

B

C

1

16.50

12.70

2

32.26 15.75 28.45

4

63.76 47.25 59.94

6

95.26 78.75 91.46

8

126.76 110.25 122.94

Series

Positions

Ports

Body Style

LED

Contacts

Color

GCTJ

XX

X

C1

LXX

X

Modular 06=6 pos. 1, 2, 4, 6, 8 Side entry See LED table 4, 6, 8

ganged 08=8 pos. (see port with LEDs

jack

list)

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

D

E

2.54 16.26

2.67 32.00

2.67 63.50

2.67 95.01

2.67 126.51

Plating

Code

[LXX omitted]

R

G

Y

O

A

D

W

P

K

LED (XX=left-right)

No LEDs

Red

Green

Yellow

Orange

Amber

Red/Green

Yellow/Green

Orange/Green

No LED

D

E

F

RoHS compliant

Rev.

Description

Panel

Grounds

XX

PX

X

PGX

BK=Black P1=15µ” gold [blank]=None [omitted]=None

P2=30µ” gold S=Full shield 2=Top

P3=50µ” gold

4=Sides

6=Top & sides

Options

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

F

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

GCTJ-08-4-C1LXX-X-BK-PX-S-PG6

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

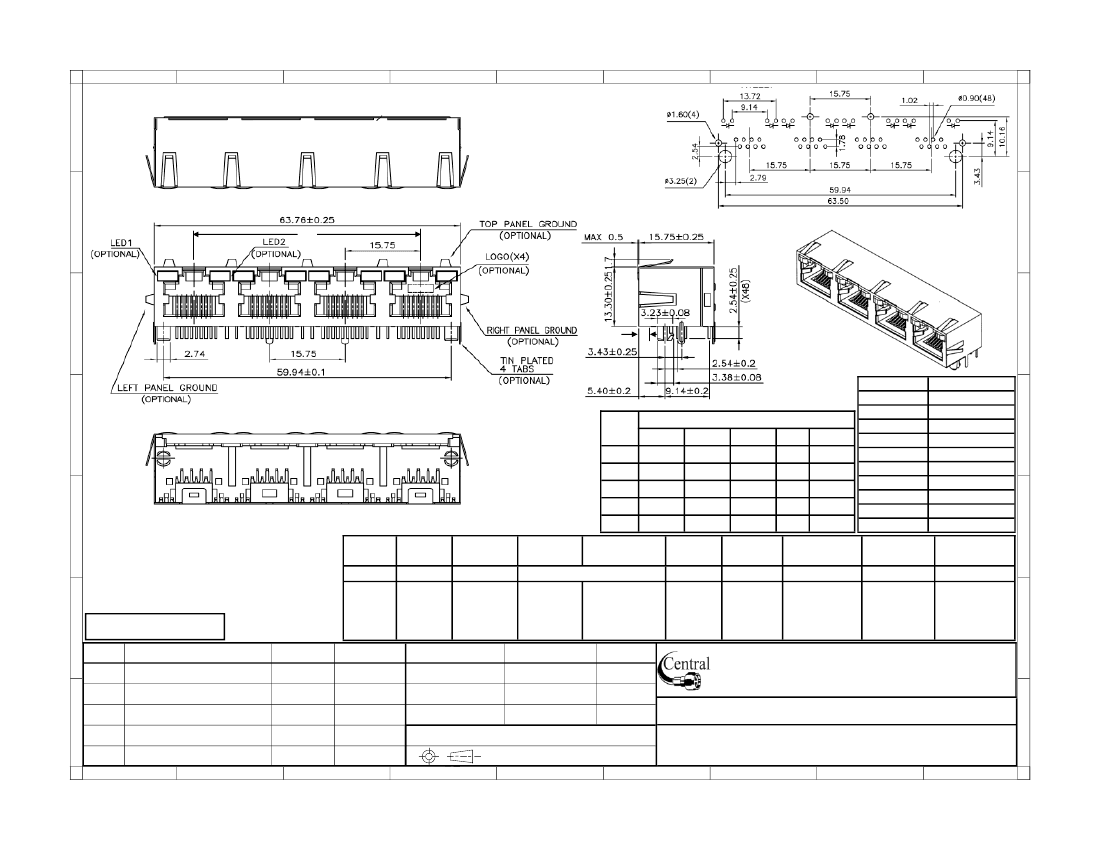

Description: Multiport modular jack with LED, type C1, shielded
