LHD-B-26-SM-SL-GD10 datasheet, PDF

Datasheet> All Categories > The connector> The connector> LHD-B-26-SM-SL-GD10

LHD-B-26-SM-SL-GD10: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size133KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

LHD-B-26-SM-SL-GD10 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle

LHD-B-26-SM-SL-GD10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1295080463
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
YTEOL	8.4
Other features	ROHS COMPLIANT
body width	0.232 inch
subject depth	0.402 inch
body length	1.65 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
IEC compliance	NO
Insulation resistance	3000000000 Ω
insulator material	POLYAMIDE
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation option 2	SHORT LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0546 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	26

Preview

Download Datasheet

View All

RoHS compliant

Rev.

Description

Pos.

10.0

12.0

14.0

16.0

20.0

22.0

24.0

26.0

30.0

32.0

34.0

40.0

44.0

50.0

60.0

Date

25.9

27.9

29.9

31.9

35.9

37.9

39.9

41.9

45.9

47.9

49.9

55.9

59.9

65.9

75.9

8.0

10.0

12.0

14.0

18.0

20.0

22.0

24.0

28.0

30.0

32.0

38.0

42.0

48.0

58.0

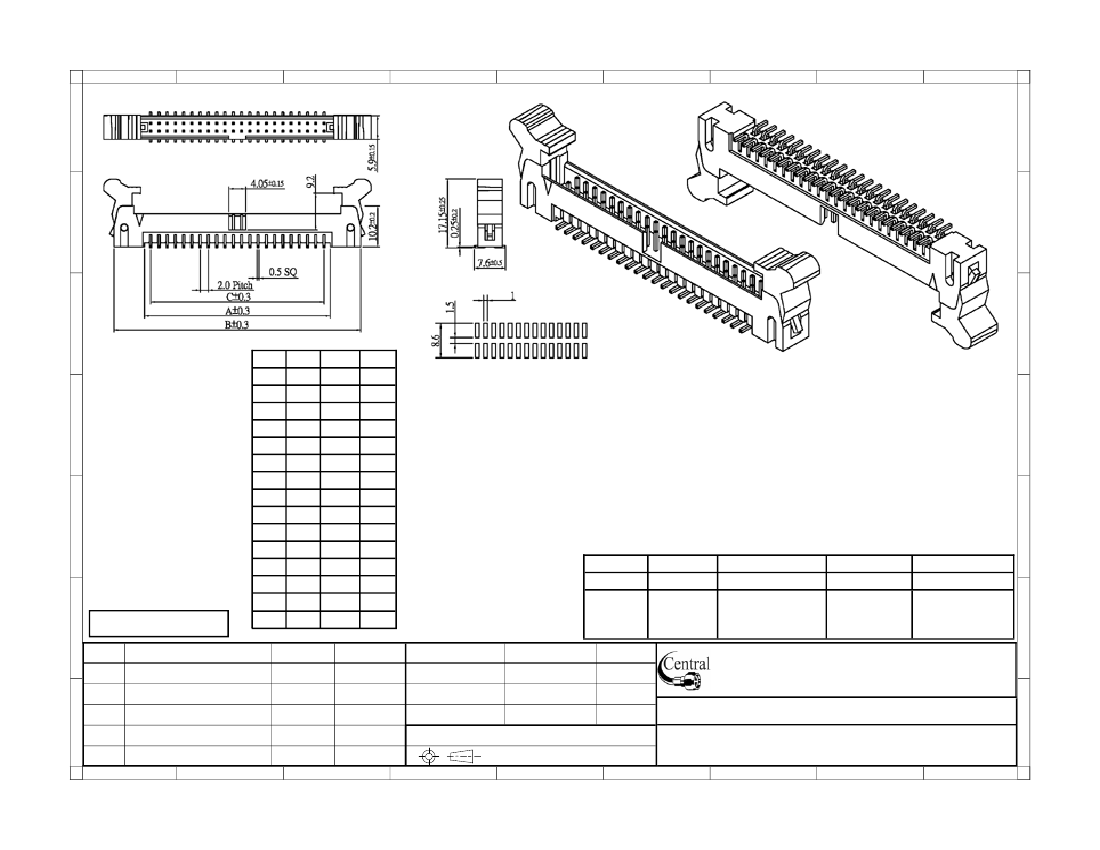

PC Board Layout

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulator resistance:

Withstanding:

Operating temp.:

1 amp

Brass

Gold or gold flash over nickel

30 milliohms max.

Nylon 9T, UL 94V-0

3,000 megohms min.

500 VAC/1 min.

-40°C to +105°C

Series

Positions

Mounting

Latch

Plating

LHD-B

2mm latch 10-60 (See SM=Surface mount SL=Short latch GDXX=Gold

header

chart)

RA=Right angle

LL=Long latch XX=Flash if blank;

ST=Straight

05, 10, 15, 30µ”

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

8/10/99

Approved

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

Part No.:

LHD-B-XX-SM-XX-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Box header, surface mount with latches
