2541S50U001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2541S50U001

2541S50U001: DescriptionCard Edge Connector, 50 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking Mech, Black Insulator; CategoryThe connector The connector; File Size118KB，2 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric Compare View All

2541S50U001 Overview

Card Edge Connector, 50 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking Mech, Black Insulator

2541S50U001 Parametric

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
Other features	WITH STRAIN RELIEF
body width	0.39 inch
subject depth	0.677 inch
body length	2.882 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2541S
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING MECH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	50
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

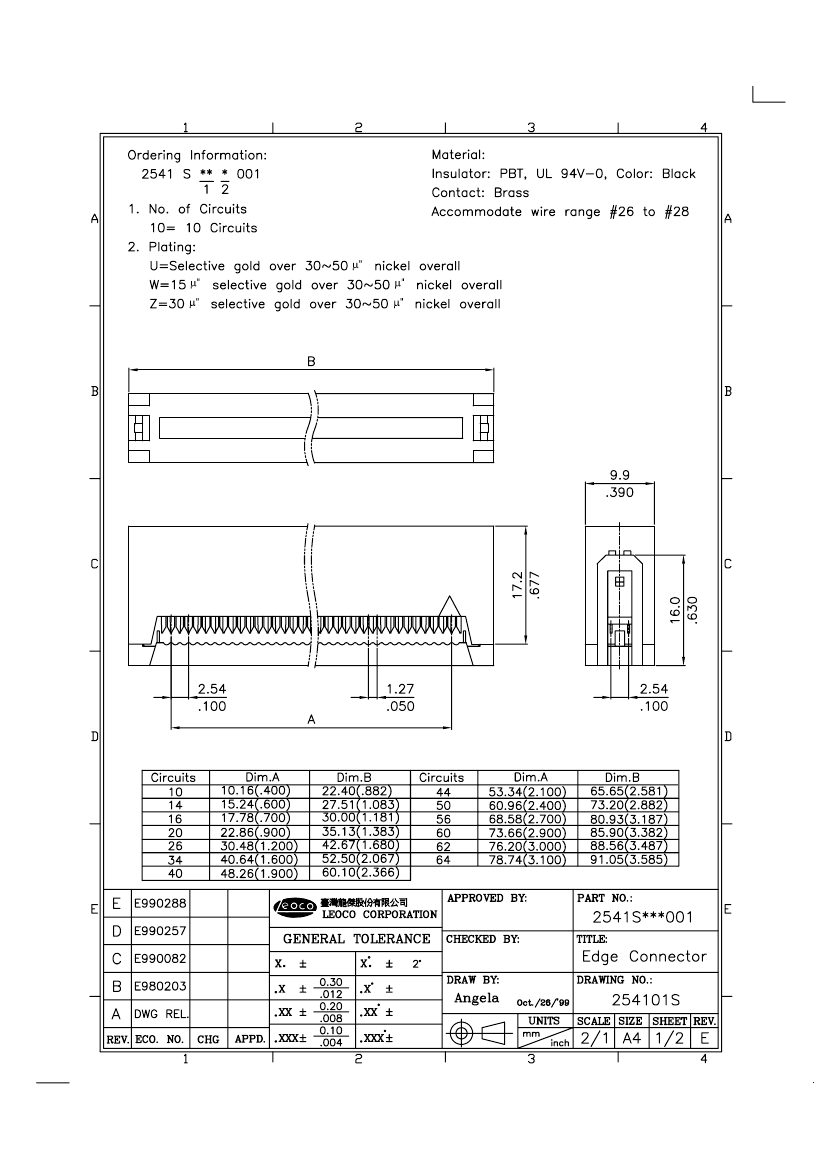

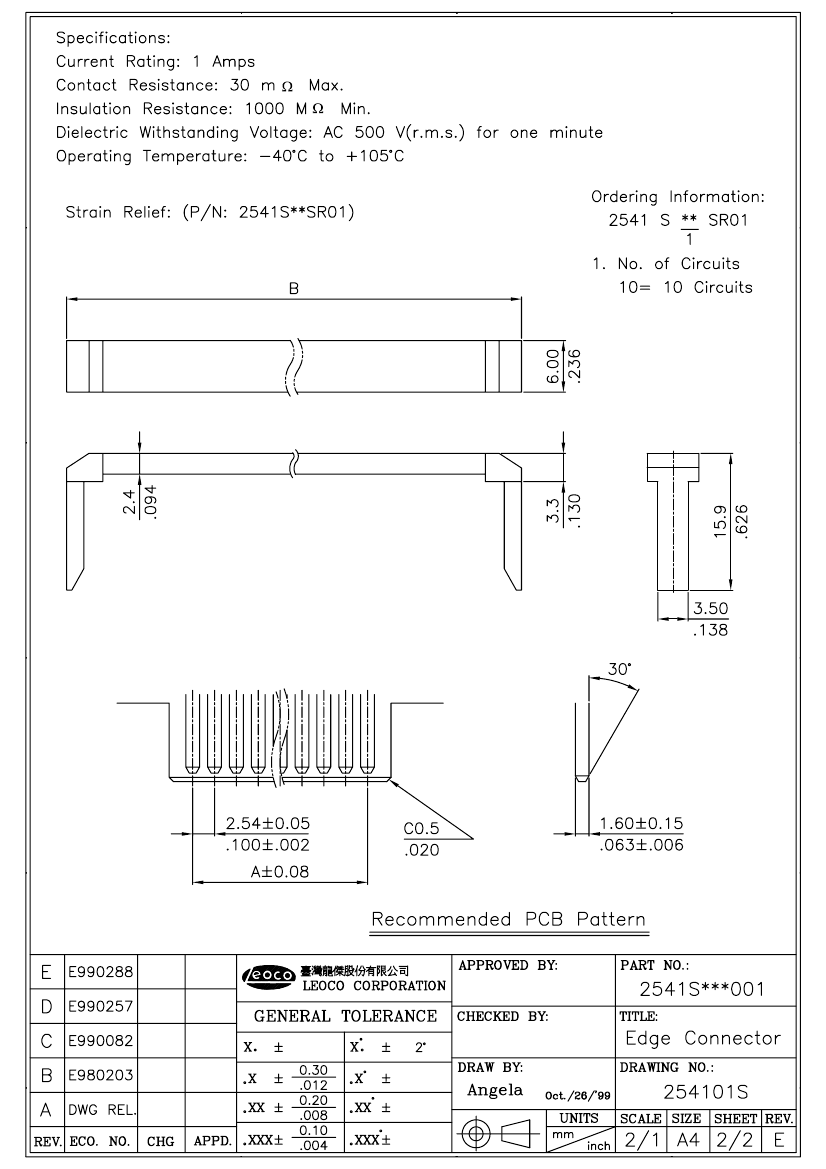

Preview

Download Datasheet

View All

2541S50U001 Related Products

	2541S50U001	2541S34W001	2541S26U001	2541S34Z001	2541S40Z001	2541S40W001	2541S26Z001	2541S26W001	2541S34U001	2541S40U001
Description	Card Edge Connector, 50 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking Mech, Black Insulator	Card Edge Connector, 34 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking Mech, Black Insulator	Card Edge Connector, 26 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking Mech, Black Insulator	Card Edge Connector, 34 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking Mech, Black Insulator	Card Edge Connector, 40 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking Mech, Black Insulator	Card Edge Connector, 40 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking Mech, Black Insulator	Card Edge Connector, 26 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking Mech, Black Insulator	Card Edge Connector, 26 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking Mech, Black Insulator	Card Edge Connector, 34 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking Mech, Black Insulator	Card Edge Connector, 40 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking Mech, Black Insulator
Maker	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH STRAIN RELIEF	WITH STRAIN RELIEF	WITH STRAIN RELIEF	WITH STRAIN RELIEF	WITH STRAIN RELIEF	WITH STRAIN RELIEF	WITH STRAIN RELIEF	WITH STRAIN RELIEF	WITH STRAIN RELIEF	WITH STRAIN RELIEF
body width	0.39 inch	0.39 inch	0.39 inch	0.39 inch	0.39 inch	0.39 inch	0.39 inch	0.39 inch	0.39 inch	0.39 inch
subject depth	0.677 inch	0.677 inch	0.677 inch	0.677 inch	0.677 inch	0.677 inch	0.677 inch	0.677 inch	0.677 inch	0.677 inch
body length	2.882 inch	2.067 inch	1.68 inch	2.067 inch	2.366 inch	2.366 inch	1.68 inch	1.68 inch	2.067 inch	2.366 inch
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2541S	2541S	2541S	2541S	2541S	2541S	2541S	2541S	2541S	2541S
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	50	34	26	34	40	40	26	26	34	40
Maximum wire diameter	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Base Number Matches	1	1	1	1	1	1	1	-	-	-
Plating thickness	-	15u inch	-	30u inch	30u inch	15u inch	30u inch	15u inch	-	-
