FST6445A: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 45V V(RRM), Silicon, ROHS COMPLIANT, MINIMOD-3; CategoryDiscrete semiconductor diode; File Size142KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

FST6445A Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 45V V(RRM), Silicon, ROHS COMPLIANT, MINIMOD-3

FST6445A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, MINIMOD-3
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ANODE
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.46 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	800 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	30 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	45 V
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

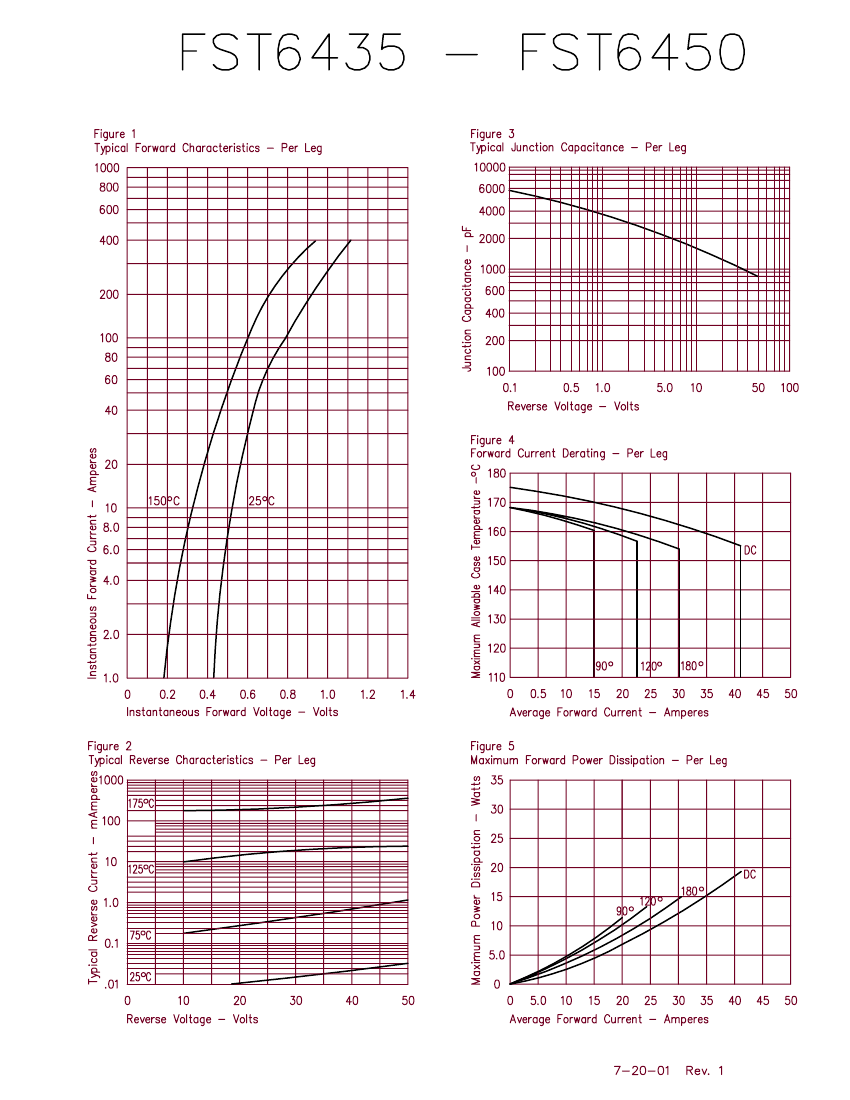

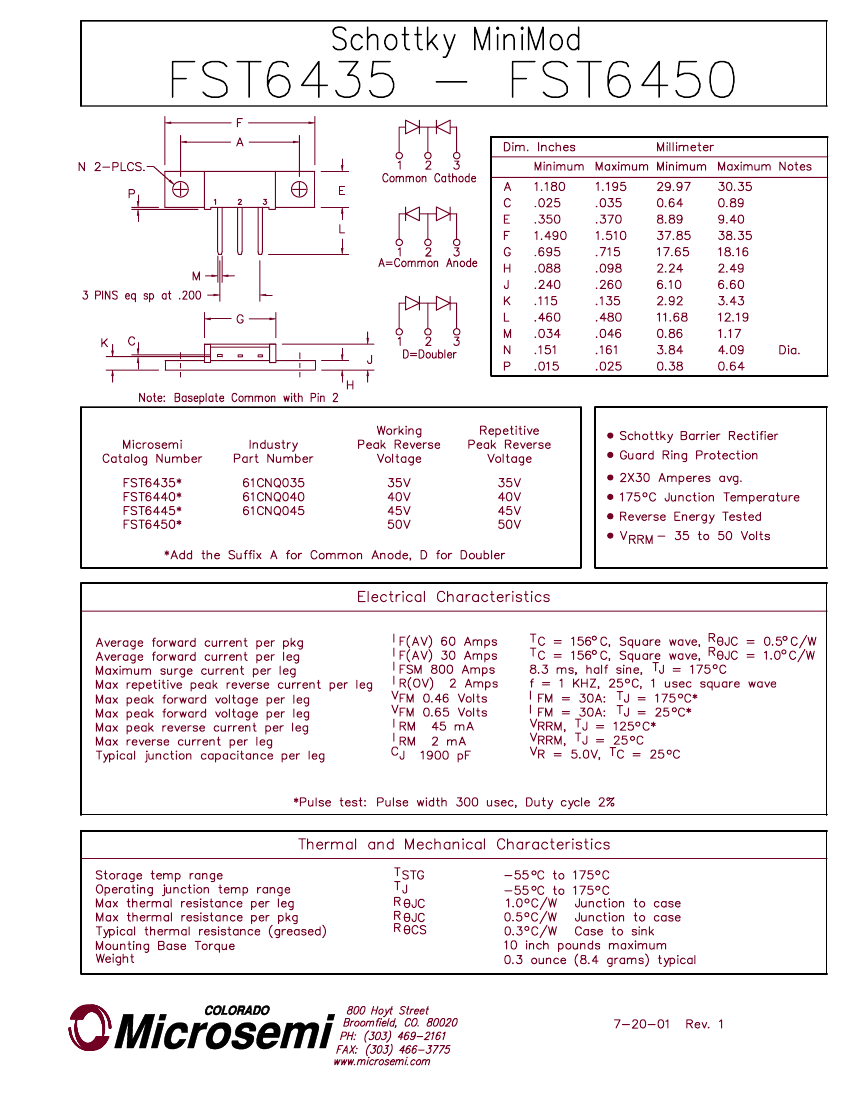

Preview

Download Datasheet

View All

FST6445A Related Products

	FST6445A	FST6435D	FST6450A	FST6440A	FST6450D	FST6440D	FST6435A	FST6445D
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 45V V(RRM), Silicon, ROHS COMPLIANT, MINIMOD-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 35V V(RRM), Silicon, ROHS COMPLIANT, MINIMOD-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 50V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 40V V(RRM), Silicon, ROHS COMPLIANT, MINIMOD-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 50V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 40V V(RRM), Silicon, ROHS COMPLIANT, MINIMOD-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 35V V(RRM), Silicon, ROHS COMPLIANT, MINIMOD-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 45V V(RRM), Silicon, ROHS COMPLIANT, MINIMOD-3
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ANODE	ANODE AND CATHODE	ANODE	ANODE	ANODE AND CATHODE	ANODE AND CATHODE	ANODE	ANODE AND CATHODE
Configuration	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.46 V	0.46 V	0.46 V	0.46 V	0.46 V	0.46 V	0.46 V	0.46 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-XSFM-T3	R-PSFM-T3	R-XSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	800 A	800 A	800 A	800 A	800 A	800 A	800 A	800 A
Number of components	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	45 V	35 V	50 V	40 V	50 V	40 V	35 V	45 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
package instruction	ROHS COMPLIANT, MINIMOD-3	R-PSFM-T3	-	ROHS COMPLIANT, MINIMOD-3	-	ROHS COMPLIANT, MINIMOD-3	R-PSFM-T3	ROHS COMPLIANT, MINIMOD-3
Maker	-	-	Microsemi	-	Microsemi	Microsemi	Microsemi	Microsemi
