DAH-107-E01Z datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DAH-107-E01Z

Preview

DAH-107-E01Z: DescriptionSwitch, SPST, Horizontal, 0.025A, 24VDC, Through Hole-straight; CategoryMechanical and electronic products switch; File Size391KB，2 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

DAH-107-E01Z Overview

Switch, SPST, Horizontal, 0.025A, 24VDC, Through Hole-straight

DAH-107-E01Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304748003
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.016 inch
Actuator type	SLIDE
Other features	ROHS COMPLIANT
body width	6.4008 mm
body height	4.2926 mm
Body length or diameter	19.5834 mm
Center contact plating	GOLD
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC
Contact function	ON-OFF
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VDC V
Electrical life	2000 Cycle(s)
End contact plating	GOLD
Insulation resistance	1000000000 Ω
JESD-609 code	e3
Manufacturer's serial number	DAH
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	7
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Solderability	MIL-STD
surface mount	NO
Switch action	HORIZONTAL
switch function	SPST
Terminal surface	Tin (Sn)
Terminal length	0.138 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

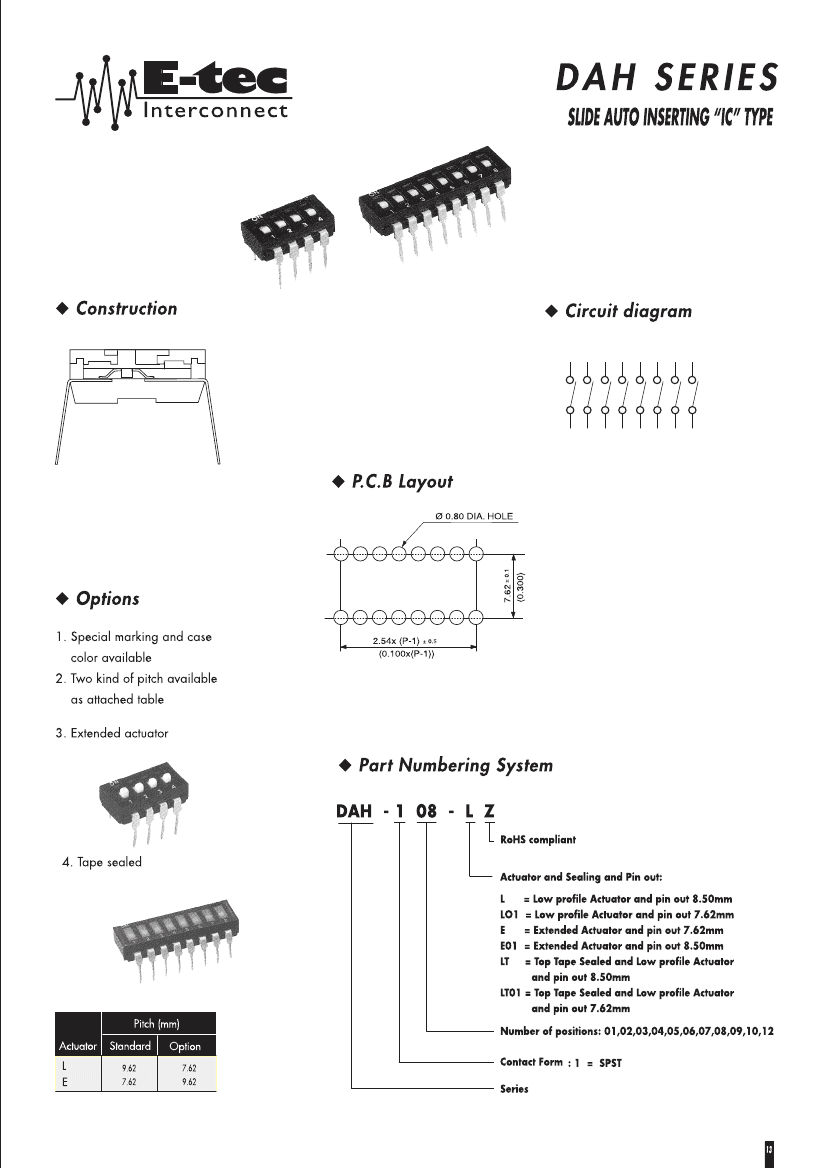

DAH SERIES

SLIDE AUTO INSERTING “IC” TYPE

Interconnect

x

Features

• Same size with IC can be assembled by any automatic

IC inserter.

• Molded 0.300" integrated circuit packing outline allowing

automatic insertion.

• Smaller size makes better heat convection during PC

board wave soldering.

• Top tape sealed to withstand wave soldering, board

washing.

• All materials are UL 94V-0 grade fire retardant plastics.

• Twin contact designed to ensure stable contact.

• Gold plated contact to ensure low contact resistance and

tin plated terminal to prevent contamination during

soldering (

tin/gold

).

x

Specifications

1

. ELECTRICAL

1-1 Contact Rating

- switching

- non-switching

1-2 Contact Resistance

- initial

- after life test

1-3 Insulation Resistance

1-4 Dielectric Strength

1-5 Capacitance between

adjacent switches

: 25 mA, 24 VDC

: 100 mA

:

50 mΩ max.

100 mΩ max.

1000 MΩ min. at 100 VDC

500 VDC for 1 min.

2

. MECHANICAL and ENVIRONMENTAL

2-1 Temperature rating

- operating

- storage

2-2 Operating force

2-3 Mechanical life

2-4 Humidity

2-5 Vibration

2-6 Solderability

2-7 Soldering temperature

: -25°C to +70°C-

: -40°C to +85°C

: 800 g max.

: 2000 operations

: 95% RH, 40°C for 96 hours

: Per MIL-STD-202F, method 204D

: 95% coverage after 230°C

+/- 5°C for 5 sec.

: 260°C max. for 5 seconds

: 5pF max.

x

Dimensions and circuitry

DIMENSION A

Position

A

2

6.68

3

9.42

4

11.96

5

14.5

6

17.04

7

19.58

8

22.12

10

27.20

12

32.28

3.4

±

0.3

(0.134)

6.4

±

0.3

(0.252)

(E) TYPE

1.0

±

0.2

2.54

±

0.5

0.40

±

0.2

(0.01

0)

Unit: mm (inch)

6.4

±

0.3

(L) TYPE

2

3

4

5

6

7

8

ON

(0.252)

1

A

±

0.3

8.5

±

0.3

(0.379)

7.62

±

0.3

(0.300)

(0.016)

0.25

±

0.5

(0.100)

0.5

±

0.1

(0.020)

2.54x (P-1)

±

0.4

(0.100x P-1))

12

3.5

±

0.3

(0.138)

(0.039)

4.3

±

0.3

(0.169)

(0.271) (0.371) (0.471) (0.571) (0.671) (0.771) (0.871) (1.071) (1.271)
