6102-08NF4RL1N: DescriptionCard Edge Connector, 8 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerWieson Technologies Co., Ltd.

Download Datasheet Parametric View All

6102-08NF4RL1N Overview

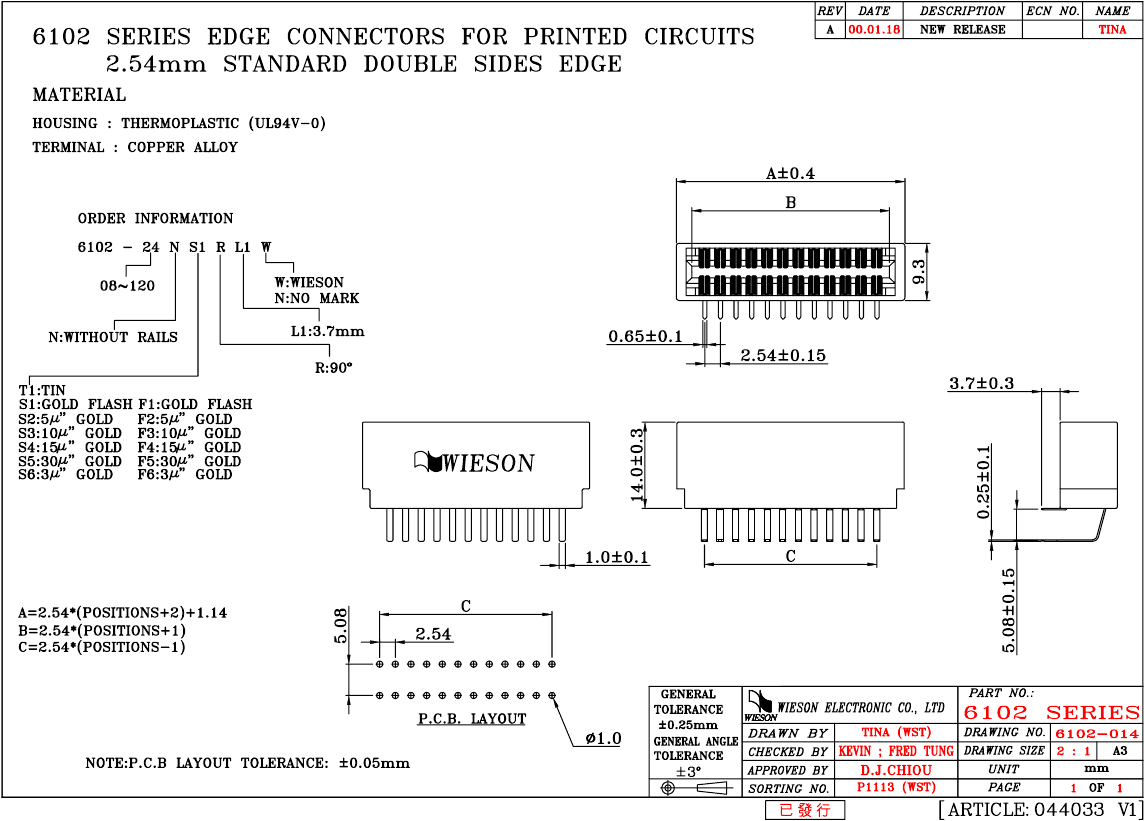

Card Edge Connector, 8 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Objectid	304268149
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	2
body width	0.366 inch
subject depth	0.756 inch
body length	0.645 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
insulator material	POLYETHYLENE
Manufacturer's serial number	6102
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
