IMCH1812ER6R8K

Description
inductor 6.8 UH smd
CategoryPassive components    inductor
File Size64KB,2 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

IMCH1812ER6R8K Online Shopping

Suppliers Part Number Price MOQ In stock
IMCH1812ER6R8K - - View Buy Now

IMCH1812ER6R8K Overview

inductor 6.8 UH smd

IMCH1812ER6R8K Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instruction1813
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
uppercase and lowercase codes1813
structureMolded Chip
DC Resistance0.4 Ω
Nominal inductance(L)6.8 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Manufacturer's serial numberIMCH-1812
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package height3.2 mm
Package length4.5 mm
Package formSMT
Package width3.2 mm
method of packingTR, 7 Inch
Minimum quality factor (at nominal inductance)10
Maximum rated current0.6 A
self resonant frequency28 MHz
seriesIMCH-1812
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal surfaceTin (Sn)
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency7.96 MHz
Tolerance10%
Base Number Matches1

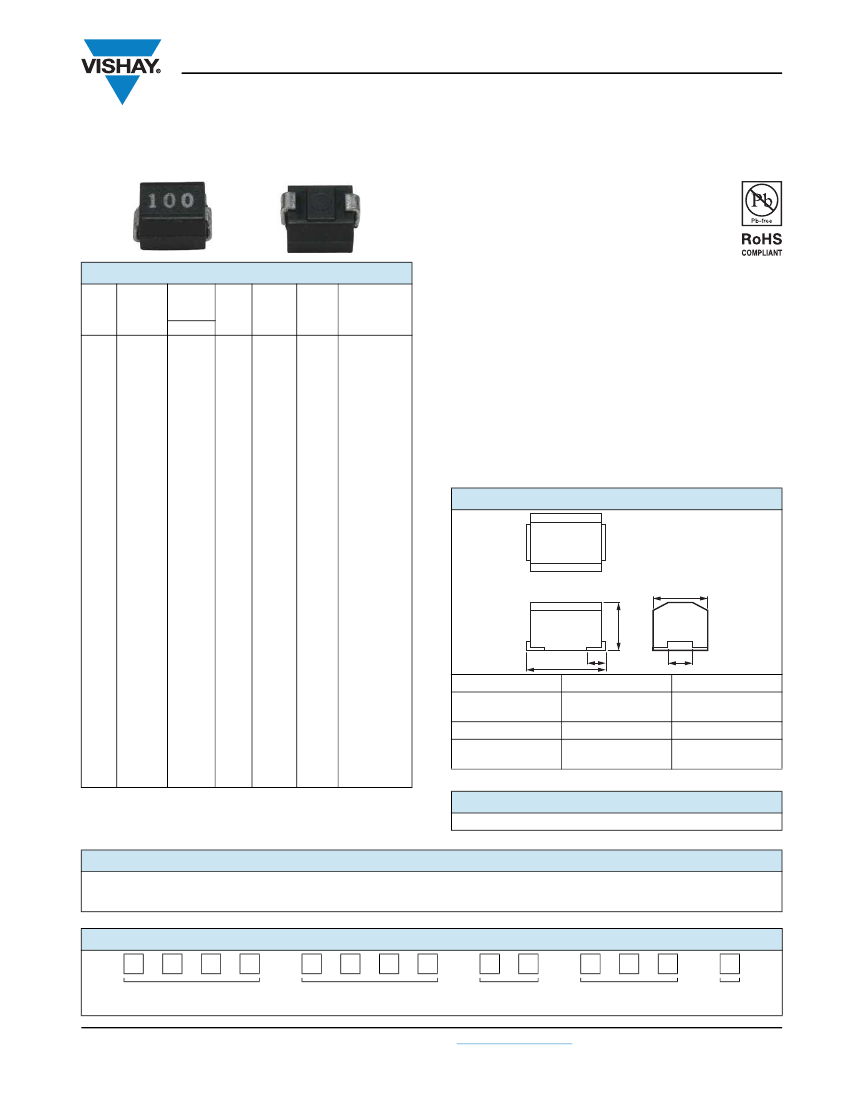

IMCH-1812
Vishay Dale
Wirewound, Surface Mount, Molded Inductors
FEATURES
• Molded construction provides superior strength
and moisture resistance
• Tape and reel packaging for automatic
handling, 500/reel, EIA-481
• Compatible with vapor phase, infrared and
wave soldering methods
• Compliant to RoHS Directive 2002/95/EC
STANDARD ELECTRICAL SPECIFICATIONS
IND.
(μH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
TEST
FREQ.
(MHz)
L&Q
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.90
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.796
Q
MIN.
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
20
20
20
20
20
20
20
SRF
MIN.
(MHz)
200
160
130
100
60.0
60.0
45.0
40.0
35.0
30.0
28.0
25.0
22.0
21.0
20.0
19.0
18.0
16.0
14.0
12.0
11.5
11.0
10.0
9.0
8.0
6.5
7.0
5.5
5.5
5.0
4.0
DCR
MAX.
()
0.11
0.12
0.15
0.16
0.18
0.20
0.22
0.24
0.3
0.3
0.4
0.4
0.5
0.6
0.7
0.8
0.9
1.2
1.4
1.6
1.9
2.2
2.6
3.5
4.0
4.5
6.5
7.5
9
11
13
RATED DC
CURRENT
(mA)
(1)
1050
1000
950
900
850
800
750
700
650
650
600
600
550
500
450
400
370
330
300
280
260
240
220
200
180
160
140
120
120
100
90
TOL.
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
ELECTRICAL SPECIFICATIONS
Inductance Range:
1 μH to 330 μH
Inductance Tolerance:
± 10 %
Operating Temperature:
- 40 °C to + 85 °C
Storage Temperature:
- 40 °C to + 100 °C
TEST EQUIPMENT
• L & Q: H/P 4285A
• SRF: H/P 4286A
• DCR: H/P 34401
DIMENSIONS
in inches [millimeters]
B
A
E
C
D
A
0.177 ± 0.012
[4.5 ± 0.3]
D
0.055 ± 0.016
[1.4 ± 0.4]
B
0.126 ± 0.012
[3.2 ± 0.3]
E
0.035 ± 0.008
[0.9 ± 0.2]
C
0.126 ± 0.012
[3.2 ± 0.3]
Note
(1)
Rated DC current based on the maximum temperature rise, not
to exceed 40 °C at + 85 °C ambient
PART MARKING
- Inductance value
DESCRIPTION
IMCH-1812
MODEL
22 μH
INDUCTANCE VALUE
± 10 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e3
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
M
C
H
1
8
SIZE
1
2
E
R
2
2
0
K
TOL.
PRODUCT FAMILY
PACKAGE
CODE
INDUCTANCE
VALUE
Document Number: 34152
Revision: 28-Feb-11
For technical questions, contact:
magnetics@vishay.com
www.vishay.com
1
