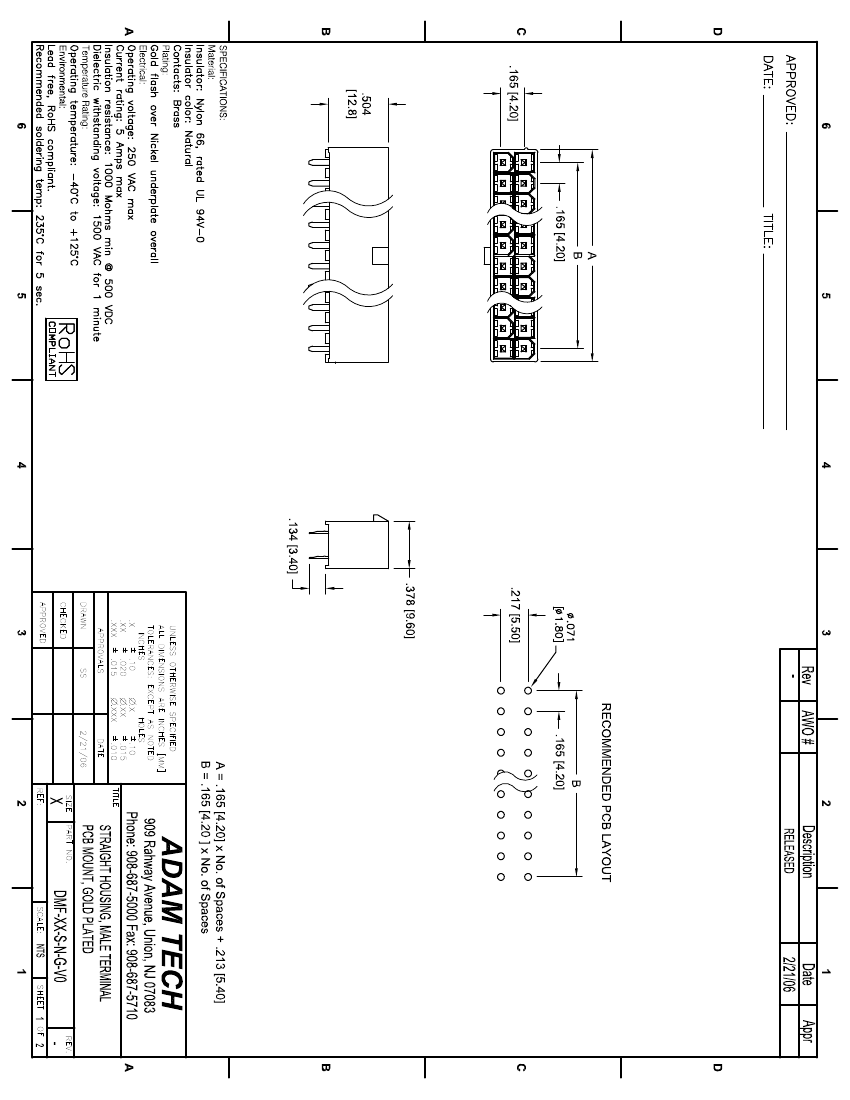

DMF-14-S-N-G-V0 datasheet, PDF

DMF-14-S-N-G-V0: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.165 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

DMF-14-S-N-G-V0 Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.165 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle

Parameter Name	Attribute value
Objectid	304983751
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	2
Other features	ROHS COMPLIANT
body width	0.378 inch
subject depth	0.504 inch
body length	1.203 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
Manufacturer's serial number	DMF
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	14
