25.646.1018.0: DescriptionBarrier Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s), GREEN; CategoryThe connector terminals; File Size954KB，2 Pages; ManufacturerWieland Electric GmbH; Websitehttps://www.wieland-electric.com/; Environmental Compliance

Download Datasheet Parametric View All

25.646.1018.0 Overview

Barrier Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s), GREEN

25.646.1018.0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Wieland Electric GmbH
package instruction	GREEN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	THERMOPLASTIC
Fastening method	CONNECTOR
Manufacturer's serial number	25.646.1018.0
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	10
Rated current	8 A
Rated voltage	300 V
safety certificate	CSA; UL; VDE
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

Datasheet

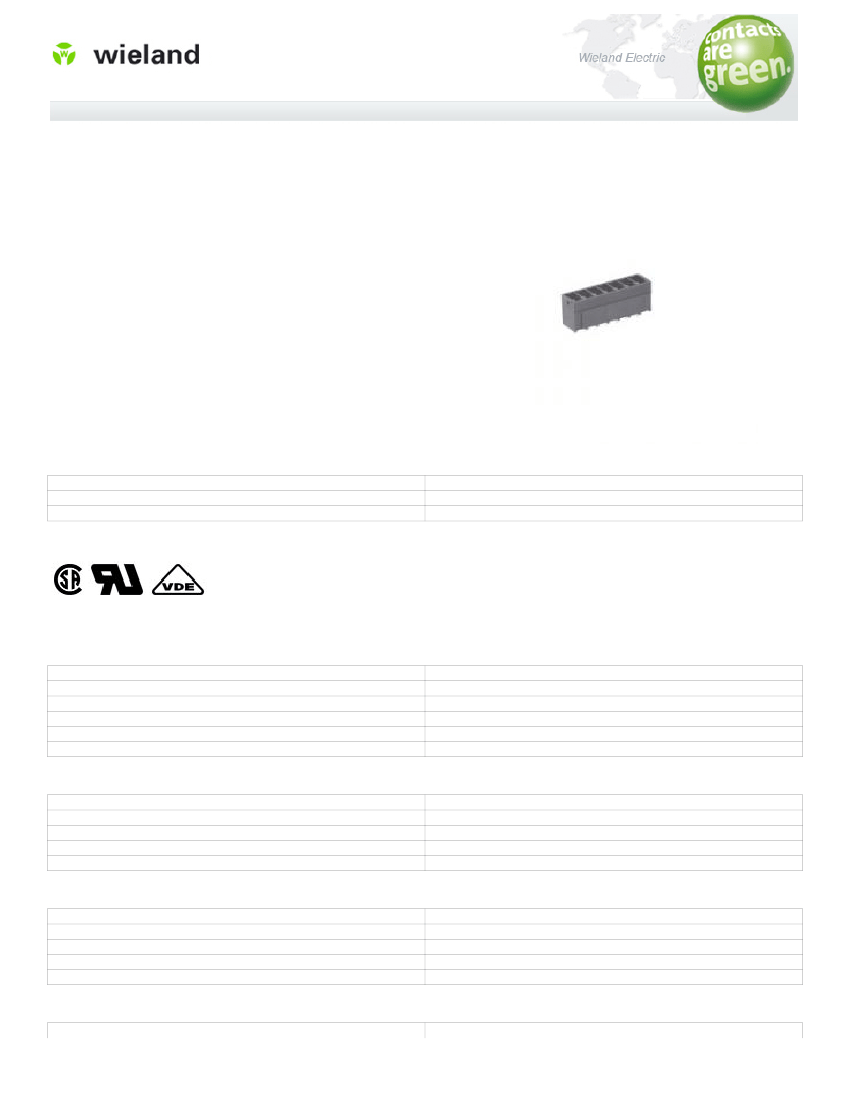

Art.No. 25.646.1018.0

PCB pin header 8513 S / 10 G OB THR

PCB pin header, pitch 3,5 mm, 10 -pole, closed, connecting direction 90° to the

PCB, colour black, pin length 2,6mm for THR, packag ing Tape on Reel, series:

8513 S / 10 G OB THR

Art.No.

EAN

Order unit

25.646.1018.0

4015573930650

220 pieces

Approvals

Technical data

General

Modular spacing

Soldering process

Number of poles

Number of levels

Fastening

Mating direction towards (circuit) board

3.5 mm

THR

10

1

None

90°

Technical data

Rated current

Overvoltage Category I

Overvoltage Category II

Overvoltage Category III

Rated impulse voltage

8A

690 V

250 V

125

2.5 kV

Technical Data UL/CSA

Voltage UL

Current field wiring

Current factory wiring

Voltage CSA

Current CSA

300 V

8A

300 V

5A

Other

Type of insulation material

Thermoplastic

Page: 1 of 2
