PI3HDMI511
ActiveEye
TM
HDMI1.4 Redriver
TM
Source-side Application
Features
HDMI1.4 compliant re-driver
Operation up to 3.4Gbps per lane (340MHz pixel
clock) for 4K x 2K 24Hz(297MHz) and 3D Video for-
mats(1080p, 1080i, 720p)
48-bit per pixel Deep Color
TM
Description
PI3HDMI511 is TMDS ReDriver (Repeater) supporting
HDMI 1.4 and legacy DVI 1.0 specifications up to the
3.4Gbps data rate with 48-bit per pixel Deep Color
TM
.
It converts the DC and AC coupled source devices into the
HDMI compliant signal with proper signal swing, especial-
ly in the Notebook HDMI and Dual mode DisplayPort PC
chipset and docking products.
Programmable termination settings at TMDS input helps
to avoid the compatibility issue caused by non -standard
HDMI source to determine the connection status of TMDS
channel with proper termination voltage setting.
PI3HDMI511 also supports low power mode when no val-
id signal presents on the TMDS link with the clock detec-
tion and Receiver sensing features. The double termina-
tion HDMI output can drive long cable connections.
Convert low-swing DC and AC coupled differential
inputs including Dual Mode DisplayPort AC coupled
signals
Open-drain current steering Rx terminated differential
output
Support Output Squelch function for the power-down
mode
Idle clock detection function for output squelch and
auto standby features
Provide Output squelch function to turn off TMDS
common mode output when the clock is not present
Built-in Rx sense detection function and Passive DDC
level shifter
Programmable equalizer, Pre-emphasis and amplitude
settings to achieve optimized HDMI signal integrity
Support 3.3V source to 5V sink-side system
Integrated ESD protection on I/O pins for 8kV HBM
and contact per IEC61000-4-2, level 4
3.3V Power supply
32-pin TQFN (ZL), Pb-free & Green
Applications
Notebook computers
PC docking station
Set-Top Box (STB)
A/V Home entertainment systems
Dongle, switch boxes
Long HDMI cables

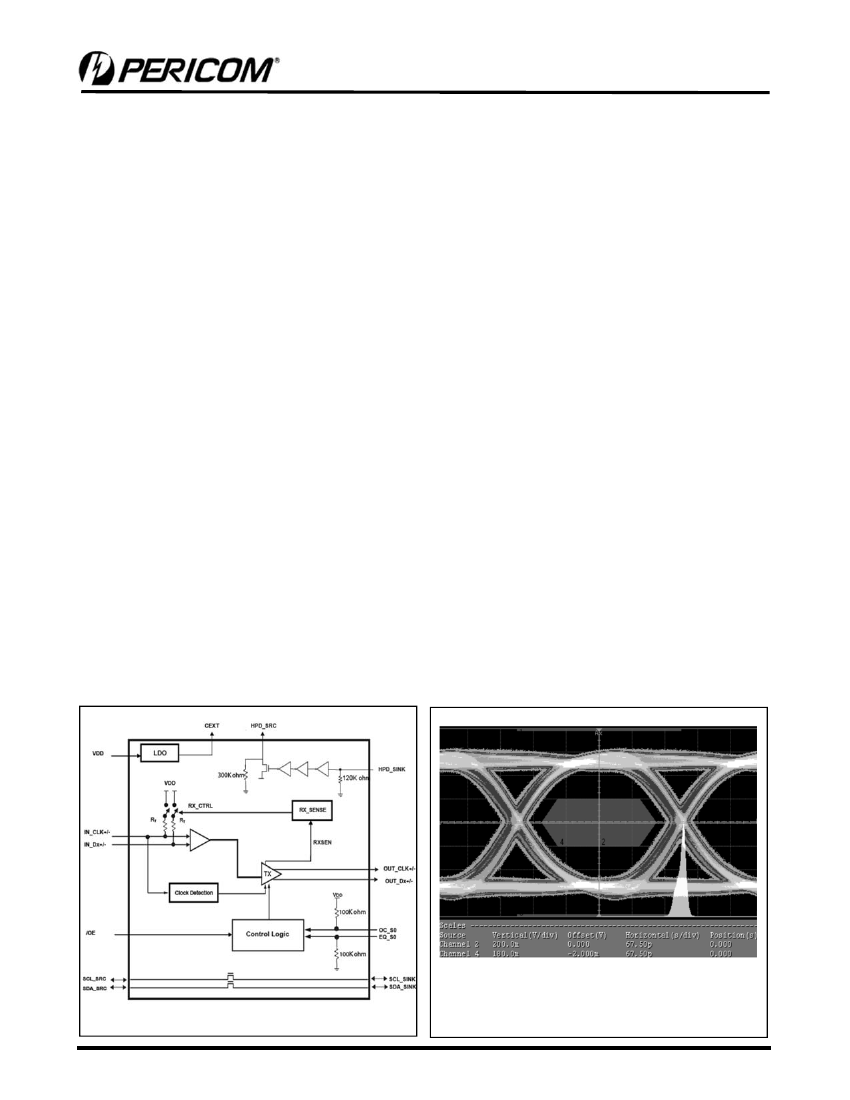

Fig. 2. 1920x1080p 48bit Deep Color with 48” Input
Trace, 9dB Equalization, 500mV Swing, 2.5dB Pre-
emphasis
Fig. 1. PI3HDMI511 Functional Block Diagram
Pericom Semiconductor Corpora on
1‐800‐434‐2336
h p:\\www.pericom.com
PI3HDMI511
ActiveEye
TM
HDMI1.4 ReDriver
TM
Source-side Application
Ordering Information
Ordering Code
PI3HDMI511ZLE
Package Code
ZLE
Package Description
Pb-free & Green 32-Contact TQFN
Notes:
1. Thermal characteris cs can be found on the company web site at
www.pericom.com/packaging/
2. “E” = Pb‐free and Green, Adding an “X” suffix = Tape/Reel
Related Products
Part Number
PI3EQXDP1201
PI3VDP1430
PI3HDMI412AD
PI3HDMI336
PI3HDMI611
PI3HDMI521
PI3HDMI621
PI3VDP3212
PI3VDP12412
Product Description
ActiveEye
TM
DisplayPort 1.2 ReDriver with the built-in AUX listener
ActiveEye
TM
Dual Mode DisplayPort to HDMI Level Shifter and Re-driver
ActiveEye
TM
1:2 Active HDMI1.4 compliant Splitter/Re-driver
ActiveEye
TM
3:1 Active HDMI1.4 Switch/Re-driver with I2C control and ARC
ActiveEye
TM
3.4G HDMI1.4 ReDriver for Sink-side application
ActiveEye
TM
2:1 3.4Gbps HDMI1.4 Switch/Re-driver with built-in ARC and Fast Switching sup-
port for Sink Application
ActiveEye
TM
2:1 3.4Gbps HDMI1.4 Switch/Re-driver with built-in ARC and Fast Switching sup-
port for Sink Application
2-Lane DisplayPort1.2 Compliant Switch
4-Lane DisplayPort1.2 Compliant Switch
