0402B271M500NB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 0402B271M500NB

0402B271M500NB: DescriptionCeramic Capacitor, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.00027uF, 0402,; CategoryPassive components capacitor; File Size278KB，7 Pages; ManufacturerHitano Enterprise Corp; Environmental Compliance

Download Datasheet Parametric View All

0402B271M500NB Overview

Ceramic Capacitor, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.00027uF, 0402,

0402B271M500NB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	923345424
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.72
capacitance	0.00027 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
JESD-609 code	e3
length	1 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	Bulk
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
series	C(SIZE)X7R
size code	0402
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
width	0.5 mm

Preview

Download Datasheet

View All

CERAMIC CHIP CAPACTIORS X7R/X5R DIELECTRIC

APPLICATION

X7R/X5R dielectric properties: suited for by–pass and coupling purposes, filtering, frequency discrimination, DC blockage, and

as voltage transient suppression elements.

eneral Specification

Operating temperature range

: X7R: –55℃ ~ +125℃, X5R: –55℃ ~ +85℃

Temperature coefficient:

∆C:

±15% maximum

Capacitance Range:

100pF ~ 100uF

Capacitance Tolerance:

±10%, ±20%, ±5% (Test condition : C≦10uF, 1±0.2Vrms, 1KHz, C＞10uF, 0.5V±0.2Vrms,

120Hz)

Voltage Ratings:

6.3V, 10V, 16V, 25V, 50V, 100V, 250V, 500V, 1000V, 2000V&3000VDC

Dissipation Factor:

2.5% Max (≧50V), 3.5% Max (25V,16V), 5% Max(10V) (Test condition: same as capacitance)

Insulation resistance:

10,000 MΩ or 100

Ω-F

min, whichever is less. (rated voltage applied at 25℃)

Dielectric strength:

> 250% of rated voltage for 10½100V, 200% for 200&250V, 150% for 500V, 120% for≧1000V

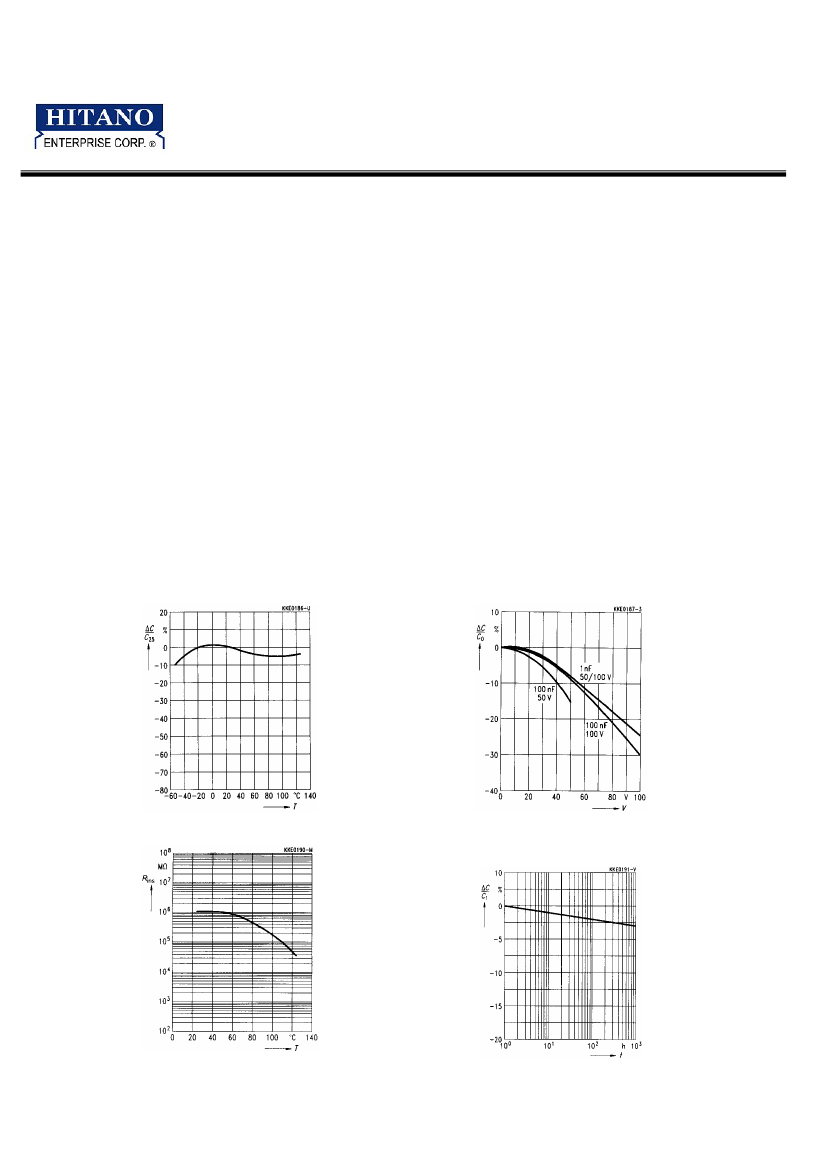

Characteristics

Capacitance change∆C/C

versus

temperature T (tolerance range)

Capacitance change∆C/C

versus

superimposed dc voltage V

Insulation resistance R

ins

versus

Temperature T

Capacitance change∆C/C

versus time (aging rate)
