Waterproof Double Pole Round Rocker Switch
KD Series

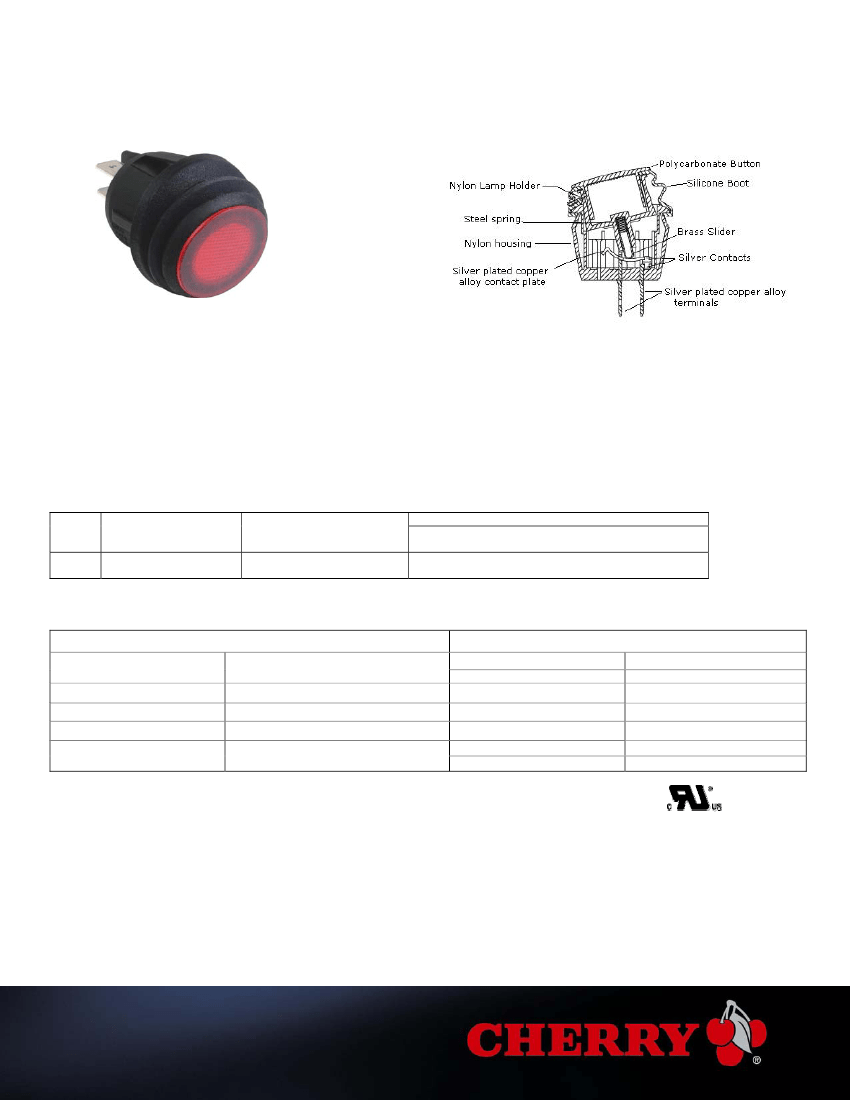

Features
Enclosed switch complies to IP56
Lighted and non-lighted versions
Snap in mounting
Electrical Ratings
Switch
Series
KD
VDC
20A 14VDC; 10A 28VDC
UL1054 Rating
16A 125VAC
10A 250VAC
Electrical Life at Rated Load
According to UL
(Min. Operations)
6,000
Electrical Specifications
Ratings:
Dielectric Strength:
Insulation Resistance:
Initial Contact Resistance:
Temperature Range:
16A 125VAC; 10A 250VAC (cULus)
1500VAC for 1 minute
10 ohms min at 500VDC
0.050 ohms max
-25°C to + 85°C
8
Material Specifications
Actuator:
Housing:
Spring:
Contacts:
Movable Arm:
Terminals:
Rubber Boot:
Polycarbonate 94v-2
Nylon 66 94V-2
Steel
Silver Alloy
Silver plated Copper Alloy
Silver plated Copper Alloy
Silicone
RoHS Compliant
UL File No: E23301
Specifications subject to change without notice.
Waterproof Double Pole Round Rocker Switch
KD Series

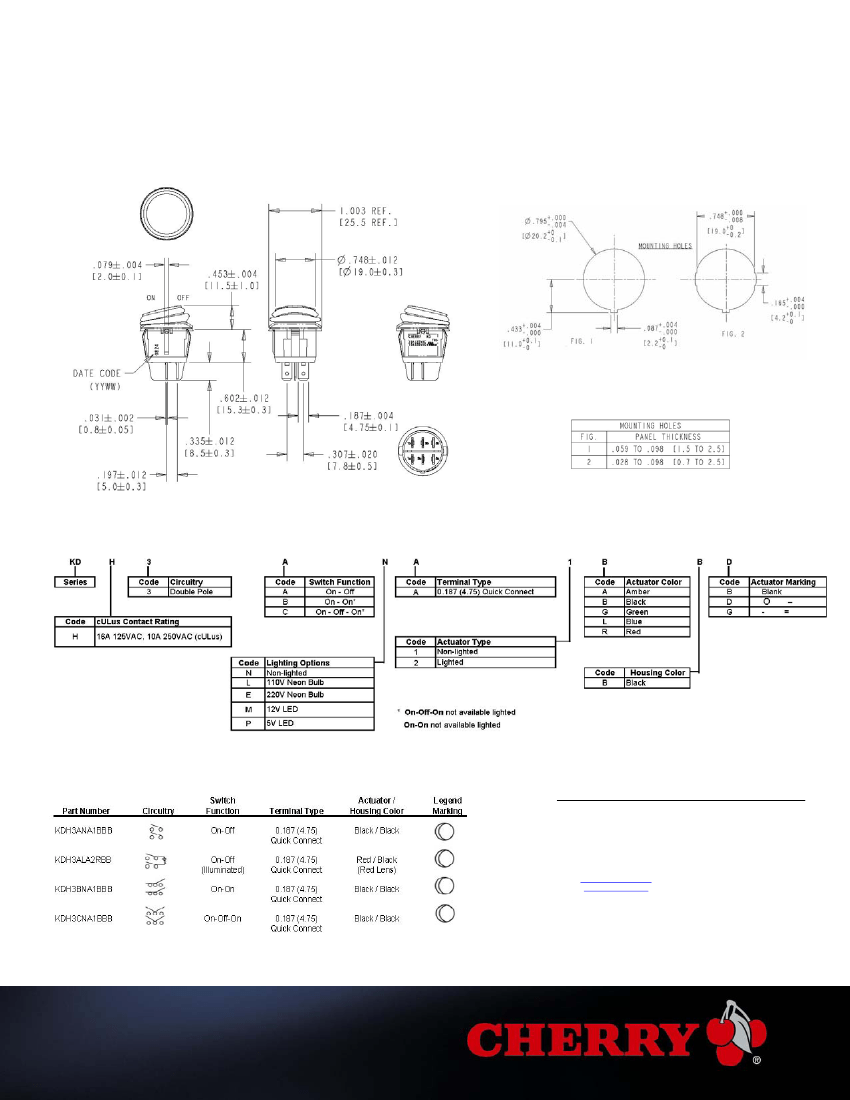

Dimensions
Inches (mm)
Recommended Panel Cut-Out Dimensions
inches
Ordering Information
Examples of Common Part Numbers and Descriptions
inches (mm)
