KZM0J392M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> KZM0J392M

KZM0J392M: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 6.3V, 20% +Tol, 20% -Tol, 3900uF; CategoryPassive components capacitor; File Size308KB，3 Pages; ManufacturerGemmy Electronics Co., Ltd.

Download Datasheet Parametric View All

KZM0J392M Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 6.3V, 20% +Tol, 20% -Tol, 3900uF

KZM0J392M Parametric

Parameter Name	Attribute value
Objectid	1215527869
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	3900 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	12.5 mm
dielectric materials	ALUMINUM
length	25 mm
Manufacturer's serial number	KZM(0J)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
series	KZM(0J)
Terminal pitch	5 mm

Preview

Download Datasheet

View All

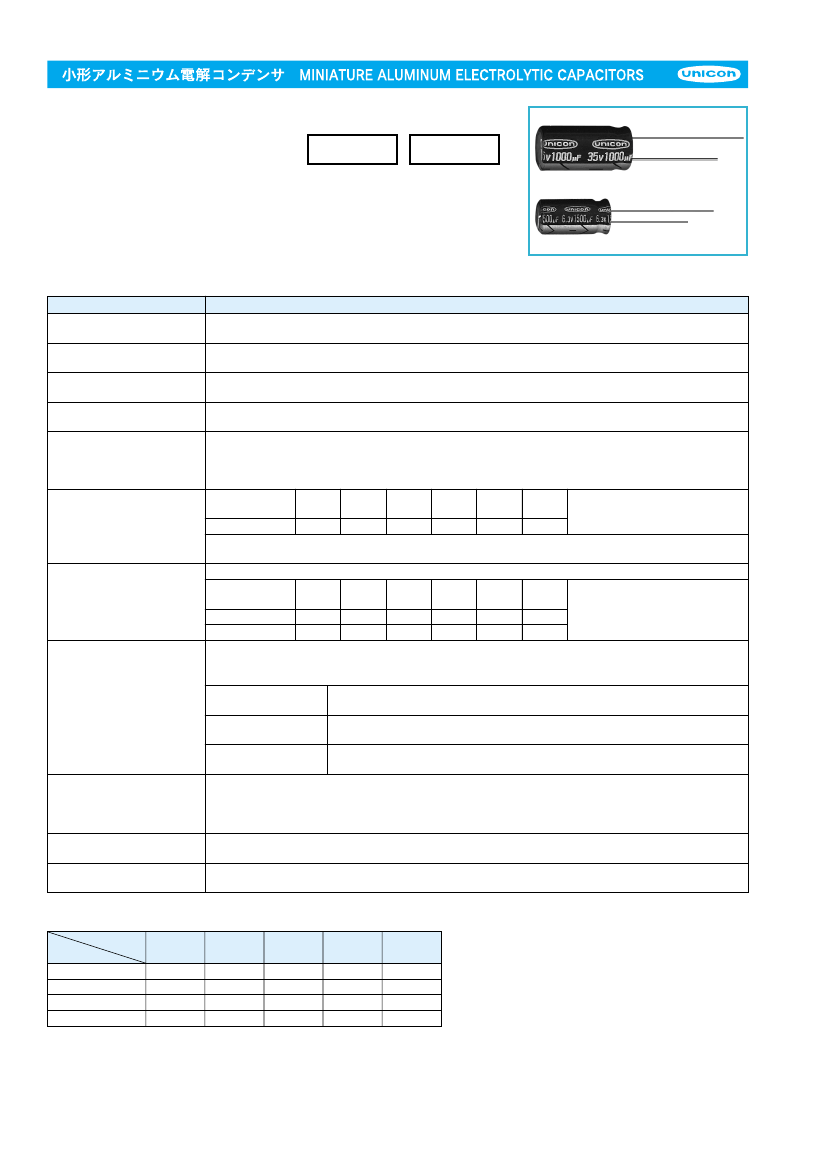

KZM

04 ½½インピーダンス標準品（105℃）

RADIAL TYPE LOW IMPEDANCE

シリーズ

標準品

SERIES

Standard

½インピーダンス品

Low impedance

■

特長 FEATURES

・

½インピーダンス標準品

Standard size for low impedance.

・

自動挿入用テーピング品を各種用意

Available in taping configuration for automatic insertion.

・

105℃ 2000 時間保証

Load Life : 105℃ 2000 hours.

■

仕様 SPECIFICATIONS

項目 Items

½ 用温度範囲

Operating Temperature Range

定格電圧範囲

Rated Voltage Range

静電容量範囲

Nominal Capacitance Range

静電容量許容差

Capacitance Tolerance

漏れ電流

Leakage Current

特性

Characteristics

−40 ＋105℃

∼

6.3 50V.DC

∼

22 6800μF

∼

±20％（20℃，120Hz)

I=0.03CV 又は 4μAのいずれか大きい値以下（1分値）

I=0.03CV or 4μA whichever is greater, after 1 minute application of rated voltage.

I=0.01CV 又は 3μAのいずれか大きい値以下（2分値）

I=0.01CV or 3μA whichever is greater, after 2 minutes application of rated voltage.

定格電圧(V)

・120Hz

6.3

Rated Voltage

20℃

tanδ(MAX)

0.22

0.19

0.16

0.14

0.12

0.10

1000μFを越えるものについては、1000μFを増す毎に0.02を加えた値とする。

For capacitance of more than 1000μF, add 0.02 for every increase of 1000μF．

インピーダンス比 Impedance Ratio

定格電圧(V)

6.3

Rated Voltage

・120Hz

Z(-25℃)/Z(20℃)

Z(-40℃)/Z(20℃)

105℃2000時間定格電圧印加後、下記規格を満足する。

After 2000 hours application of rated voltage at 105℃, capacitors meet the characteristics

requirements mentioned below.

静電容量変化率初期値の±25％以内

Capacitance Change Within ±25％ of initial value.

損失角の正接初期規格値の200％以下

Dissipation Factor

200％ or less of initial specified value.

漏れ電流初期規格値以下

Leakage Current

Initial specified value or less.

105℃1000時間無負荷放½後、上記高温負荷特性の規格を満足する。

（½し、JIS C-5102 4.4項の電圧処理後）

After leaving capacitors under no load at 105℃ for 1000 hours and applying voltage according to

JIS C-5102 4.4, they meet the specified value for load life characteristics listed above.

黒色チューブに金色印刷

Gold print on black sleeve.

JIS C-5141 特性Ｗ

Characteristics Ｗ of JIS C-5141.

損失角の正接

Dissipation Factor

温度特性

Temperature Characteristics

高温負荷特性

Load Life

高温無負荷特性

Shelf Life

表示

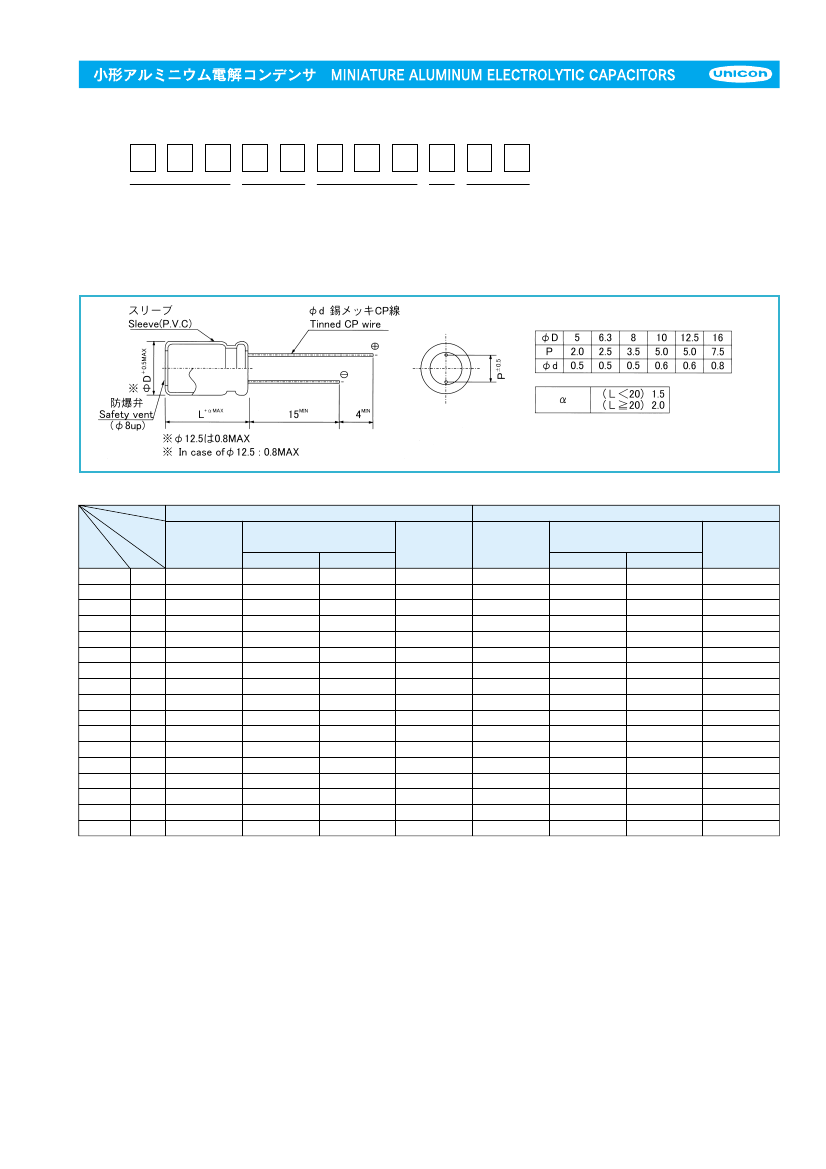

Marking
