CNA02-37S-0GN011 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> CNA02-37S-0GN011

CNA02-37S-0GN011: DescriptionCable Assembly; CategoryThe connector Connector bracket; File Size310KB，2 Pages; ManufacturerCristek Interconnects Inc

Download Datasheet Parametric View All

CNA02-37S-0GN011 Overview

Cable Assembly

CNA02-37S-0GN011 Parametric

Parameter Name	Attribute value
Objectid	1783268503
Reach Compliance Code	compliant
ConnectorSide1	RECEPTACLE
ConnectorSide2	RECEPTACLE
Connector bracket type	CABLE ASSEMBLY
structure	STRANDED
Cross-sectional area	0.051 mm2
DIN compliance	NO
IEC compliance	NO
length	0.152 mm
MIL compliance	NO
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current	1 A
shield	NO
Wire gauge	30 AWG
Wire and Cable Names	FLEXIBLE CORD AND FIXTURE WIRE

Preview

Download Datasheet

View All

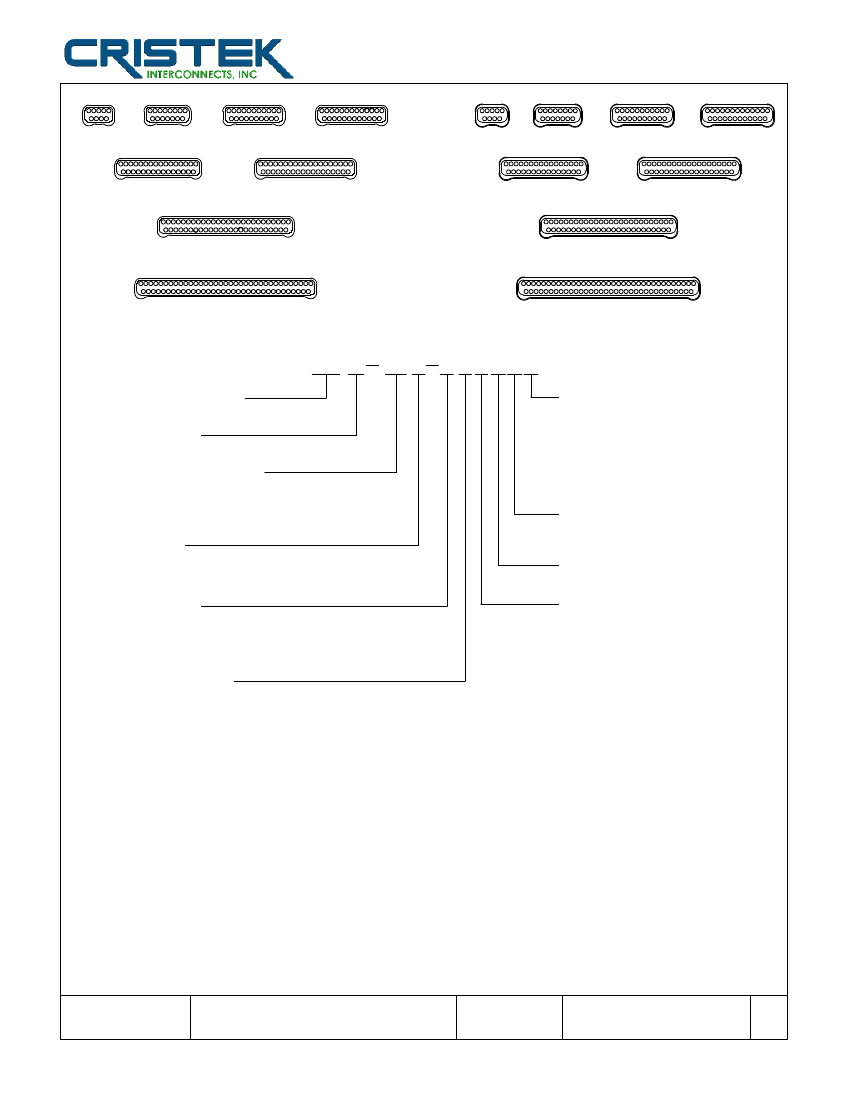

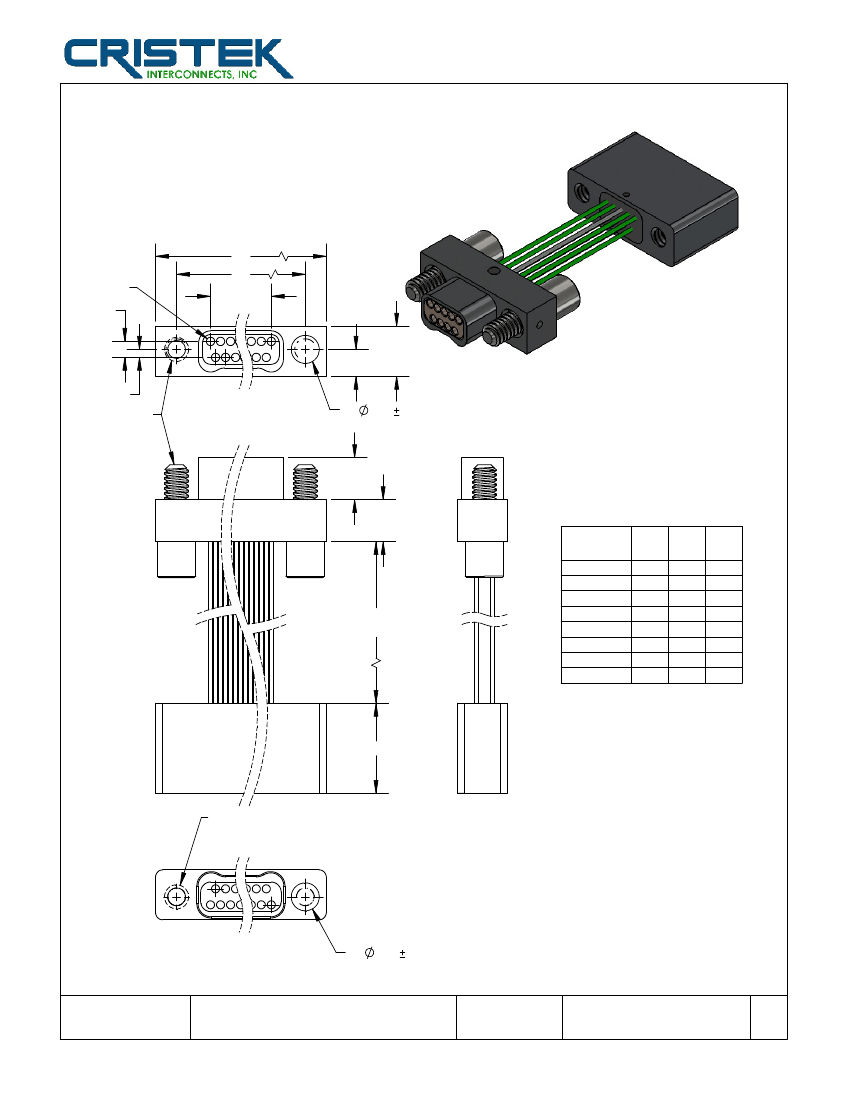

SERIES

CNA02

NANO METAL SHELL

DUAL ROW JUMPER

POS 1

.040

.125

.0675

.020

2X #0-80 UNF-2A

JACKSCREW

(OPTIONAL)

2X .070 .002 THRU

(OPTIONAL)

.105

NO. OF

CONTACTS

.375

.450

.525

.575

.650

.725

.900

1.125

.270

.345

.420

.470

.545

.620

.795

1.020

.100

.175

.250

.300

.375

.450

.625

.825

SEE WIRE LENGTH

OPTIONS

.225

2X #0-80 UNF-2B

THREADED HOLE

(OPTIONAL)

.070 .002 THRU (OPTIONAL)

TOLERANCE: .XXX ±.005

.XX ±.01

ANGLE ±1°

TITLE

NANO METAL SHELL

DUAL ROW

JUMPER

DWG. NO.

SHT

REV

CNA02

888.265.9162

CRISTEK.COM
