59003122

Description
Board Connector, 3 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Plug
CategoryThe connector    The connector
File Size163KB,1 Pages
ManufacturerW+P Products GmbH
Download Datasheet Parametric View All

59003122 Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Plug

59003122 Parametric

Parameter NameAttribute value
Objectid304380439
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.28 inch
subject depth0.571 inch
body length0.3 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance50 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
insulator materialTHERMOPLASTIC
Manufacturer's serial number590
Plug contact pitch0.1 inch
Installation option 1LOCKING
Installation option 2FRICTION LOCK
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts3
Maximum wire diameter22 AWG
Minimum wire diameter22 AWG

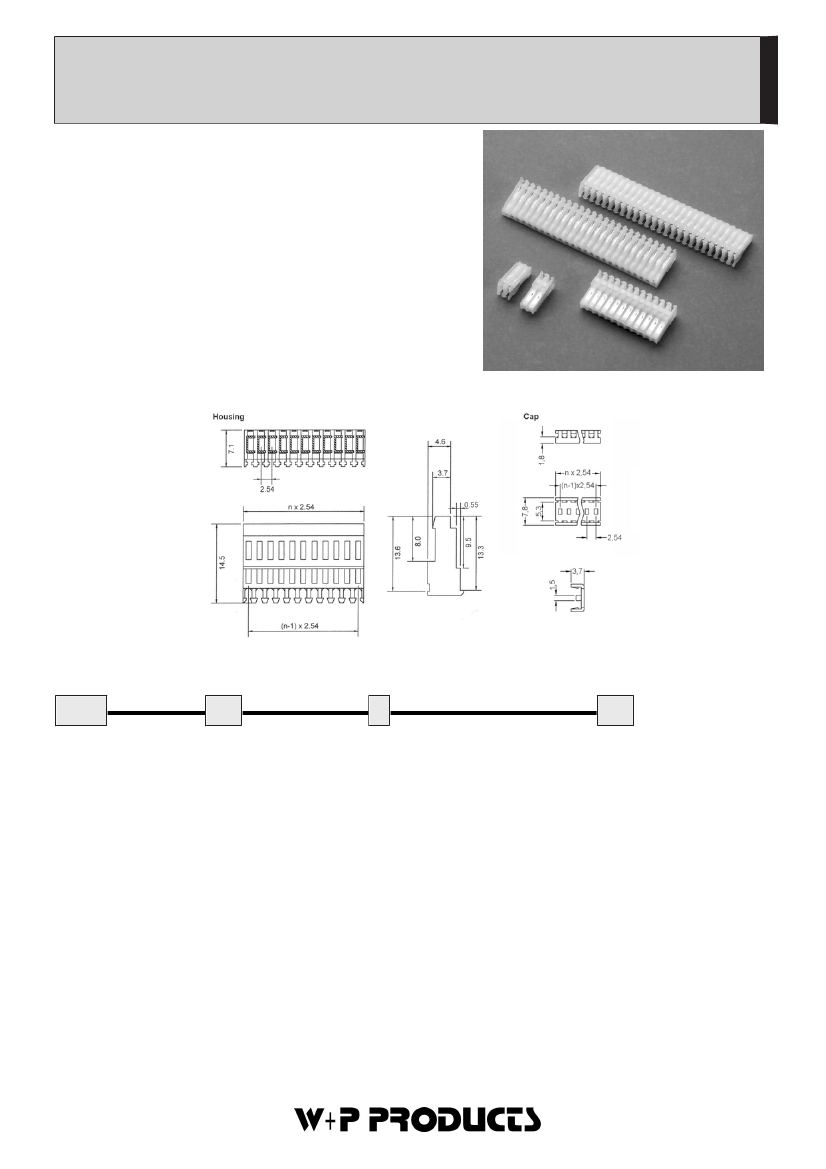

590
Schneidklemm-Buchsengehäuse - RM 2,54mm
IDC - Friction Lock Header - Pitch 2,54mm
Technische Daten /Technical
Data
Isolierkörper
Thermoplastischer Kunststoff, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Kupferlegierung
Contact Material
Copper alloy
Durchgangswiderstand
< 50mΩ
Contact Resistance
< 50mΩ
Spannungsfestigkeit
1000V
AC
Test Voltage
1000V
AC
Nennspannung
250V
AC/DC
max.
Voltage Rating
250V
AC/DC
max.
Nennstrom
3A
Current Rating
3A
Temperaturbereich
-40°C ... +105°C
Temperature Range
-40°C ... +105°C
Passender Gegenstecker Serie:
Mates with Series:
528
Series
Contacts
*
Type
*
AWG
*
590
02
02-25
1
1
Buchsengehäuse
Housing
2
Kappe
Cap
22
22
AWG 22
24
AWG 24
26
AWG 26
28
AWG 28
(Keine Angabe für AWG bei den Kappen)
(AWG option not used for caps)
(
*
Bestellbeispiel - Bitte durch Ihre
Spezifikationen ersetzen.
*
Order example - To be replaced by your
specifications.)
TEL.: +49 5223 98507-0
FAX.: +49 5223 98507-50
E-MAIL: sales@wppro.com
INTERNET: www.wppro.com
1
© W+P PRODUCTS
