8230451

Description
Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size222KB,2 Pages
ManufacturerW+P Products GmbH
Download Datasheet Parametric View All

8230451 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Receptacle

8230451 Parametric

Parameter NameAttribute value
Objectid304374343
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.11 inch
subject depth0.079 inch
body length0.787 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance1000000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial number823
Plug contact pitch0.197 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.142 inch
Terminal pitch5.0038 mm
Termination typeSOLDER
Total number of contacts4

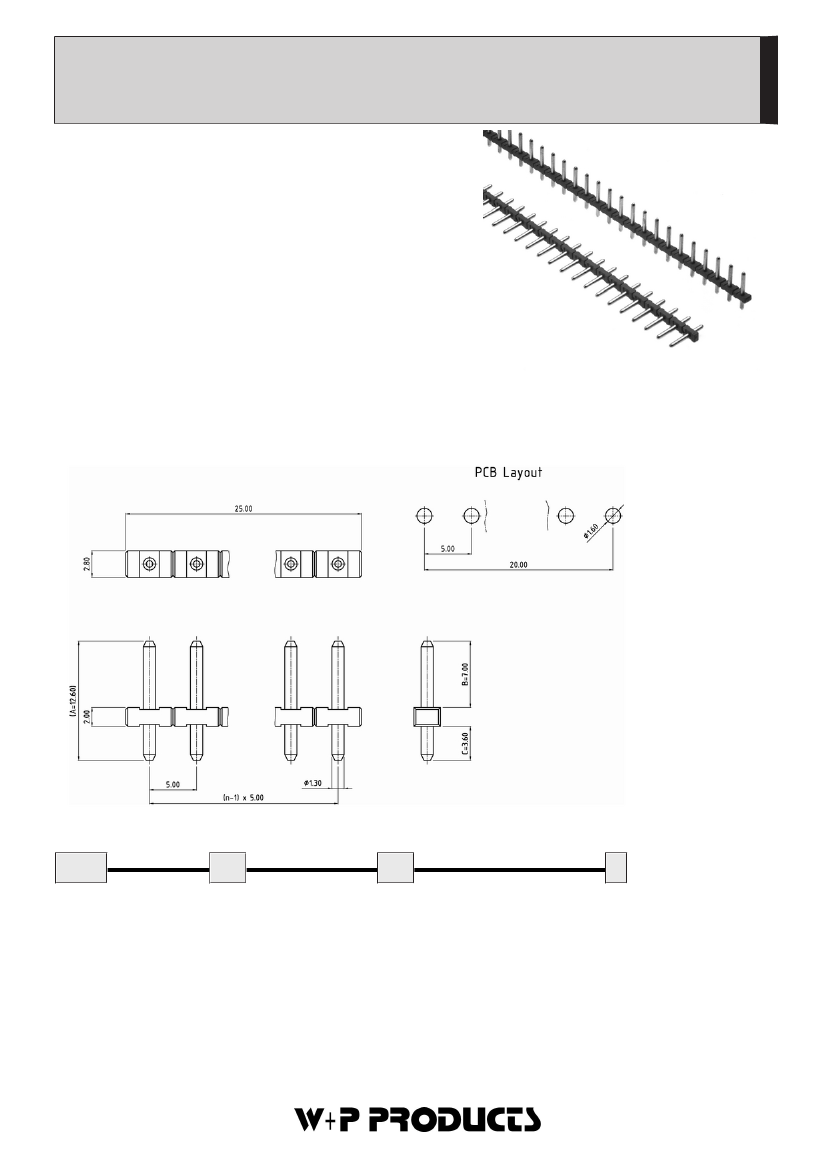

823
Stiftleiste - RM 5,00mm - gerade
Pin Header - 5,00mm Pitch - Straight
Technische Daten /Technical
Data
Isolierkörper
Thermoplastischer Kunststoff, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Messing, verzinnt
Contact Material
Brass, tin plated
Aderquerschnitt
AWG 18 ... 24
Applicable wire Gauge
AWG 18 ... 24
Lötbarkeit
IEC512-12A
Solderability
IEC512-12A
Durchgangswiderstand
< 20mΩ
Contact Resistance
< 20mΩ
9
Isolationswiderstand
> 10
9
Insulation Resistance
> 10
Spannungsfestigkeit
1500V
AC
Test Voltage
1500V
AC
Nennspannung
250V
AC/DC
max.
Voltage Rating
250V
AC/DC
max.
Nennstrom
5A
Current Rating
5A
Temperaturbereich
-25°C ... +85°C
Temperature Range
-25°C ... +85°C
Verarbeitung
Wellenlötverfahren; weitere Informationen in Kapitel T
Processing
Wave soldering, detailed information in ch. T
Series
Contacts
*
Pitch
Type
823
24
01-24
05
5
Raster 5,00mm
Pitch 5,00mm
1
1
Stift
Male
(
*
Bestellbeispiel - Bitte durch Ihre
Spezifikationen ersetzen.
*
Order example - To be replaced by your
specifications.)
