BG096-12-B-N-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BG096-12-B-N-D

BG096-12-B-N-D: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG096-12-B-N-D Overview

Board Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug,

BG096-12-B-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304449614
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	9.1
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.24 inch
body length	1.22 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
JESD-609 code	e3
Manufacturer's serial number	BG096
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

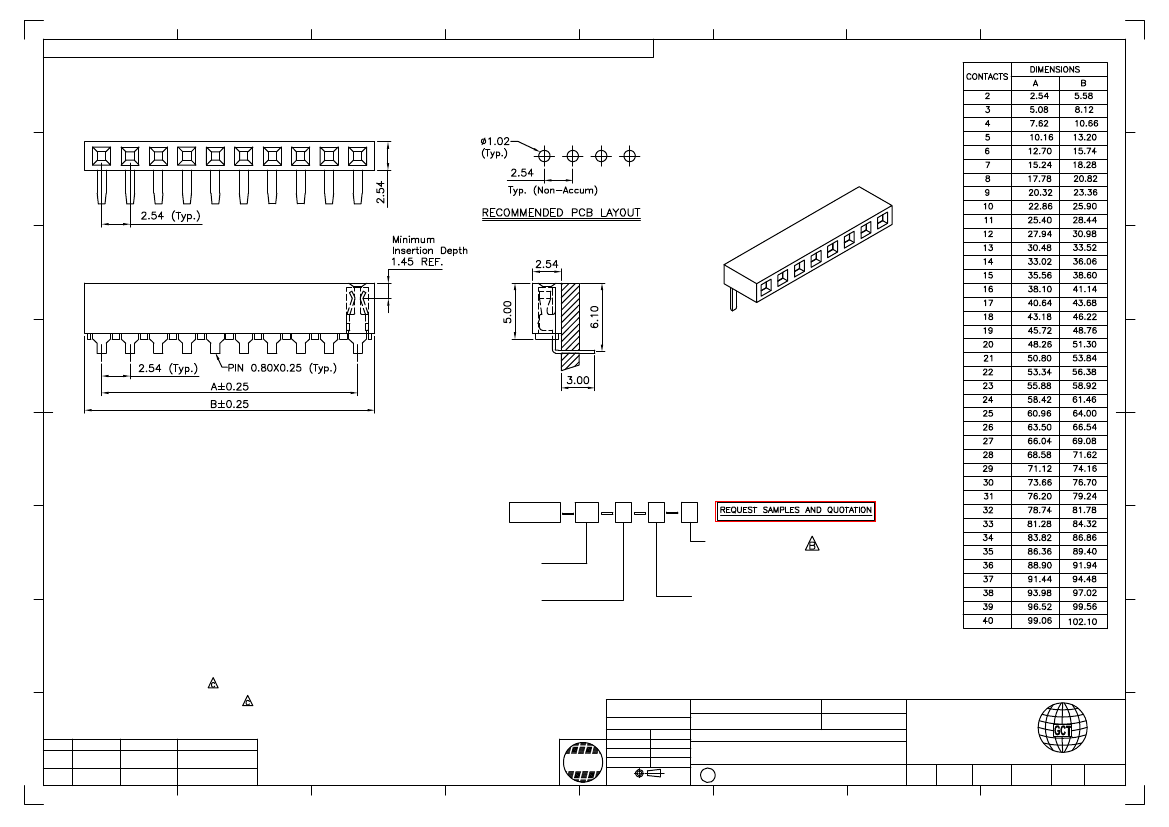

Global Connector Technology Ltd. - BG096: 2.54mm PITCH SOCKET, SINGLE ROW, THROUGH-HOLE, HORIZONTAL, DUAL BEAM FOLDED CONTACTS

SPECIFICATIONS

规格

CURRENT RATING

电流额定值：

3 AMP

INSULATOR RESISTANCE

绝缘电阻值：

1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 600 V

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

COPPER ALLOY

CONTACT PLATING: GOLD/TIN OVER NICKEL

INSULATOR MATERIAL

绝缘½物料：

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

OR POLYESTER

聚酯

, PBT, UL94-V0

SOLDERING PROCESS

可焊性

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BG020

BG030

BG035

BG055

BG060

BG075

BG080

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

10/03/09

PACKING OPTIONS

CHANGED

Ordering Grid

BG096

No. of Contacts

02 to 40

Packing Options

D = Tube (Standard)

G = Plastic Box

Insulator Material

N = Nylon 6T (Standard)

P = PBT

L = LCP

Contact Plating

A = Gold Flash All Over

B = Selective Gold Flash Contact

Area/Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

X.X ± 0.20

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

Third Angle Projection

BG096

Description:-

10 MAR 09

CHANGE TO SOLDER

TEMP. INFORMATION

05/08/09

27/04/09

RoHS

2.54mm PITCH SOCKET, SINGLE ROW, THROUGH-HOLE,

HORIZONTAL, DUAL BEAM FOLDED CONTACTS

Global

Connector

Technology

www.globalconnectortechnology.com

Scale

NTS

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note

Drawn by

LYH

E & OE

Sheet No.

1/1
