FODM2701BR1V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> FODM2701BR1V

FODM2701BR1V: Descriptionoptoiso 3.75kv transistor 4smd; CategoryLED optoelectronic/LED photoelectric; File Size1MB，11 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FODM2701BR1V Overview

optoiso 3.75kv transistor 4smd

FODM2701BR1V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
package instruction	MINI-FLAT PACKAGE-4
Reach Compliance Code	compliant
Other features	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	40 V
Configuration	SINGLE
Nominal current transfer ratio	80%
Maximum dark power	100 nA
Maximum forward current	0.05 A
Maximum insulation voltage	3750 V
JESD-609 code	e3
Number of components	1
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Matte Tin (Sn)

Preview

Download Datasheet

View All

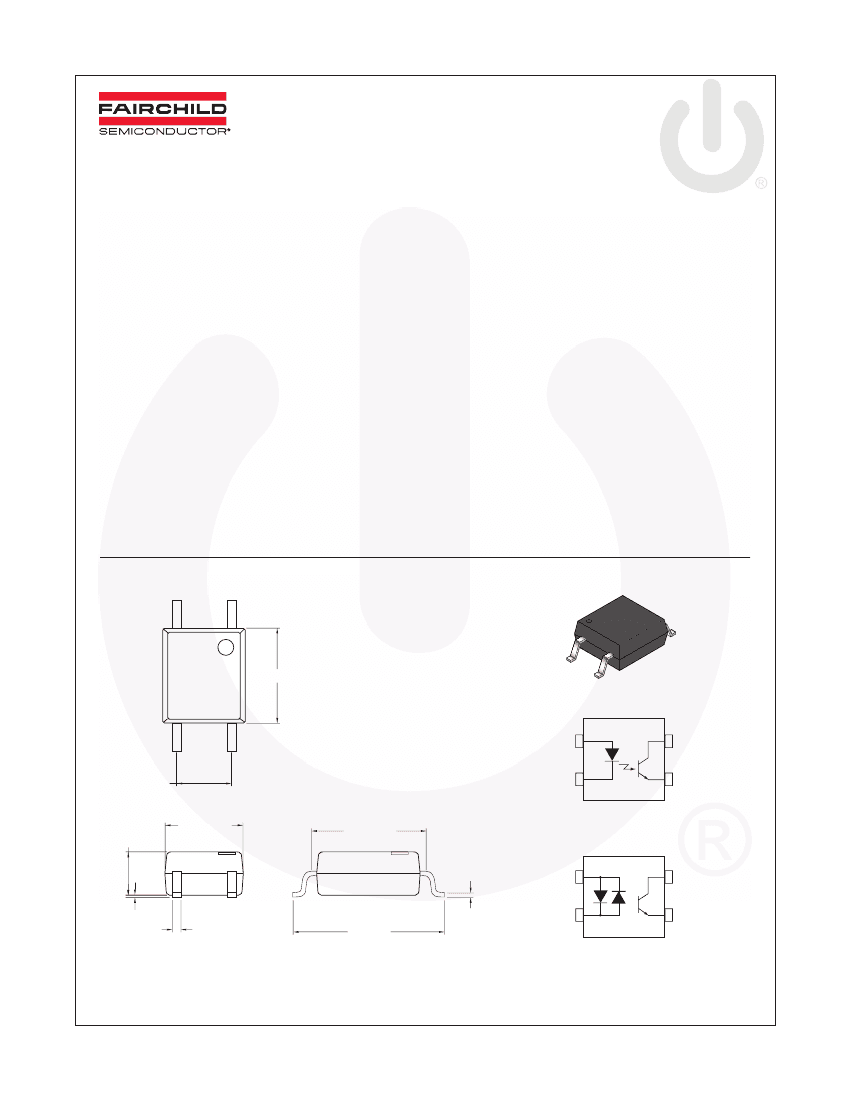

FODM121 Series, FODM124, FODM2701, FODM2705 — 4-Pin Full Pitch Mini-Flat Package Transistor Output Optocouplers

February 2012

FODM121 Series, FODM124, FODM2701, FODM2705

4-Pin Full Pitch Mini-Flat Package Transistor Output Optocouplers

Features

■

More than 5mm creepage/clearance

■

Compact 4-pin surface mount package

Applications

■

Digital logic inputs

■

Microprocessor inputs

■

Power supply monitor

■

Twisted pair line receiver

■

Telephone line receiver

(2.4mm maximum standoff height)

■

Current Transfer Ratio in selected groups

DC Input:

FODM121: 50–600%

FODM121A: 100–300%

FODM121B: 50–150%

FODM121C: 100–200%

FODM2701: 50–300%

FODM124: 100% MIN

Description

The FODM124, FODM121 series, and FODM2701

consists of a gallium arsenide infrared emitting diode

driving a phototransistor in a compact 4-pin mini-ﬂat

package. The lead pitch is 2.54mm. The FODM2705

consists of two gallium arsenide infrared emitting diodes

connected in inverse parallel for AC operation.

AC Input:

FODM2705: 50–300%

■

Available in tape and reel quantities of 2500

■

Applicable to Infrared Ray reﬂow (260°C max, 10 sec.)

■

C-UL, UL and VDE* certiﬁcations

*option ‘V’ required

Package Dimensions

4.40

±0.20

ANODE

COLLECTOR

2.54

CATHODE

EMITTER

3.85

±0.20

2.00

±0.20

5.30

±0.30

Equivalent Circuit

FODM121, FODM124, FODM2701

0.20

±0.05

0.10

±0.10

ANODE

COLLECTOR

CATHODE

EMITTER

0.40

±0.10

7.00

+0.2

–0.7

Note:

All dimensions are in millimeters.

Equivalent Circuit

FODM2705

FODMXXX Rev. 1.1.4

www.fairchildsemi.com

FODM2701BR1V Related Products

	FODM2701BR1V	FODM121BR1	FODM2701BV	FODM121DR1	FODM121ER1V	FODM121ER2V	FODM124V	FODM2701V
Description	optoiso 3.75kv transistor 4smd	optoiso 3.75kv transistor 4smd	optoiso 3.75kv transistor 4smd	optoiso 3.75kv transistor 4smd	optoiso 3.75kv transistor 4smd	optoiso 3.75kv transistor 4smd	Transistor Output Optocoupler, 1-Element, 3750V Isolation, MINI-FLAT PACKAGE-4	Transistor Output Optocoupler, 1-Element, 3750V Isolation, MINI-FLAT PACKAGE-4
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	MINI-FLAT PACKAGE-4	MINI-FLAT PACKAGE-4	MINI-FLAT PACKAGE-4	MINI-FLAT PACKAGE-4	MINI-FLAT PACKAGE-4	MINI-FLAT PACKAGE-4	MINI-FLAT PACKAGE-4	MINI-FLAT PACKAGE-4
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant	compliant	compli
Other features	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	80%	50%	80%	50%	150%	150%	100%	50%
Maximum dark power	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Maximum insulation voltage	3750 V	3750 V	3750 V	3750 V	3750 V	3750 V	3750 V	3750 V
Number of components	1	1	1	1	1	1	1	1
Maximum operating temperature	110 °C	110 °C	100 °C	110 °C	110 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Coll-Emtr Bkdn Voltage-Min	40 V	80 V	40 V	80 V	80 V	80 V	80 V	-
JESD-609 code	e3	-	e3	e3	e3	e3	-	-
Terminal surface	Matte Tin (Sn)	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	-	-
