DINM-F04TB-L

Description
Circular DIN Connector, 4 Contact(s), Female, Locking, Jack
CategoryThe connector    The connector
File Size818KB,1 Pages
ManufacturerRatioplast Electronics
Download Datasheet Parametric View All

DINM-F04TB-L Overview

Circular DIN Connector, 4 Contact(s), Female, Locking, Jack

DINM-F04TB-L Parametric

Parameter NameAttribute value
Objectid308763421
Reach Compliance Codecompliant
ECCN codeEAR99
subject depth0.622 inch
Body/casing typeJACK
Connector typeCIRCULAR DIN CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact styleRND PIN-SKT
DIN complianceYES
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberDINM
Installation option 1LOCKING
Installation methodSTRAIGHT
Number of ports1
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialCOPPER ALLOY
Terminal length0.177 inch
Total number of contacts4
Ratioplast-Electronics H.Wiedemann GmbH
Jockweg 66, D-32312 Lübbecke
Tel:+49 (0) 5741 23661-0
Fac:+49 (0) 5741 23661-20
Ratioplast-Electronics

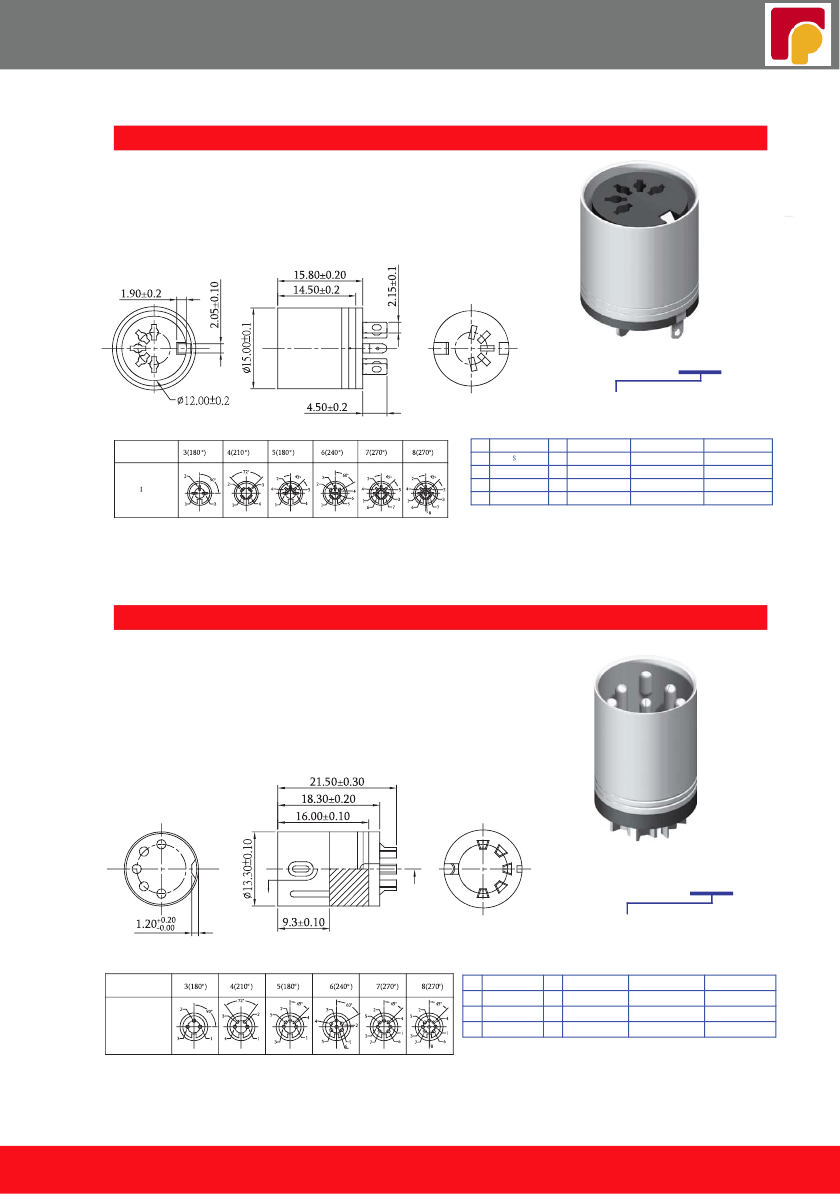

Din Jack Molded Type 3~8Pin
Part No.:DINM-F
3~8 PORTS
No. of Contacts
No.
1
2
Name
hell
Contact
Housing
Grounding Strip
Q'ty
1
3~8
1
2
Material
Copper Alloy
Copper Alloy
PBT
Stainless
□□
TB-L
Finish
Nickel Plated
Tin Plated
Black/Ivory/Gray
Tin Plated
Remarks & Thickness
T=0.40mm
T=0.60mm
UL 94-V0
T=0.20mm
Position
3
4
Din Plug Molded Type 3~8Pin
Part No.:DINM-M
3~8 PORTS
□□
SB-L
Finish
Selective
Black
Nickel Plated
No. of Contacts
No.
1
2
Name
Contact
Housing
Shell
Q'ty
3~8
1
1
Material
Copper Alloy
PBT
Copper Alloy
Remarks & Thickness
T=0.20mm
UL 94-V0
T=0.40mm
Position
3
