SYNTON
-
TECH CORPORATION
FUSIBLE RESISTORS
FKN TYPE ( WIRE WOUND TYPE )
File No. :
Version :
Page :
Date :
FKN-02
C
1/21
2012.05.25
1. INTRODUCTION
There are some similarities between Resistors and
Fuses in material and structure. Fusible Resistors
contain both functions, as being resistor in normal
condition and changed into fuse while abnormal
current comes in protect machines and equioment.
Since two functions performed by one resistor, the
cost therefore saved.
SYNTON
fusible resistor
series are produced with precision technique to get
exact fusing time.
2. FEATURES
It is suitable for protecting circuit boards.
Small in size.
Noncombustible insulating coat.
Low temperature coefficient.
Uniform in fusing time.
Too low or too high ohmic value can be supplied
only case by case.
APPROVED
CHECKED
DESIGNED
REMARK
DOCUMENT NO.
Carol
May
Chen
5/25 RE:SGS
0201010038
Confidential, Do Not Disseminate.
SYNTON
-
TECH CORPORATION
FUSIBLE RESISTORS
FKN TYPE ( WIRE WOUND TYPE )
File No. :
Version :
Page :
Date :
FKN-02
C
2/21
2012.05.25
3. EXPLANATIONS OF ORDERING CODE
DESCRIPTION : FKN 1W 5% 10Ω
SYNTON CODE : FKN
100
J
100
T
SERIES
FUSIBLE
RESISTOR
( FKN TYPE )
POWER
050 : 1/2W
100 : 1W
200 : 2W
300 : 3W
500 : 5W
700 : 7W
TOLERANCE
J :
±5%
G :
±2%
F :
±1%
RESISTANCE
VALUE
E24 Series
3 Digits :
2R2 : 2.2Ω
100 : 10Ω
101 : 100Ω
E96 Series
4 Digits :
2R20 : 2.2Ω
10R0 : 10Ω
1000 : 100Ω
PACKAGE
T
=Tape Box
S
=Tape 26mm
TR
=Tape Reel
B
=Bulk
M / MK / MB=
Forming
horizontal type
F / FK / FKK=
Forming
vertical type
100 S : 1W
small Size
200 B : 2W
big Size
(Please see
detail of
Figure1)
(Please see
detail of
Figure7,8)
(Please see
detail of
Figure4&5,6)
Confidential, Do Not Disseminate.
SYNTON
-
TECH CORPORATION
FUSIBLE RESISTORS
FKN TYPE ( WIRE WOUND TYPE )
File No. :
Version :
Page :
Date :
FKN-02
C
3/21
2012.05.25
4. ELECTRICAL CHARACTERISTICS
TYPE
Power Rating at
70℃
Operating Temp.
Range
Maximun
Working Volt.
Maximun
Overload Volt.
Dielectric
withstanding Volt.
FKN-
50
FKN-
100S
FKN-
100
FKN- FKN-
200S 200
FKN-
300S
FKN-
300
FKN- FKN-
500 500B
FKN-
700
FKN-
1000
1/2W
1W
1W
2W
2W
3W
3W
5W
5W
7W
10W
—55℃½＋155℃
250V
350V
300V
250V
350V
300V
300V
450V
400V
300V 300V
450V 450V
400V 400V
300V
450V
400V
300V
450V
400V
300V 300V 300V
450V 450V 450V
400V 400V 400V
300V
450V
400V
Value Range
Temp.
Coefficient
STANDARD 1Ω~100Ω
SPECIAL 0.1Ω~0.9Ω
±300PPM
/℃ ,
special low to
±25PPM
high to
±1500PPM
Figure 1
5. POWER RATING
(1)Power Derating
: The rated power at the temperature in excess of
70
℃
shall be derated in accordance with figure2
70
100
Rated
Power
(%)
80
60
40
20
0
0
30
60
90
120
150
155
200
250
300
275
Ambient Temperature (℃)
Figure2
Confidential, Do Not Disseminate.
SYNTON
-
TECH CORPORATION
FUSIBLE RESISTORS
FKN TYPE ( WIRE WOUND TYPE )
File No. :
Version :
Page :
Date :
FKN-02
C
4/21
2012.05.25
(2)Rated Voltage :
The DC or AC(rms) continuous working voltage
corresponding to the rated power is determined
by the following formula:
E
=
RxP
Where E : Continuous rated DC or AC (rms) working voltage (v)
P : Rated power (w)
R : Resistance value (
Ω
)
Confidential, Do Not Disseminate.
SYNTON
-
TECH CORPORATION
FUSIBLE RESISTORS
FKN TYPE ( WIRE WOUND TYPE )
File No. :
Version :
Page :
Date :
FKN-02
C
5/21
2012.05.25

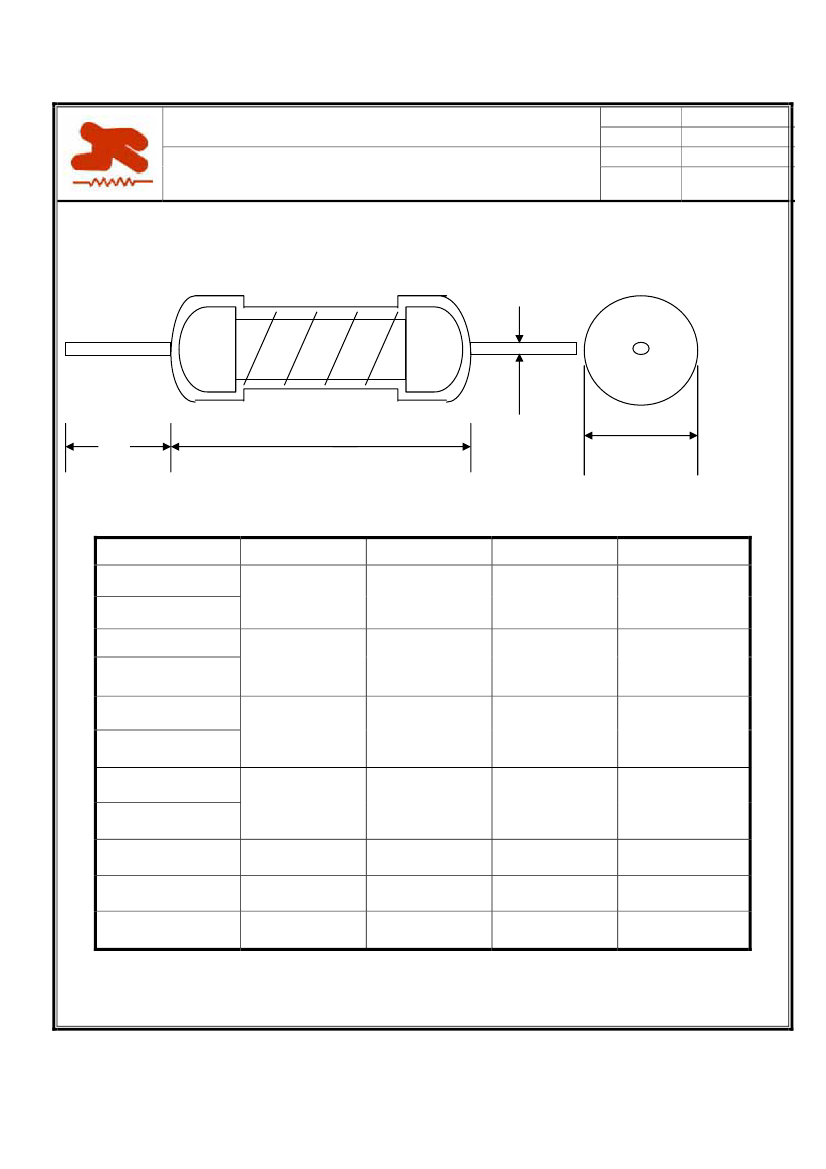

6. DIMENSIONS
d
H
L
D
Unit:m/m
TYPE
FKN-50
FKN-100S
FKN-100
FKN-200S
FKN-200
L
9.0 ± 1.5
D
3.2 ± 1.0
H
25 ± 3
d
0.58 ± 0.1
11 ± 1.5
4.5 ± 1.0
35 ± 3
0.75 ± 0.1
15 ± 1.5
FKN-300S
FKN-300
17 ± 1.5
FKN-500
FKN-500B
FKN-700
FKN-1000
24 ± 1.5
41 ± 2.0
52 ± 3.0
5.0 ± 1.0
35 ± 3
0.75 ± 0.1
6.0 ± 1.0
8.0 ± 1.5
8.0 ± 1.5
8.0 ± 1.5
Figure3
35 ± 3
35 ± 3
35 ± 3
35 ± 3
0.75 ± 0.1
0.75 ± 0.1
0.75 ± 0.1
0.75 ± 0.1
Confidential, Do Not Disseminate.
