5962P1121807HXC

Description
DC-DC Regulated Power Supply Module,
CategoryPower/power management    The power supply circuit
File Size1MB,17 Pages
ManufacturerVPT Inc
Download Datasheet Parametric View All

5962P1121807HXC Overview

DC-DC Regulated Power Supply Module,

5962P1121807HXC Parametric

Parameter NameAttribute value
Objectid8320590982
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
Date Of Intro2018-05-15
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Certification statusQualified

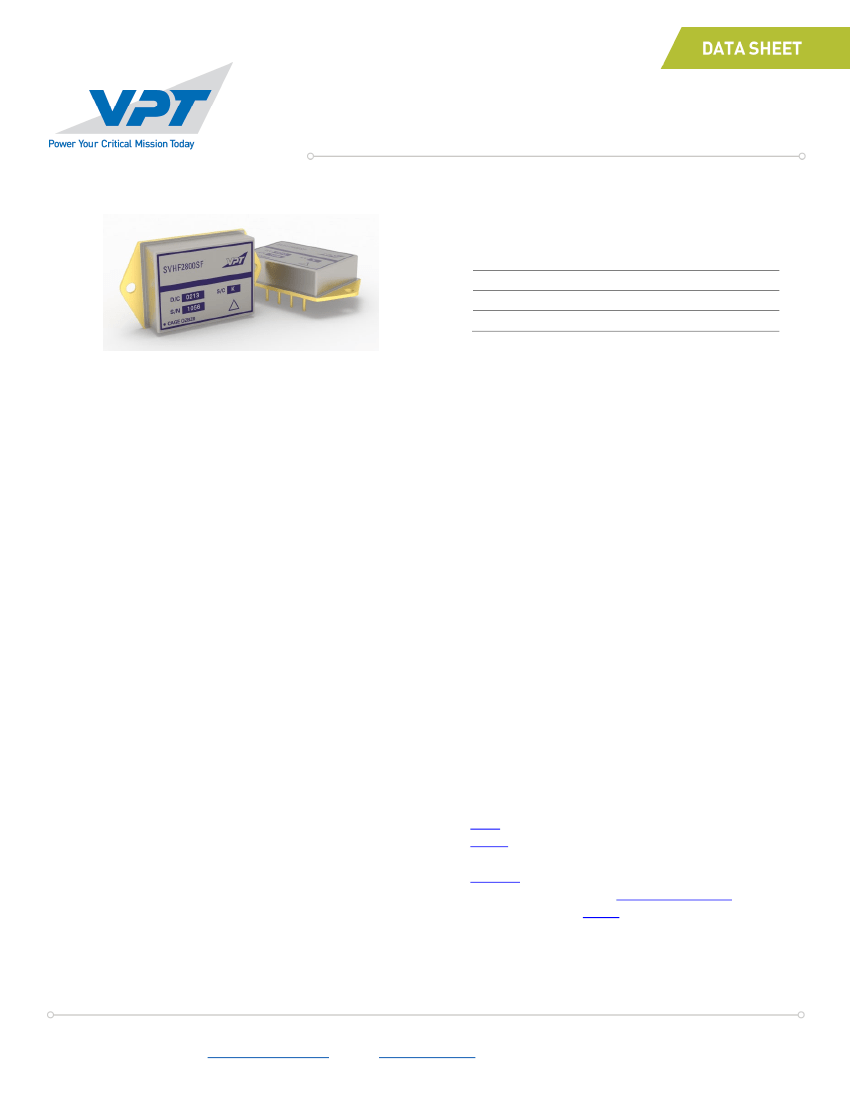

SVHF2800S SERIES
SPACE QUALIFIED HYBRID DC-DC CONVERTERS
Models Available
Input: 15 V to 50 V continuous, 80 V transient
20 W, single output of 2.5 V, 3.3 V, 5 V, 5.2 V, 5.7 V, 12 V, 15 V
Qualified to MIL-PRF-38534 Class H and Class K
SVHF Series DC-DC Converter
1.0 DESCRIPTION
The SVHF Series of space qualified DC-DC converters is
specifically designed for the harsh radiation environment of
space applications. Performance is guaranteed through the use
of hardened semiconductor components, radiation lot
acceptance testing (RLAT) of non-hardened components, and
analysis. The SVHF Series has been characterized for Total
Ionizing Dose (TID) performance including Enhanced Low Dose
Rate Sensitivity (ELDRS) and for Single Event Effects (SEE)
according to VPT’s DLA-approved Radiation Hardness
Assurance (RHA) plan per MIL-PRF-38534, Appendix G,
Level P. Characterization is performed at both the component
level and at the SVHF Series hybrid converter level.
The SVHF Series of DC-DC converters is radiation tolerant and
suited for use in low Earth orbit (LEO), medium Earth orbit
(MEO), geostationary orbit (GEO), deep space, and launch
vehicle programs.
1.2 SPACE LEVEL CHARACTERIZATIONS
Guaranteed TID performance to 30 krad(Si) including ELDRS
SEE performance to 44 MeV/mg/cm
2
. Transients are fully
characterized for cross section and magnitude
Worst-case analysis, stress, radiation, reliability reports available
1.3 MANUFACTURING AND COMPLIANCE
Qualified to MIL-PRF-38534 Class H and Class K,
DLA SMD # 5962-11218
MIL-PRF-38534 element evaluated components
MIL-STD-461 C/D/E/F when used with appropriate VPT EMI filter
Manufactured in a MIL-PRF-38534 Class H and Class K facility
MIL-STD-883
ISO-9001
1.4 PACKAGING
Low-profile: 2.00” x 1.130” x 0.355”
Max weight: 28 g
Industry standard pinout
Precision projection-welded hermetic metal case
Flanged and Non-flanged versions available
1.1 FEATURES
Up to 20 W output power
Wide input voltage range: 15 V to 50 V plus 80 V transient
Continuous operation over full military temperature range of
-55 °C to +125 °C with no power derating
Very low output noise
Radiation immune magnetic feedback circuit
No use of optoisolators
Undervoltage lockout
Current limit protection / short circuit protection
1.5 SIMILAR PRODUCTS AND ACCESSORIES
SVHF
20 W dual output DC-DC converter
SVRHF
15 W space qualified DC-DC converter, 100 krad(Si)
Custom versions available
EMI filters
Non-isolated, space qualified
point of load converters
Use with Thermal Pad
TP-002
Sales Information
Phone:(425) 353-3010
E-mail:
vptsales@vptpower.com
Fax: (425) 353-4030
Web:
www.vptpower.com
SVHF2800S - 9.0
Page 1
