A1253HA-25P

Description
Board Connector, 25 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Locking, White Insulator, Plug
CategoryThe connector    The connector
File Size104KB,1 Pages
ManufacturerJoint Tech Electronic Industrial Co., Ltd.
Download Datasheet Parametric View All

A1253HA-25P Overview

Board Connector, 25 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Locking, White Insulator, Plug

A1253HA-25P Parametric

Parameter NameAttribute value
Objectid304417694
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.132 inch
subject depth0.228 inch
body length1.305 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance500000000 Ω
Insulator colorWHITE
insulator materialNYLON
Manufacturer's serial numberA1253
Plug contact pitch0.049 inch
Installation option 1LOCKING
Installation option 2LATCH
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Total number of contacts25
JOINT TECH ELECTRONIC IND. CO., LTD.
JOY DAY INDUSTRIAL CO., LTD.
UNIT
SCALE
SHEET
TITLE:
mm
1 of 1
APPROVED BY
DRAWN BY
歐½小強
謝瑞清
2007.12.23 2007.12.23

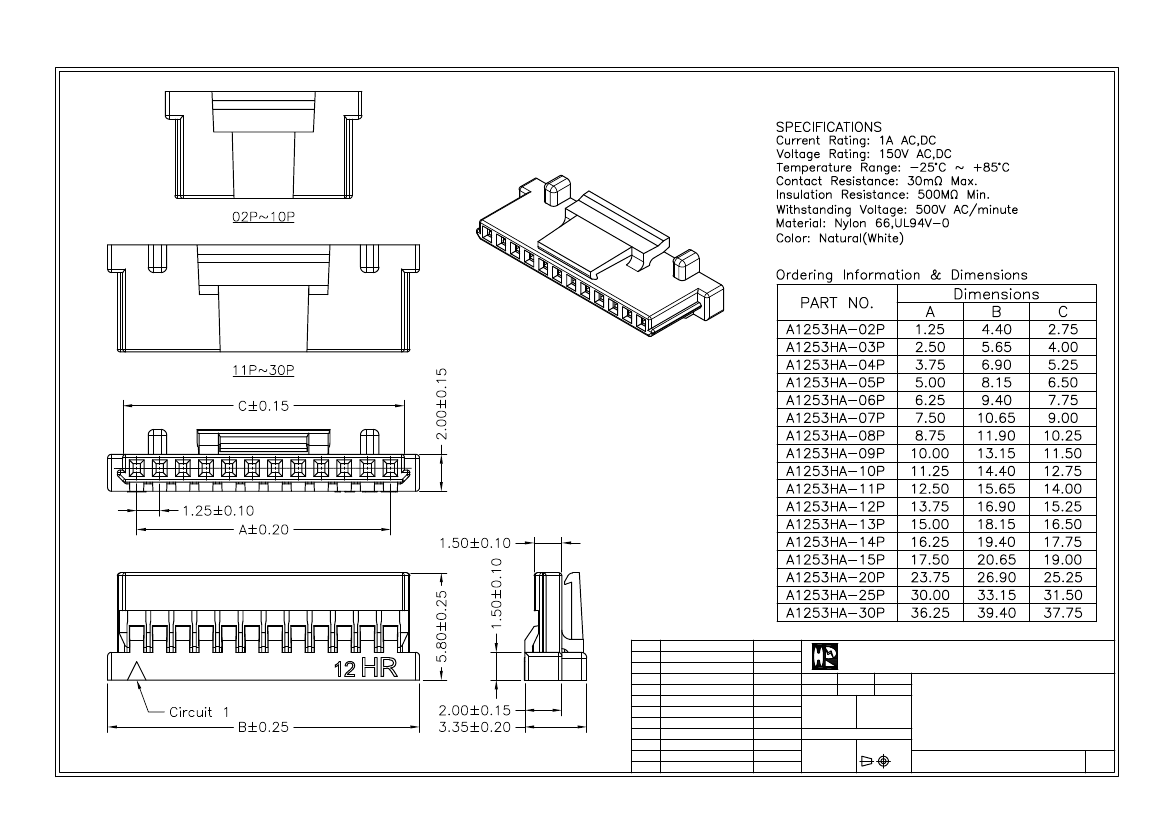

GENERAL TOLERANCE
ANGLE±
X.X±0.25
X.XX±0.15
DRAW NO.:
X.XXX±0.05
A1253HA-XP
1.25mm PITCH
HOUSING-LOCK TYPE
REV.
A0
A0
NEW RELEASE
2007.12.23
REV.
DESCRIPTION
DATE
