A1255H-10P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> A1255H-10P

A1255H-10P: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerJoint Tech Electronic Industrial Co., Ltd.

Download Datasheet Parametric View All

A1255H-10P Overview

Board Connector, 10 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Locking, Black Insulator, Plug

A1255H-10P Parametric

Parameter Name	Attribute value
Objectid	304420876
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.071 inch
subject depth	0.232 inch
body length	0.63 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	A1255
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	10

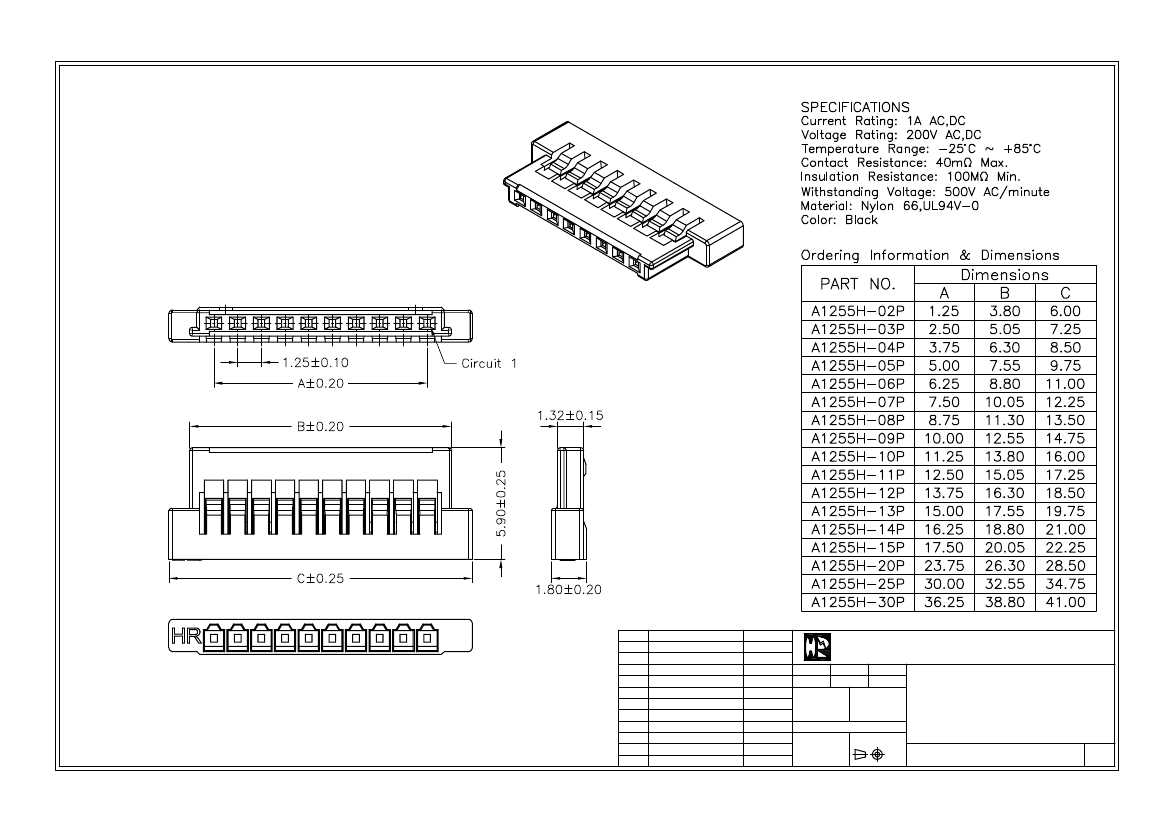

Preview

Download Datasheet

View All

JOINT TECH ELECTRONIC IND. CO., LTD.

JOY DAY INDUSTRIAL CO., LTD.

UNIT

SCALE

SHEET

TITLE:

1 of 1

DRAWN BY

APPROVED BY

董正一

2001.04.17 2001.04.17

GENERAL TOLERANCE

ANGLE±

X.X±0.25

X.XX±0.15

DRAW NO.:

X.XXX±0.05

A1255H-XP

REVISE

NEW RELEASE

2007.06.29

2006.12.28

2006.11.30

2005.12.10

1.25mm PITCH

HOUSING

ULTRA LOW PROFILE

REV.

DESCRIPTION

DATE
