A2503H-18P

Description
Board Connector, 18 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Plug
CategoryThe connector    The connector
File Size58KB,1 Pages
ManufacturerJoint Tech Electronic Industrial Co., Ltd.
Download Datasheet Parametric View All

A2503H-18P Overview

Board Connector, 18 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Plug

A2503H-18P Parametric

Parameter NameAttribute value
Objectid304421293
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.222 inch
subject depth0.315 inch
body length1.85 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage800VAC V
Insulation resistance1000000000 Ω
insulator materialNYLON
Manufacturer's serial numberA2503
Plug contact pitch0.098 inch
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Total number of contacts18
JOINT TECH ELECTRONIC IND. CO., LTD.
JOY DAY INDUSTRIAL CO., LTD.
UNIT
SCALE
SHEET
TITLE:
mm
1 of 1
DRAWN BY
APPROVED BY
董正一
董正一
2001.02.01 2001.02.01
GENERAL TOLERANCE
ANGLE±
X.X±0.25
X.XX±0.15
DRAW NO.:
X.XXX±0.05

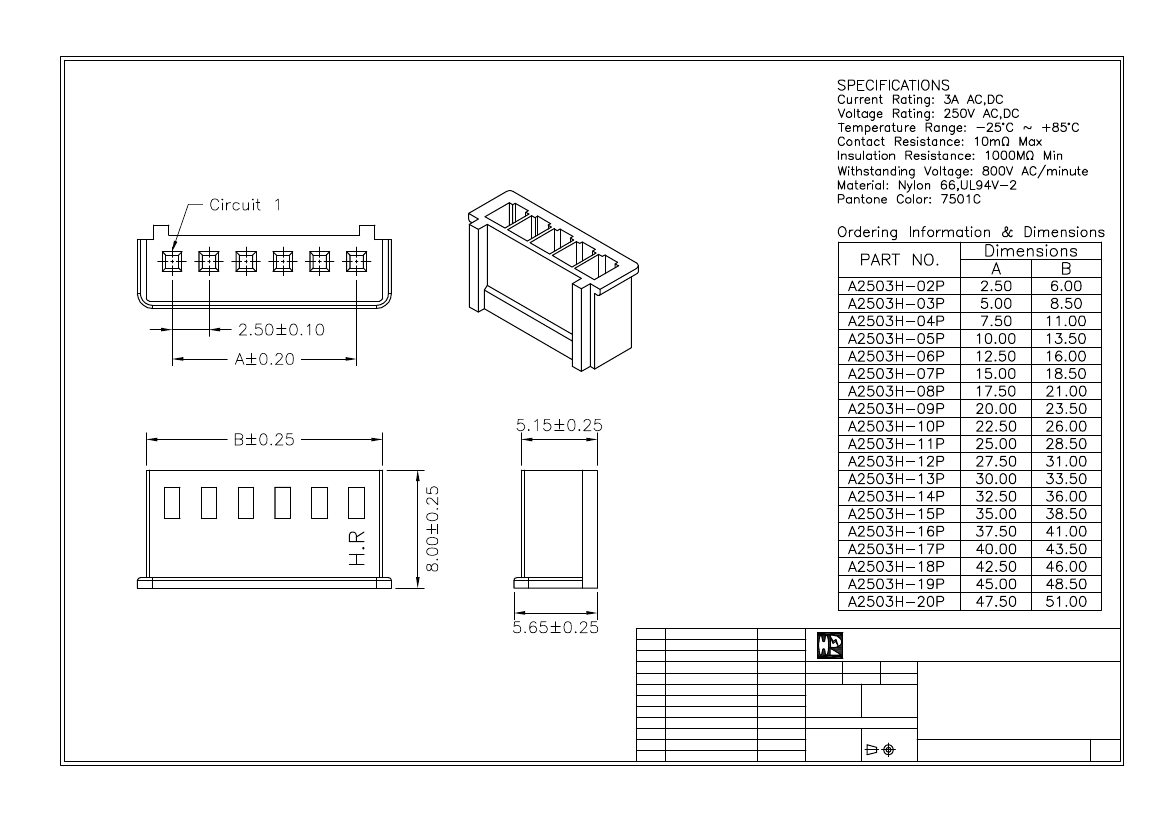

A2503H-XP
2.50mm PITCH
HOUSING
REV.
B1
B1
B0
REVISE
NEW RELEASE
2007.03.18
2005.12.10
REV.
DESCRIPTION
DATE
