AF2D-52-G-CMS-P-T/A datasheet, PDF

Datasheet> All Categories > The connector> The connector> AF2D-52-G-CMS-P-T/A

AF2D-52-G-CMS-P-T/A: DescriptionBoard Connector, 52 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerAntelec; Websitehttp://www.antelec.fr; Environmental Compliance

Download Datasheet Parametric View All

AF2D-52-G-CMS-P-T/A Overview

Board Connector, 52 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

AF2D-52-G-CMS-P-T/A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1303160380
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	TOP ENTRY
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	AF2D
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	52
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

BTB

2.54 mm

www.antelec.fr

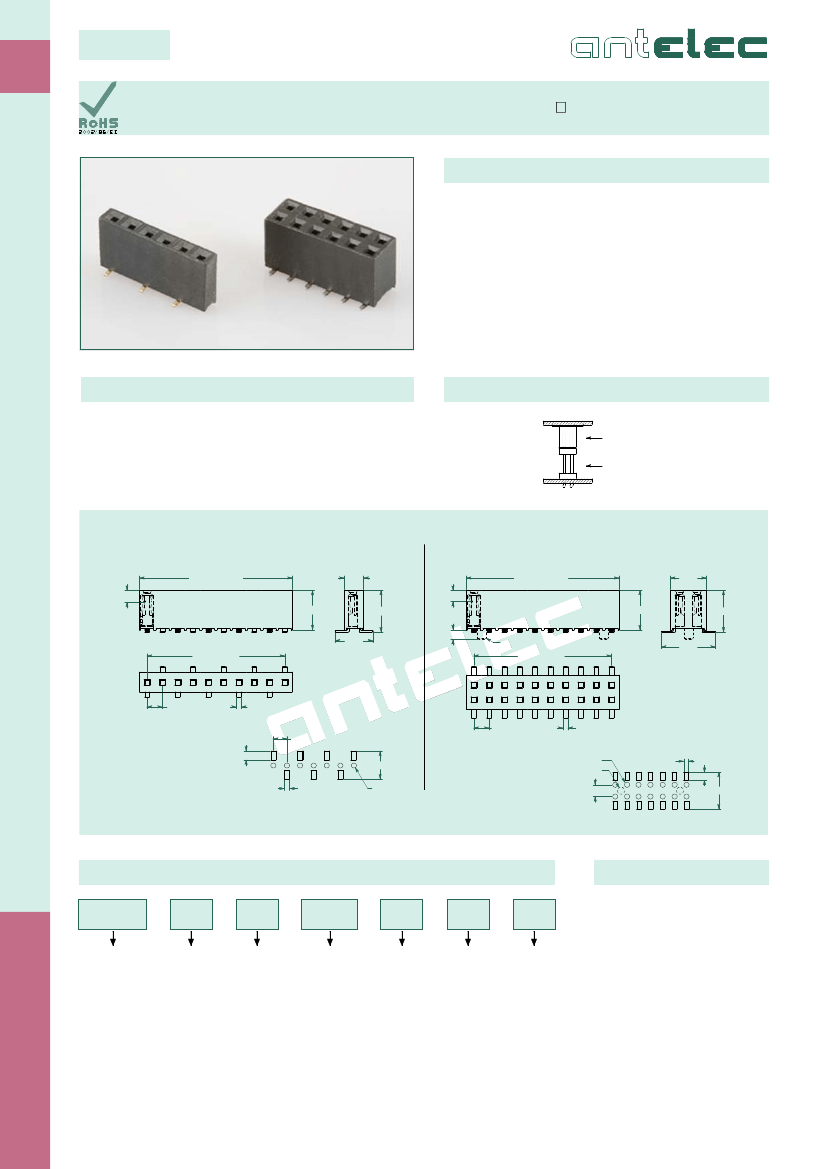

Female header straight SMT type for pin

0.64 mm

Product specifications

Current rating : 3.0 A

Dielectric withstanding voltage : 1000 Volts AC during 1 mn

Insulation resistance : > 1000 MΩ

Contact resistance : < 20 mΩ

Operating temperature : -55°C to +125°C

Max processing temperature : 260°C during 5 sec

Contact : phosphor bronze

Plating : gold flash or tin

Insulator : nylon-6T, UL94V-0

Top or bottom entry

Mates with

Pin headers

0.64 mm

Mounting example(s)

AF2D-XX-G-CMS

DS-DI-254

1 Row

N x 2.54 + 0.3

2.54

H (7.1)

7.5

1.4

2.5

2.54

N x 2.54 + 0.3

2 Rows

5.0

H (7.1)

7.5

4.0

(N-1) x 2.54

Ø 1.0

(N-1) x 2.54

6.7

2.54

0.6 x 0.25

2.54

0.6 x 0.25

PCB layout

(tolerance ± 0.05 mm)

1.90

1.02

5.20

Ø 1.02

Ø 1.20

1.02

1.90

PCB layout

(tolerance ± 0.05 mm)

2.54

7.60

Create your part number

Product range

Number of pins :

1 row : 2 to 40 pins

2 rows : 4 to 80 pins

Without

Pegs

or P for

with Pegs

(2 Rows

only)

In Bulk or

B/A for Reel

with pad or

T/A for Tub

with pad

AF1D

BOARD TO BOARD 2.54

Antelec

socket

1 row

straight

or AF2D for

socket

2 rows

straight

Total

number

of contacts

Gold ot

T/G for

Selective

CMS

SMT

version

Pin N°1

on left

or 1D for

Pin N°1

on right

(only for

1 row,

number

of pins

even)

142

info@antelec.fr

tel: +33 (0)1 49 80 14 14

fax: +33 (0)1 49 80 14 15
