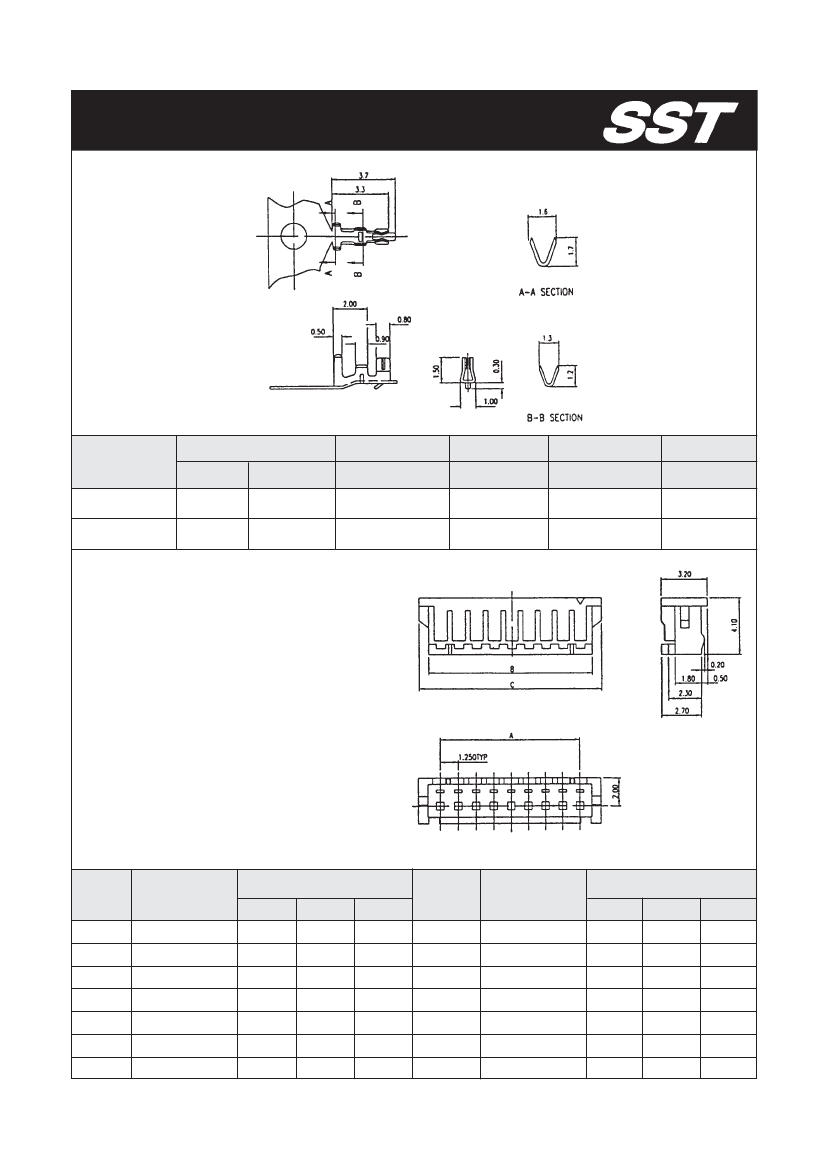

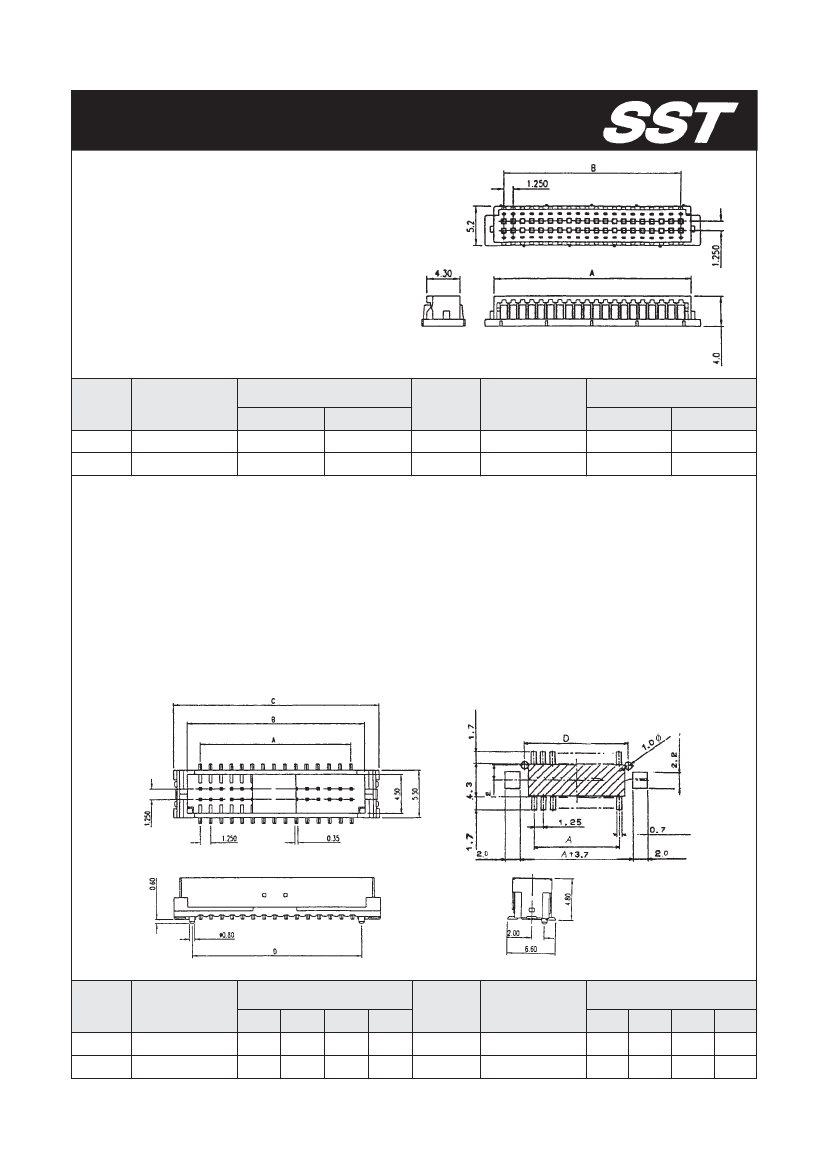

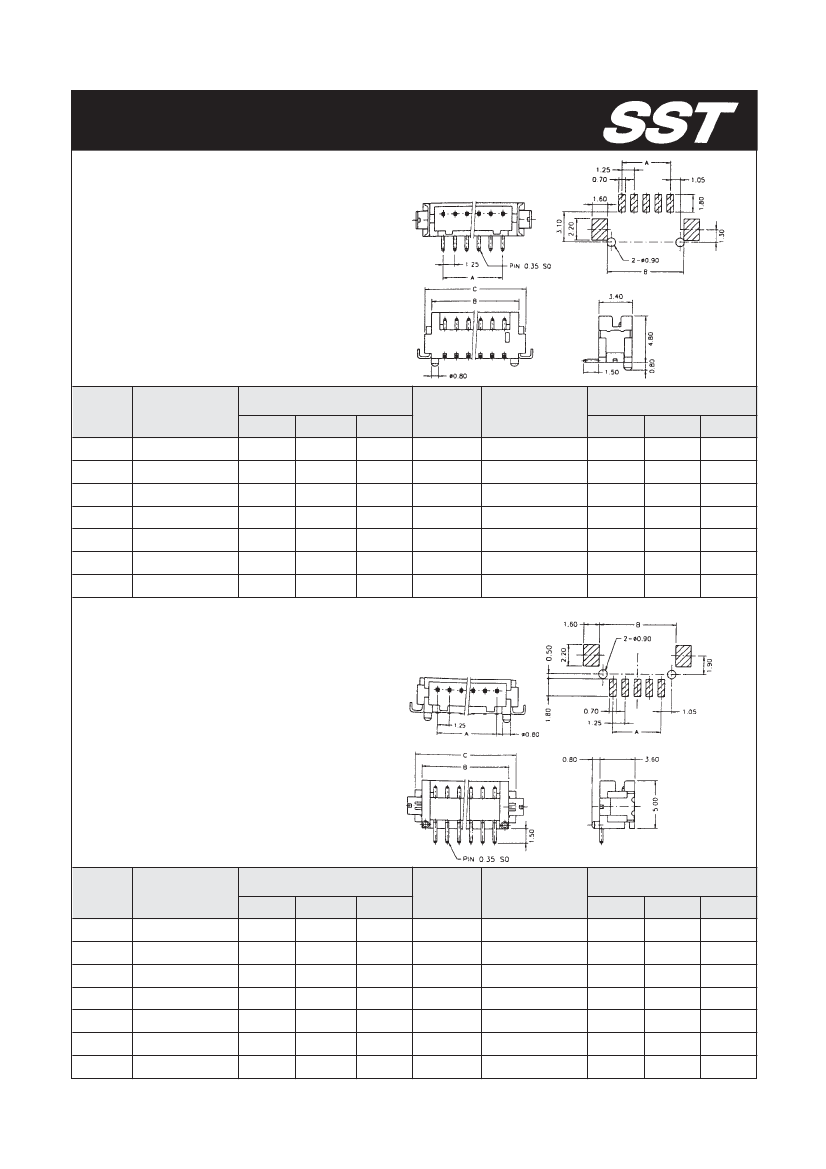

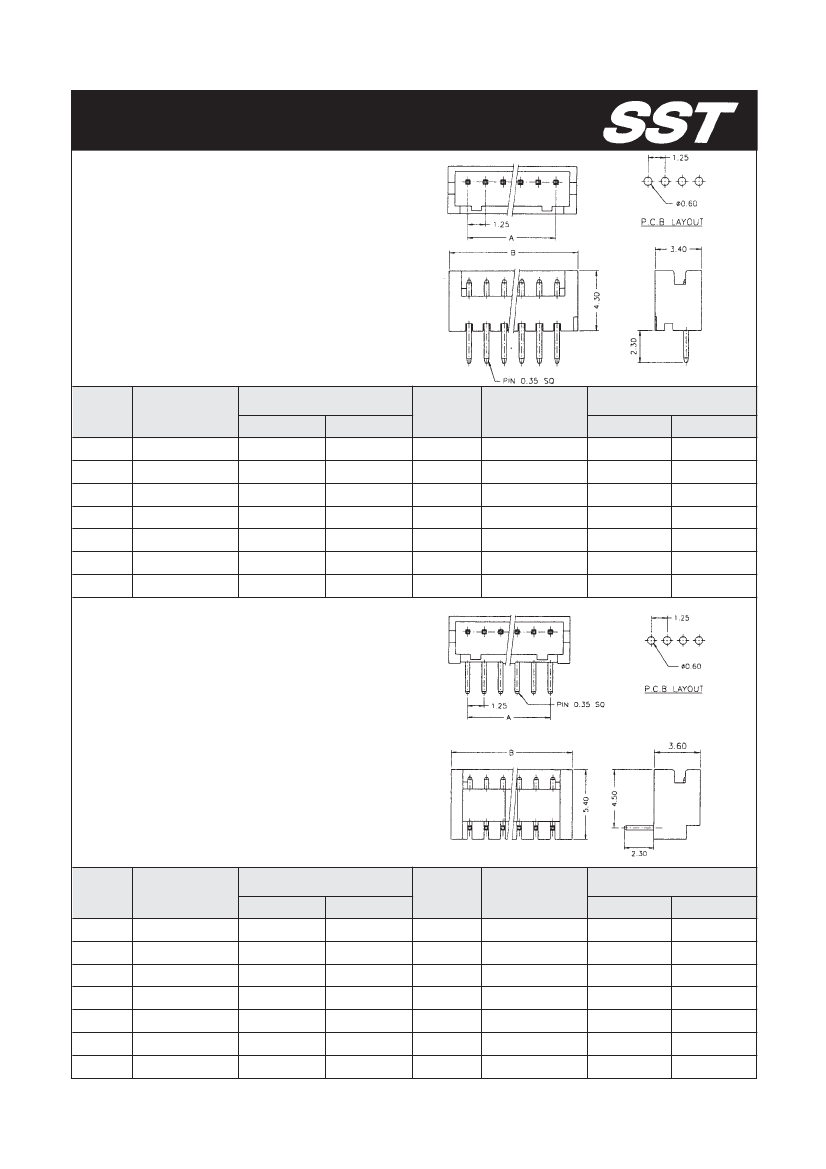

125G2 CONNECTOR SYSTEM
.049” (1.25mm) pitch wire-to-board type
WIRE RANGE
PART NO.
AWG#
125G2-TP
125G2-GP
28-32
28-32
mm
2
0.08-0.032
0.08-0.032
MATERIAL/
FINISH
PHOS/TIN
PHOS/GOLD
THICKNESS
mm
0.15
0.15
INSULATION
O.D.(mm)
1.0 MAX
1.0 MAX
REEL
PCS
10000
10000
125G2-1H SERIES HOUSING
MATERIAL : NYLON 66 UL 94V-0
MATE WITH 125G2-D(M) SERIES HEADER
ACCEPT 125G2-TP(GP) TERMINAL
CURRENT RATING : 1A AC,DC
VOLTAGE RATING : 100V AC,DC
CONTACT RESISTANCE : 20m MAX
INSULATION RESISTANCE : 500M MIN
WITHSTANDING VOLTAGE : 500V AC/MINUTE
TEMPERATURE RANGE : -25ºC TO +85ºC
POLES
2
3
4
5
6
7
8
PART NO.
125G2-1H02
125G2-1H03
125G2-1H04
125G2-1H05
125G2-1H06
125G2-1H07
125G2-1H08
DIMENSIONS (mm)
POLES
A
1.25
2.50
3.75
5.00
6.25
7.50
8.75
B
3.00
4.25
5.50
6.75
8.00
9.25
10.50
C
4.00
5.25
6.50
7.75
9.00
10.25
11.50
9
10
11
12
13
14
15
125G2-1H09
125G2-1H10
125G2-1H11
125G2-1H12
125G2-1H13
125G2-1H14
125G2-1H15
PART NO.
DIMENSIONS (mm)
A
10.00
11.25
12.50
13.75
15.00
16.25
17.50
B
11.75
13.00
14.25
15.50
16.75
18.00
19.25
C
12.75
14.00
15.25
16.50
17.75
19.00
20.25
125G2 CONNECTOR SYSTEM
.049” (1.25mm) pitch wire-to-board type
125G2-IDV SERIES HEADER
MATERIAL : NYLON 66 UL 94V-0
PIN PHOS TIN-PLATED
MATE WITH 125G2-1H SERIES HOUSING
CURRENT RATING : 1A AC, DC
VOLTAGE RATING : 100V AC, DC
CONTACT RESISTANCE : 20m MAX
INSULATION RESISTANCE : 500M MIN
WITHSTANDING VOLTAGE : 500V AC/MINUTE
TEMPERATURE RANGE : -25ºC TO +85ºC
POLES
2
3
4
5
6
7
8
PART NO.
125G2-IDV02
125G2-IDV03
125G2-IDV04
125G2-IDV05
125G2-IDV06
125G2-IDV07
125G2-IDV08
DIMENSIONS (mm)
POLES
A
1.25
2.50
3.75
5.00
6.25
7.50
8.75
B
4.15
5.40
6.65
7.90
9.15
10.40
11.65
9
10
11
12
13
14
15
125G2-IDV09
125G2-IDV10
125G2-IDV11
125G2-IDV12
125G2-IDV13
125G2-IDV14
125G2-IDV15
PART NO.
DIMENSIONS (mm)
A
10.00
11.25
12.50
13.75
15.00
16.25
17.50
B
12.90
14.15
15.40
16.65
17.90
19.15
20.40
125G2-IDR SERIES HEADER
MATERIAL : NYLON 66 UL 94V-0
PIN PHOS TIN-PLATED
MATE WITH 125G2-1H SERIES HOUSING
CURRENT RATING : 1A AC, DC
VOLTAGE RATING : 100V AC, DC
CONTACT RESISTANCE : 20m MAX
INSULATION RESISTANCE : 500M MIN
WITHSTANDING VOLTAGE : 500V AC/MINUTE
TEMPERATURE RANGE : -25ºC TO +85ºC
POLES
2
3
4
5
6
7
8
PART NO.
125G2-IDR02
125G2-IDR03
125G2-IDR04
125G2-IDR05
125G2-IDR06
125G2-IDR07
125G2-IDR08
DIMENSIONS (mm)
POLES
A
1.25
2.50
3.75
5.00
6.25
7.50
8.75
B
4.15
5.40
6.65
7.90
9.15
10.40
11.65
9
10
11
12
13
14
15
125G2-IDR09
125G2-IDR10
125G2-IDR11
125G2-IDR12
125G2-IDR13
125G2-IDR14
125G2-IDR15
PART NO.
DIMENSIONS (mm)
A
10.00
11.25
12.50
13.75
15.00
16.25
17.50
B
12.90
14.15
15.40
16.65
17.90
19.15
20.40
125G2 CONNECTOR SYSTEM
.049” (1.25mm) pitch wire-to-board type
125G2-IMV SERIES HEADER
MATERIAL : NYLON 6T UL 94V-0
PIN PHOS TIN-PLATED
MATE WITH 125G2-1H SERIES HOUSING
CURRENT RATING : 1A AC, DC
VOLTAGE RATING : 100V AC, DC
CONTACT RESISTANCE : 20m MAX
INSULATION RESISTANCE : 500M MIN
WITHSTANDING VOLTAGE : 500V AC/MINUTE
TEMPERATURE RANGE : -25ºC TO +85ºC
POLES
2
3
4
5
6
7
8
PART NO.
125G2-IMV02
125G2-IMV03
125G2-IMV04
125G2-IMV05
125G2-IMV06
125G2-IMV07
125G2-IMV08
DIMENSIONS (mm)
POLES
A
1.25
2.50
3.75
5.00
6.25
7.50
8.75
B
4.15
5.40
6.65
7.90
9.15
10.40
11.65
C
5.65
6.90
8.15
9.40
10.65
11.90
13.15
9
10
11
12
13
14
15
125G2-IMV09
125G2-IMV10
125G2-IMV11
125G2-IMV12
125G2-IMV13
125G2-IMV14
125G2-IMV15
PART NO.
DIMENSIONS (mm)
A
10.00
11.25
12.50
13.75
15.00
16.25
17.50
B
12.90
14.15
15.40
16.65
17.90
19.15
20.40
C
14.40
15.65
16.90
18.15
19.40
20.65
21.90
125G2-IMR SERIES HEADER
MATERIAL : NYLON 6T UL 94V-0
PIN PHOS TIN-PLATED
MATE WITH 125G2-1H SERIES HOUSING
CURRENT RATING : 1A AC, DC
VOLTAGE RATING : 100V AC, DC
CONTACT RESISTANCE : 20m MAX
INSULATION RESISTANCE : 500M MIN
WITHSTANDING VOLTAGE : 500V AC/MINUTE
TEMPERATURE RANGE : -25ºC TO +85ºC
POLES
2
3
4
5
6
7
8
PART NO.
125G2-IMR02
125G2-IMR03
125G2-IMR04
125G2-IMR05
125G2-IMR06
125G2-IMR07
125G2-IMR08
DIMENSIONS (mm)
POLES
A
1.25
2.50
3.75
5.00
6.25
7.50
8.75
B
4.15
5.40
6.65
7.90
9.15
10.40
11.65
C
5.65
6.90
8.15
9.40
10.65
11.90
13.15
9
10
11
12
13
14
15
125G2-IMR09
125G2-IMR10
125G2-IMR11
125G2-IMR12
125G2-IMR13
125G2-IMR14
125G2-IMR15
PART NO.
DIMENSIONS (mm)
A
10.00
11.25
12.50
13.75
15.00
16.25
17.50
B
12.90
14.15
15.40
16.65
17.90
19.15
20.40
C
14.40
15.65
16.90
18.15
19.40
20.65
21.90
125G2 CONNECTOR SYSTEM
.049” (1.25mm) pitch wire-to-board type
125G2-2H SERIES HOUSING
MATERIAL : NYLON 66 UL 94V-0
ACCEPT 125G2-T(G)P TERMINAL
MATE WITH 125G2-2MR HEADER
CURRENT RATING : 1A AC,DC
VOLTAGE RATING : 100V AC,DC
CONTACT RESISTANCE : 20m MAX
INSULATION RESISTANCE : 500M MIN
WITHSTANDING VOLTAGE : 500V AC/MINUTE
TEMPERATURE RANGE : -25ºC TO +85ºC
POLES
10
20
PART NO.
125G2-2H10
125G2-2H20
DIMENSIONS (mm)
POLES
A
8.00
14.25
B
5.00
11.25
30
40
125G2-2H30
125G2-2H40
PART NO.
DIMENSIONS (mm)
A
20.50
26.75
B
17.50
23.75
125G1-2MR SERIES HEADER
MATERIAL : NYLON 66 UL 94V-0
PIN PHOS TIN-PLATED
ACCEPT 125G2-TP(GP) TERMINAL
MATE WITH 125G2-2H SERIES HOUSING
CURRENT RATING : 1A AC,DC
VOLTAGE RATING : 100V AC,DC
CONTACT RESISTANCE : 20m MAX
INSULATION RESISTANCE : 500M MIN
WITHSTANDING VOLTAGE : 500V AC/MINUTE
TEMPERATURE RANGE : -25ºC TO +85ºC
POLES
10
20
PART NO.
A
125G2-2MR10
DIMENSIONS (mm)
POLES
B
8.11
C
11.95
D
7.50
30
40
125G2-2MR30
125G2-2MR40
5.00
PART NO.
DIMENSIONS (mm)
A
B
C
D
17.50 20.60 24.45 20.00
23.75 26.85 30.70 26.25
125G2-2MR20 11.25 14.35
18.20 13.75
