Card Edge Connector, 120 Contact(s), 2 Row(s), Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Green Insulator, Receptacle

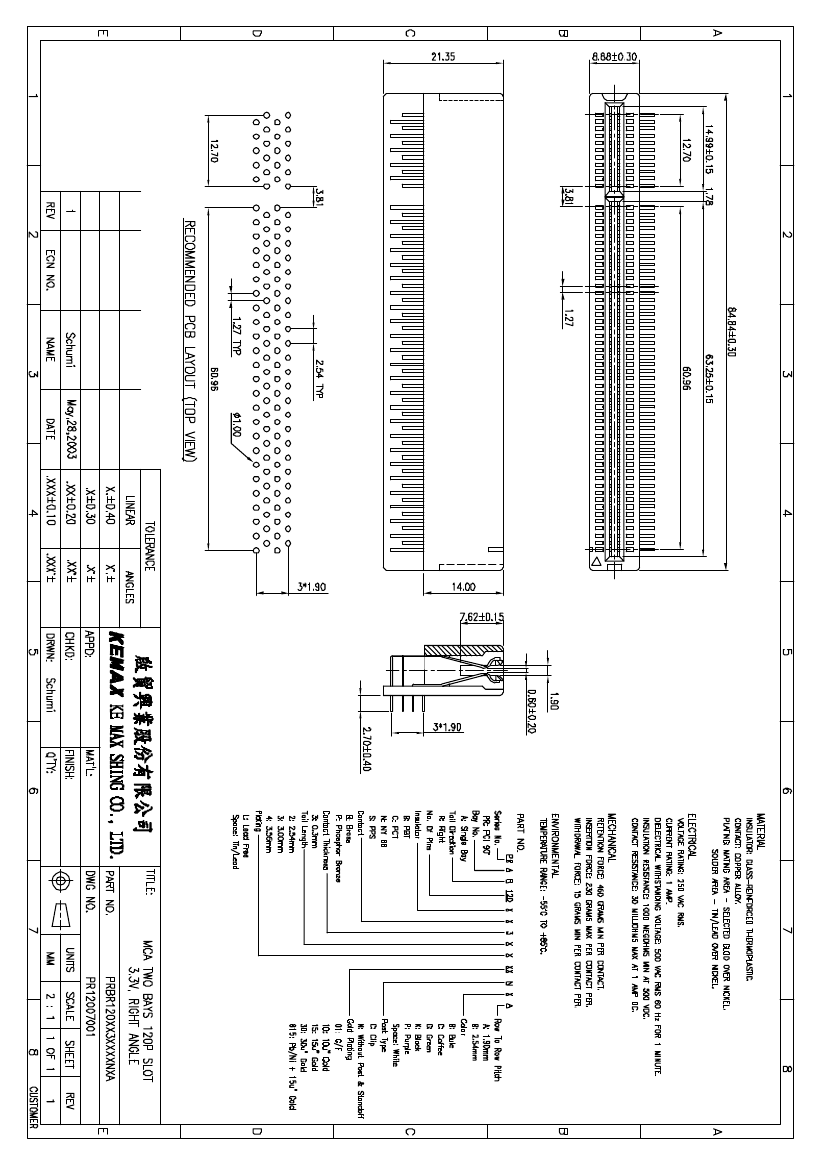

| Parameter Name | Attribute value |
| Objectid | 1166257937 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | LEAD FREE |
| body width | 0.35 inch |
| subject depth | 0.841 inch |
| body length | 3.34 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 30 mΩ |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 500VAC V |
| maximum insertion force | 2.224 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | GREEN |
| insulator material | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | PR |
| Plug contact pitch | 0.05 inch |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 1.905 mm |
| Plating thickness | 10u inch |
| Rated current (signal) | 1 A |
| reliability | COMMERCIAL |
| Terminal length | 0.118 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 120 |
| Evacuation force-minimum value | .139 N |
