PD - 90579
REPETITIVE A ALANCHE AND dv/dt RATED
V
HEXFET TRANSISTORS
THRU-HOLE (TO-204AA/AE)
Product Summary
Part Number
IRFAE40
IRFAE40
800V, N-CHANNEL
BVDSS
800V
R
DS(on)
2.0Ω
I
D
4.8Α
The HEXFET technology is the key to International
Rectifier’s advanced line of power MOSFET transistors.
The efficient geometry and unique processing of this latest
“State of the Art” design achieves: very low on-state resis-
tance combined with high transconductance; superior re-
verse energy and diode recovery dv/dt capability.
The HEXFET transistors also feature all of the well estab-
lished advantages of MOSFETs such as voltage control,
very fast switching, ease of paralleling and temperature
stability of the electrical parameters.
They are well suited for applications such as switching
power supplies, motor controls, inverters, choppers, audio
amplifiers and high energy pulse circuits.
TO-3
Features:
n
n
n
n
n
Repetitive Avalanche Ratings
Dynamic dv/dt Rating
Hermetically Sealed
Simple Drive Requirements
Ease of Paralleling
Absolute Maximum Ratings
Parameter
ID @ VGS =0V, TC = 25°C
ID @ VGS = 0V, TC = 100°C
I DM
PD @ TC = 25°C
VGS
EAS
IAR
EAR
dv/dt
TJ
T STG
Continuous Drain Current
Continuous Drain Current
Pulsed Drain Current
➀
Max. Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy
➁
Avalanche Current
➀
Repetitive Avalanche Energy
➀
Peak Diode Recovery dv/dt
➂
Operating Junction
Storage Temperature Range
Lead Temperature
Weight
For footnotes refer to the last page
4.8
3.0
19
125
1.0
±20
550
4.8
12.5
2.0
-55 to 150
300 (0.063 in. (1.6mm) from case for 10s)
11.5(typical)
Units
A
W
W/°C
V
mJ
A
mJ
V/ns
o
C
g
www.irf.com
1
01/24/01
IRFAE40
Electrical Characteristics
Parameter
BVDSS
∆BV
DSS/∆TJ
RDS(on)
VGS(th)
gfs
IDSS
@ Tj = 25°C (Unless Otherwise Specified)
Min
800
—
—
—
2.0
3.9
—
—
—
—
48
5.3
30
—
—
—
—
—
Typ Max Units
—
0.98
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
6.1
—
—
2.0
2.3
4.0
—
25
250
100
-100
110
12
68
24
42
170
44
—
V
V/°C
Ω
V
S( )
µA
Ω
Test Conditions
VGS = 0V, ID = 1.0mA
Reference to 25°C, ID = 1.0mA
VGS = 10V, ID = 3.0A
➃
VGS = 10V, ID =4.8A
➃
VDS = VGS, ID =250µA
VDS > 15V, IDS = 3.0A
➃
VDS=640V, VGS=0V
VDS = 640V
VGS = 0V, TJ = 125°C
VGS = 20V
VGS = -20V
VGS = 10V, ID=4.8A
VDS =400V
VDD =400V, ID =4.8A,
RG =9.1Ω
Drain-to-Source Breakdown Voltage
Temperature Coefficient of Breakdown
Voltage
Static Drain-to-Source On-State
Resistance
Gate Threshold Voltage
Forward Transconductance
Zero Gate Voltage Drain Current
IGSS
I GSS
Qg
Qgs
Qgd
td
(on)
tr
td
(off)
tf
LS + LD
Gate-to-Source Leakage Forward
Gate-to-Source Leakage Reverse
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain (‘Miller’) Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Total Inductance
nA
nC
ns
nH
Measured from drain lead (6mm/0.25in. from
package) to source lead (6mm/0.25in. from
package)
Ciss
Coss
Crss
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
—
—
—
1700
230
96
—
—
pF
VGS = 0V, VDS = 25V
f = 1.0MHz
Source-Drain Diode Ratings and Characteristics
Parameter
IS
ISM
VSD
t rr
QRR
ton
Continuous Source Current (Body Diode)
Pulse Source Current (Body Diode)
➀
Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
Forward Turn-On Time
Min Typ Max Units
—
—
—
—
—
—
—
—
—
—
4.8
19
1.8
1300
8.5
Test Conditions
A
V
nS
µC
T
j
= 25°C, IS =4.8A, VGS = 0V
➃
Tj = 25°C, IF = 4.8A, di/dt
≤
100A/µs
VDD
≤
50V
➃
Intrinsic turn-on time is negligible. Turn-on speed is substantially controlled by LS + LD.
Thermal Resistance
Parameter
RthJC
R thJA
Junction to Case
Junction to Ambient
Min Typ Max Units
—
—
—
—
1.0
30
°C/W
Test Conditions
Typical socket mount
For footnotes refer to the last page
2
www.irf.com
IRFAE40

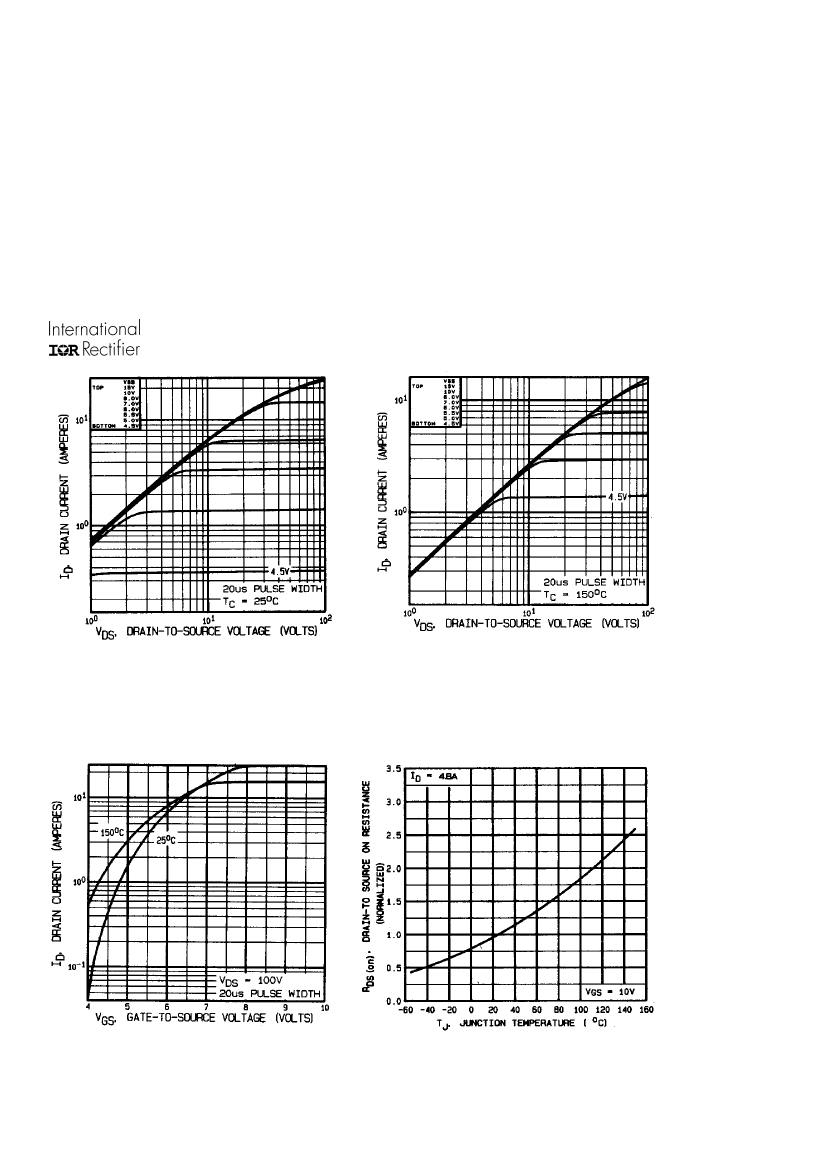

Fig 1.
Typical Output Characteristics
Fig 2.
Typical Output Characteristics
Fig 3.
Typical Transfer Characteristics
Fig 4.
Normalized On-Resistance
Vs. Temperature
www.irf.com
3
IRFAE40
13 a& b

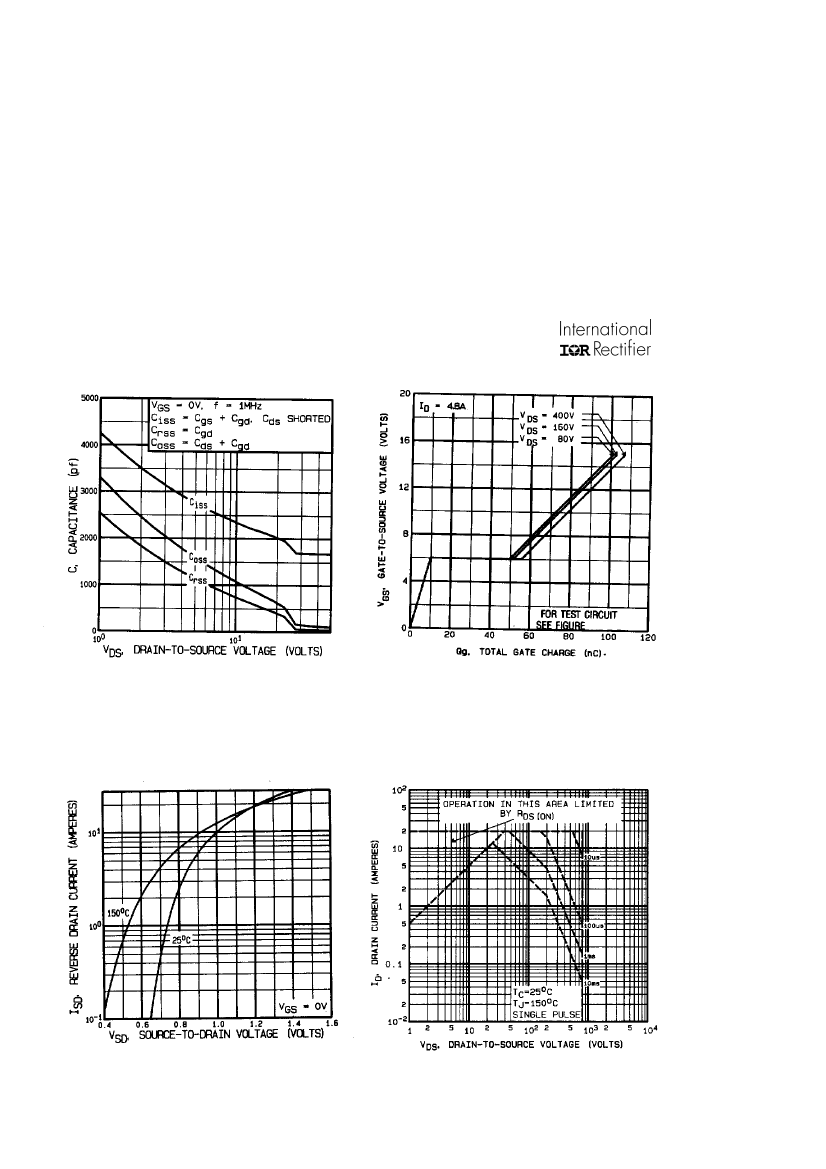

Fig 5.
Typical Capacitance Vs.
Drain-to-Source Voltage
Fig 6.
Typical Gate Charge Vs.
Gate-to-Source Voltage
Fig 7.
Typical Source-Drain Diode
Forward Voltage
Fig 8.
Maximum Safe Operating Area
4
www.irf.com
IRFAE40
V
DS
V
GS
R
G
R
D
D.U.T.
+
-
V
DD
10V
Pulse Width
≤ 1
µs
Duty Factor
≤ 0.1 %
Fig 10a.
Switching Time Test Circuit
V
DS
90%
10%
V
GS

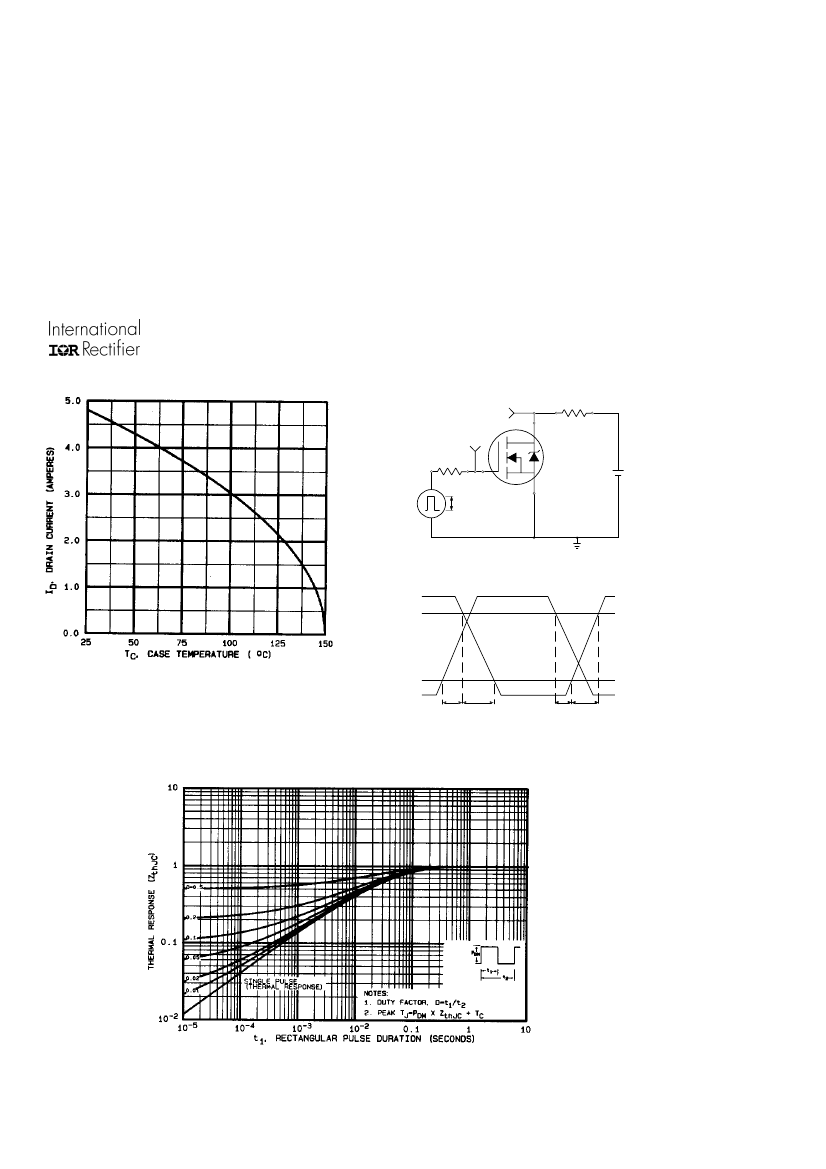

Fig 9.
Maximum Drain Current Vs.
Case Temperature
t
d(on)
t
r
t
d(off)
t
f
Fig 10b.
Switching Time Waveforms
Fig 11.
Maximum Effective Transient Thermal Impedance, Junction-to-Case
www.irf.com
5
