241A15530X

Description
D Subminiature Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle
CategoryThe connector    The connector
File Size134KB，2 Pages
ManufacturerCONEC
Websitehttp://www.conec.com
Download Datasheet Parametric View All

241A15530X Online Shopping

Suppliers Part Number Price MOQ In stock
241A15530X - - View Buy Now

241A15530X Overview

D Subminiature Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

241A15530X Parametric

Parameter NameAttribute value
Objectid1294711837
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresWITH SPACER CLIP
body width0.509 inch
body length2.65 inch
Body/casing typeRECEPTACLE
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact resistance10 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage424VDC V
Filter functionYES
maximum insertion force3.336 N
Insulation resistance100000000 Ω
insulator materialGLASS FILLED POLYESTER
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1#4-40
Installation option 2THREADED
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number3
Number of rows loaded3
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Housing size5/D
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts50
Evacuation force-minimum value2.224 N

Preview

Download Datasheet

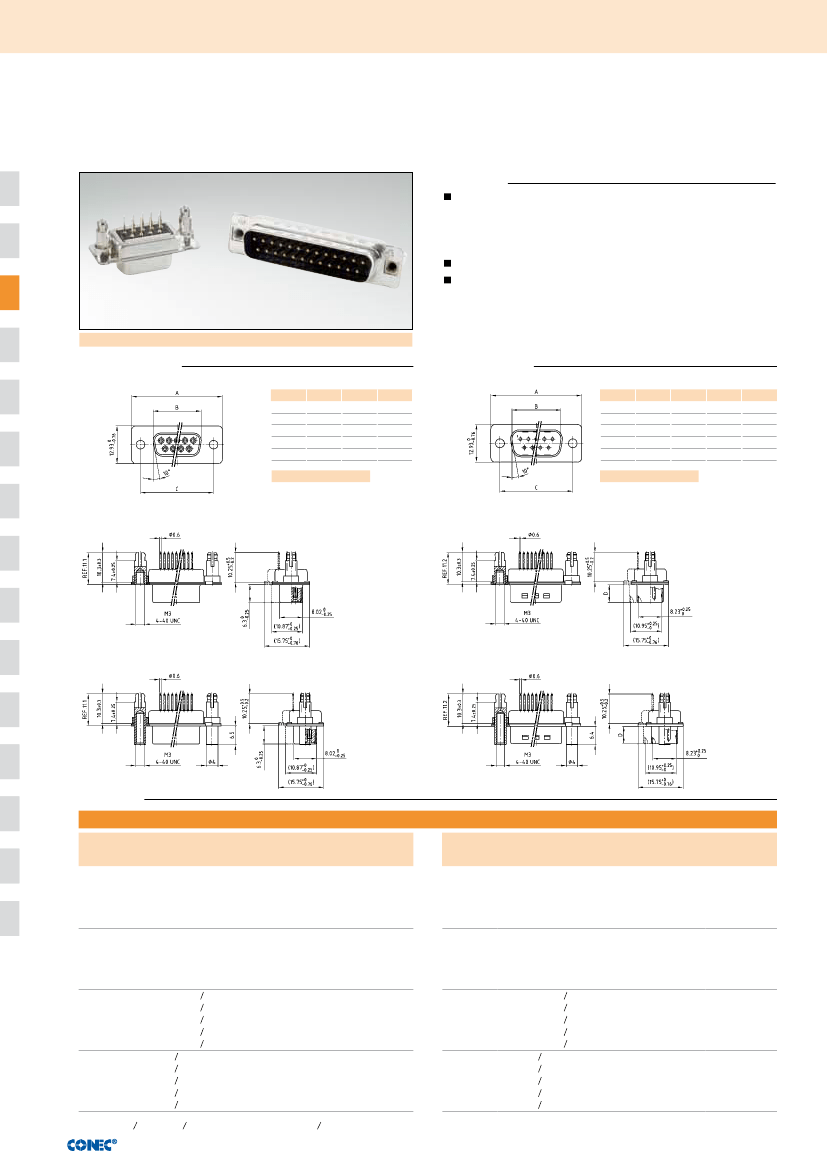

Filt e r D- S UB Co n nec to rs
C-Filter D-SUB Standard
Solder pin – Straight – Precision machined contacts
Description
Mounting styles:
- with 4-40 UNC or M3 threaded rear spacer with PCB clip
- with 4-40 UNC or M3 front and threaded rear spacer with
PCB clip
Quality class 3 (also available in quality class 1)
Shell: Steel tin plated (brass tin plated on request)
RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784
Socket connector
No. of pos.
09
15
25
37
50
Plug connector
A
-0.76
31.19
39.52
53.42
69.70
67.31
B
-0.25
16.46
24.79
38.50
54.96
52.55
C
25.00
33.30
47.04
63.50
61.10
+ 0.12
- 0.13
+ 0.15
- 0.10
± 0.13
± 0.13
+ 0.14
- 0.11
No. of pos.
09
15
25
37
50
A
-0.76
31.19
39.52
53.42
69.70
67.31
B
+0.25
16.79
25.12
38.84
55.30
52.68
C
25.00
33.30
47.04
63.50
61.10
+ 0.12
- 0.13
+ 0.15
- 0.10
± 0.13
± 0.13
+ 0.14
- 0.11
D
-0.3
6.12
6.12
5.99
5.99
5.99
PCB layout: Kat1kFUA
PCB layout: Kat1kFUA
Mounting style: Threaded rear spacer with PCB clip
Mounting style: Threaded rear spacer with PCB clip
Mounting style: Front and threaded rear spacer with PCB clip
Mounting style: Front and threaded rear spacer with PCB clip
50 pos. = Dim. in (_ _)
50 pos. = Dim. in (_ _)
Order data
Capacitance 180 pF
Socket connector
No. of pos. Mounting style
09
15
25
37
50
09
15
25
37
50
09
15
25
37
50
09
15
25
37
50
4-40 UNC Threaded rear spacer PCB clip
4-40 UNC Threaded rear spacer PCB clip
4-40 UNC Threaded rear spacer PCB clip
4-40 UNC Threaded rear spacer PCB clip
4-40 UNC Threaded rear spacer PCB clip
M3 Threaded rear spacer PCB clip
M3 Threaded rear spacer PCB clip
M3 Threaded rear spacer PCB clip
M3 Threaded rear spacer PCB clip
M3 Threaded rear spacer PCB clip
4-40 UNC Front Threaded rear spacer PCB clip
4-40 UNC Front Threaded rear spacer PCB clip
4-40 UNC Front Threaded rear spacer PCB clip
4-40 UNC Front Threaded rear spacer PCB clip
4-40 UNC Front Threaded rear spacer PCB clip
M3 Front Threaded rear spacer PCB clip
M3 Front Threaded rear spacer PCB clip
M3 Front Threaded rear spacer PCB clip
M3 Front Threaded rear spacer PCB clip
M3 Front Threaded rear spacer PCB clip
Plug connector
Part Number
242 A 16460
242 A 16470
242 A 16480
242 A 16490
242 A 16500
242 A 16510
242 A 16520
242 A 16530
242 A 16540
242 A 16550
242 A 16560
242 A 16570
242 A 16580
242 A 16590
242 A 16600
242 A 16610
242 A 16620
242 A 16630
242 A 16640
242 A 16650
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
No. of pos. Mounting style
09
15
25
37
50
09
15
25
37
50
09
15
25
37
50
09
15
25
37
50
4-40 UNC Threaded rear spacer PCB clip
4-40 UNC Threaded rear spacer PCB clip
4-40 UNC Threaded rear spacer PCB clip
4-40 UNC Threaded rear spacer PCB clip
4-40 UNC Threaded rear spacer PCB clip
M3 Threaded rear spacer PCB clip
M3 Threaded rear spacer PCB clip
M3 Threaded rear spacer PCB clip
M3 Threaded rear spacer PCB clip
M3 Threaded rear spacer PCB clip
4-40 UNC Front Threaded rear spacer PCB clip
4-40 UNC Front Threaded rear spacer PCB clip
4-40 UNC Front Threaded rear spacer PCB clip
4-40 UNC Front Threaded rear spacer PCB clip
4-40 UNC Front Threaded rear spacer PCB clip
M3 Front Threaded rear spacer PCB clip
M3 Front Threaded rear spacer PCB clip
M3 Front Threaded rear spacer PCB clip
M3 Front Threaded rear spacer PCB clip
M3 Front Threaded rear spacer PCB clip
Part Number
241 A 19080
241 A 19090
241 A 19100
241 A 19110
241 A 19120
241 A 19130
241 A 19140
241 A 19150
241 A 19160
241 A 19170
241 A 19180
241 A 19190
241 A 19200
241 A 19210
241 A 19220
241 A 19230
241 A 19240
241 A 19250
241 A 19260
241 A 19270
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
PCB clip .122” 3.1 ± .004” 0.10 mm hole diameter and .063” 1.6 mm circuit board thickness
