PR405W-NWR120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PR405W-NWR120

PR405W-NWR120: DescriptionSingle Color LED, Red, Water Clear, T-1 3/4, 5.08mm,; CategoryLED optoelectronic/LED photoelectric; File Size98KB，2 Pages; ManufacturerDDP Engineered LED Solutions; Environmental Compliance

Download Datasheet Parametric View All

PR405W-NWR120 Overview

Single Color LED, Red, Water Clear, T-1 3/4, 5.08mm,

PR405W-NWR120 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1983726628
Reach Compliance Code	unknown
color	RED
color@wavelength	Orange-Red
Configuration	SINGLE
Maximum forward current	0.0035 A
Maximum forward voltage	130 V
Lens type	WATER CLEAR
Nominal luminous intensity	2800.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	22.35 mm
method of packing	BULK
peak wavelength	634 nm
shape	ROUND
size	5.08 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	3.18 mm
perspective	30 deg

Preview

Download Datasheet

View All

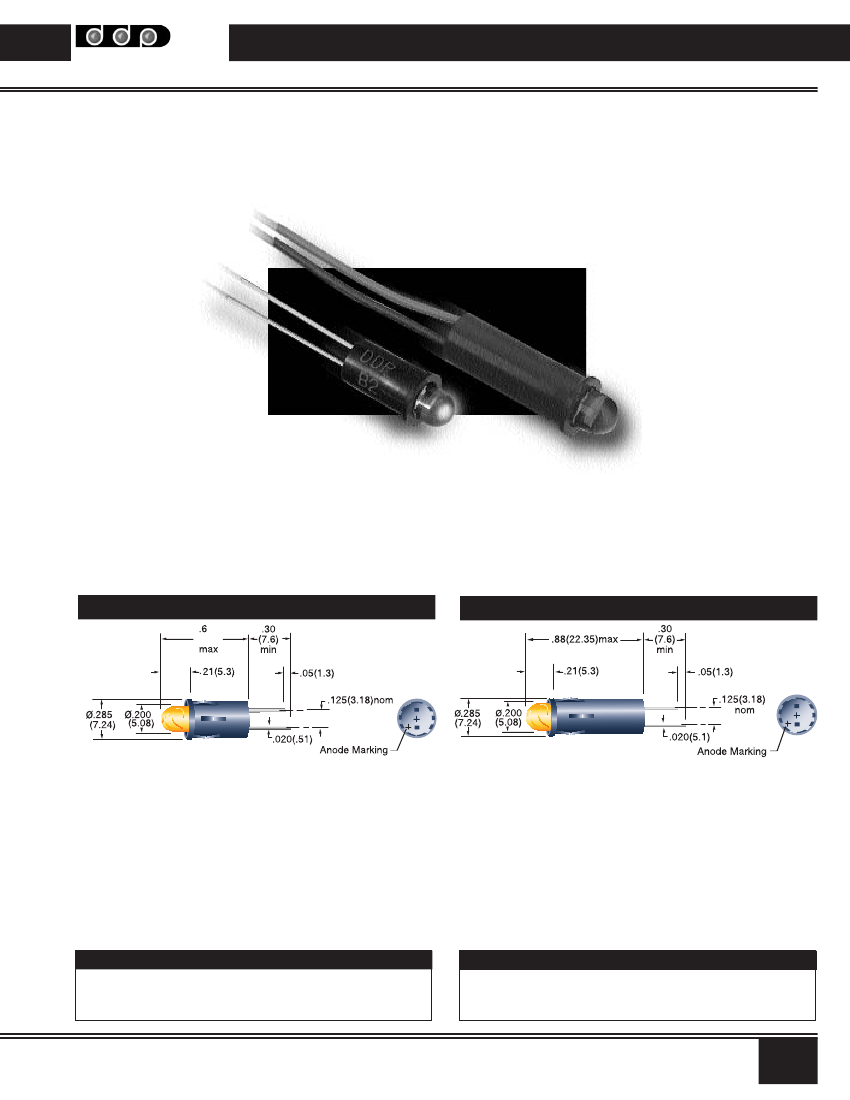

.250" SNAP-IN PANEL LIGHT

T-1

Standard Profile

Data Display Products

- Mounting Diameter .249"(6.32) to .252"(6.40) - For Panels .031"(.79) to .125" (3.18) Thick

- For Detailed LED Data, See Discrete Section, MODEL 200

TO ORDER, FOLLOW THE EXAMPLE:

Select one

BOLD

component from each numbered category in the tables below.

Model

LED

Voltage

PR405

-BR

12H

Part Number

PR405-BR12H:

Model

P405

PR405

Wires

(optional)

Description

Voltage = 2 (External Resistor Required)

Voltages 5H - 120

Voltage/Current

Design

Max

Vf/If

V/C Table I

5V/22mA

5.5V/28mA

14V/25mA

12V/20mA

15V/24mA

16.5V/28mA

24V/17mA

26V/20mA

28V/16.5mA

30V/18mA

48V/15mA

50V/16mA

60V/9mA

65V/10mA

120VAC/3.5mA

130VAC/4mA

Voltage/Current

Design

Max

Vf/If

V/C Table II

5V/15mA

5.5V/23mA

12V/15mA

14V/20mA

15V/15mA

16.5V/18mA

24V/15mA

26V/18mA

28V/15mA

30V/17mA

48V/9.5mA

50V/10mA

60V/7mA

65V/8mA

120VAC/3.5mA

130VAC/4mA

Voltage

[3]

12H

15H

24H

28H

48H

60H

120

[4]

LED

-BR

-BA

-BG

STANDARD INTENSITY - DIFFUSED ENCAPSULATION

λpk

Color

RED

AMB

GRN

(nm)

[1]

(mcd)

Viewing

V/C

Table

[2]

Angle

635

583

565

MEDIUM INTENSITY - TINTED ENCAPSULATION

LED

-BCR

-BCA

-BCG

λpk

Color

RED

AMB

GRN

(nm)

[1]

(mcd)

Viewing

V/C

Table

[2]

Angle

635

583

565

120

100

HIGH INTENSITY - WATERCLEAR ENCAPSULATION

LED

-NWR

-NWO

-NWA

-NWG

-NWB

-NWW

-NWL

-NKR

-NKO

-NKA

-NKG

-NKB

-NKW

-NKL

λpk

Color

RED

ORG

AMB

GRN

BLU

CWHT

WWHT

RED

ORG

AMB

GRN

BLU

CWHT

WWHT

(nm)

[1]

(mcd)

Viewing

V/C

Table

[2]

Angle

634

605

592

520

465

634

605

592

520

465

2800

2000

2800

2400

700

2500

1800

3600

8000

3600

10000

3000

9200

SPECIALTY LEDs - DIFFUSED ENCAPSULATION

LED

-RLP

[5]

-ALP

[5]

-GLP

[5]

-LRG

λpk

Color

RED

AMB

GRN

RED/GRN

(nm)

[1]

(mcd)

Viewing

V/C

Table

[3]

Angle

Description

Low Power

Bi-Color, Red Cathode

[4] Select high intensity LEDs only.

[5] Omit the H when selecting voltage (e.g. PR405-RLP12).

635

583

565

660/565

2.3

2.1

2.3

90/40

[1] Iv = typical luminous intensity @ If = 20mA (Ta=25°C), Low Power LEDs @ If = 2mA.

[2] See Voltage/Current table for design specifications. Design current for low power LEDs = 2mA.

[3] Ta = 25°C. Voltages 5H through 60H and VDC. For AC operation, insert D after Voltage (e.g. 24HD).

D indicates built-in rectifier, not required for 5H or 120VAC. DC operation

not available for 120V. Bi-Color not available in AC voltages.

445 S. Douglas Street, El Segundo, CA 90245-4630 • (800) 421-6815 • (310) 640-0442 • FAX (310) 640-7639

ww w.datadisplay.com
