11S121T1C-09-XLY-00 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 11S121T1C-09-XLY-00

Preview

11S121T1C-09-XLY-00: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size226KB，1 Pages; ManufacturerGSN Electronics

Download Datasheet Parametric View All

11S121T1C-09-XLY-00 Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug

11S121T1C-09-XLY-00 Parametric

Parameter Name	Attribute value
Objectid	304407892
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.071 inch
subject depth	0.134 inch
body length	0.45 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	11S121T1C
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

Total Process Quality

11S121T1C

11S121T1D

female header vertical THT 1.27

11S121T1B

GSN

(1.27 x n) +0.34

1.80

(1.27 x n) +0.34

1.80

1.27x n

2.60

0.37

3.40

0.85

4.30

1.27

1.27 x (n -1)

1.27

1.27 x (n -1)

1.27

1.27 x (n -1) ±0.30

1.27±0.05

Ø0.75+0.05

1.27±0.05

Ø0.75+0.05

1.27±0.05

Ø0.7±0.05

available pole no.:

03 to 36

available pole no.:

03 to 36

3.00±0.25

4.60

0.85

2.40

available pole no.:

02 to 40

mates with male header:

0.4x0.4mm

mates with male header:

0.4x0.4mm

mates with male header:

0.46x0.46mm

11S121T1A

11S122T1A

11S122T1B

1.27

2.38

8.50

6.10

double row

1.27

1.27x(n/2 -1)

2.40

0.85

2.44

0.30

1.27

1.27 x n

(1.27xn/2) +0.35

(1.27xn/2) +0.46

3.10

3.00

0.85

3.40

1.27

1.27 x (n -1)

2.70

1.27

1.27x(n/2 -1)

2.40

1.27

1.27±0.05

Ø0.7±0.05

1.27±0.05

Ø0.75+0.05

available pole no.:

03 to 36

available pole no.:

06 to 100

available pole no.:

06 to 100

mates with male header:

0.46x0.46mm

Shown fotos may differ to final product

Currently valid drawings are only on www.gsn.sg

In case of any doubt, please contact GSN

mates with male header:

0.4x0.4mm

mates with male header:

0.4x0.4mm

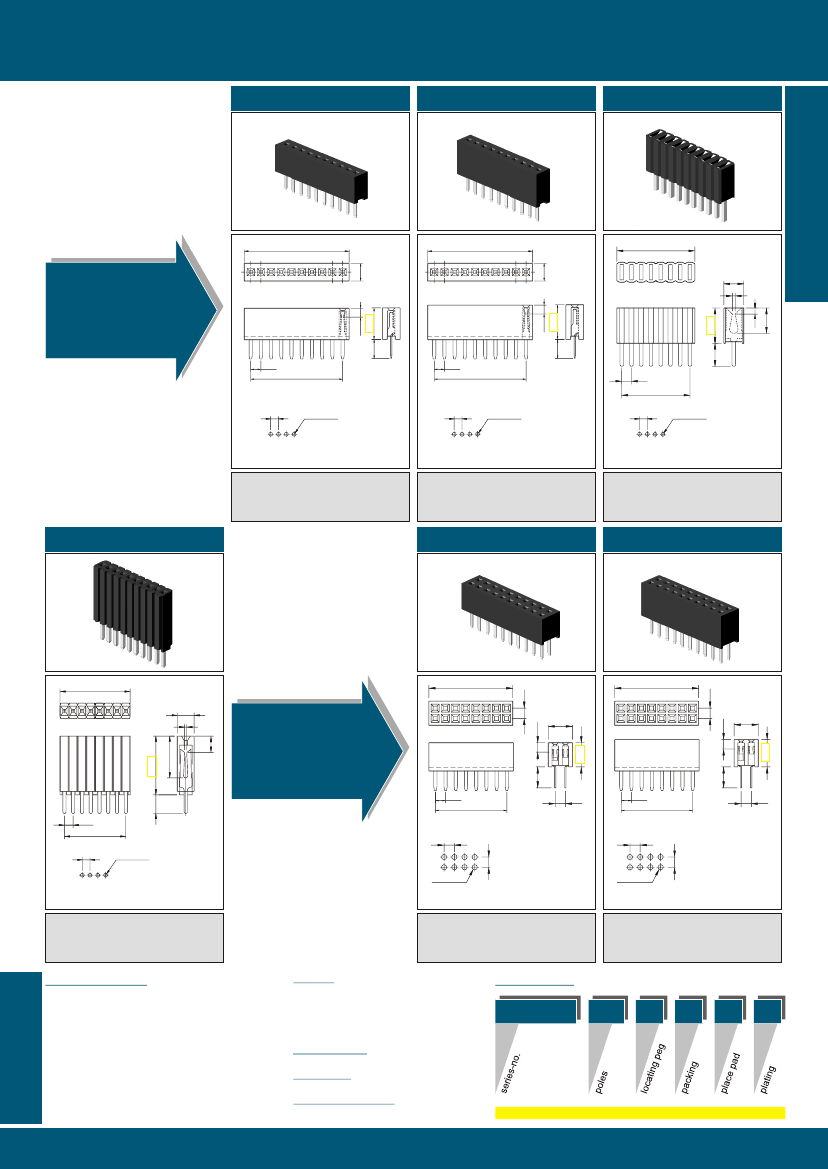

technical data

contact material

insulator

flammability

dielectric strength

current rating

insulation resistance

contact resistance

operating temperature

soldering temperature

: phosphor bronze

: thermoplastic

: UL 94V-0

:

500V AC for 1 minute

1A

500 Meg Ohm min

20 milli Ohm max

plating

00=

30=

50=

60=

flash gold

selective gold 0.75µm

tin

selective flash gold

X=without

Y=without, P=with

order code

11S121T1C-

06 -

X

L

Y-

60

locating peg

place pad

: -40°C to +105°C

: 260°C max / 10 sec

possible packing

L=loose,

P=tray,

T=tube

other dimensions / materials are available, please contact us

support@gsn.sg

4.30

3.00

single row

A14

board to board
