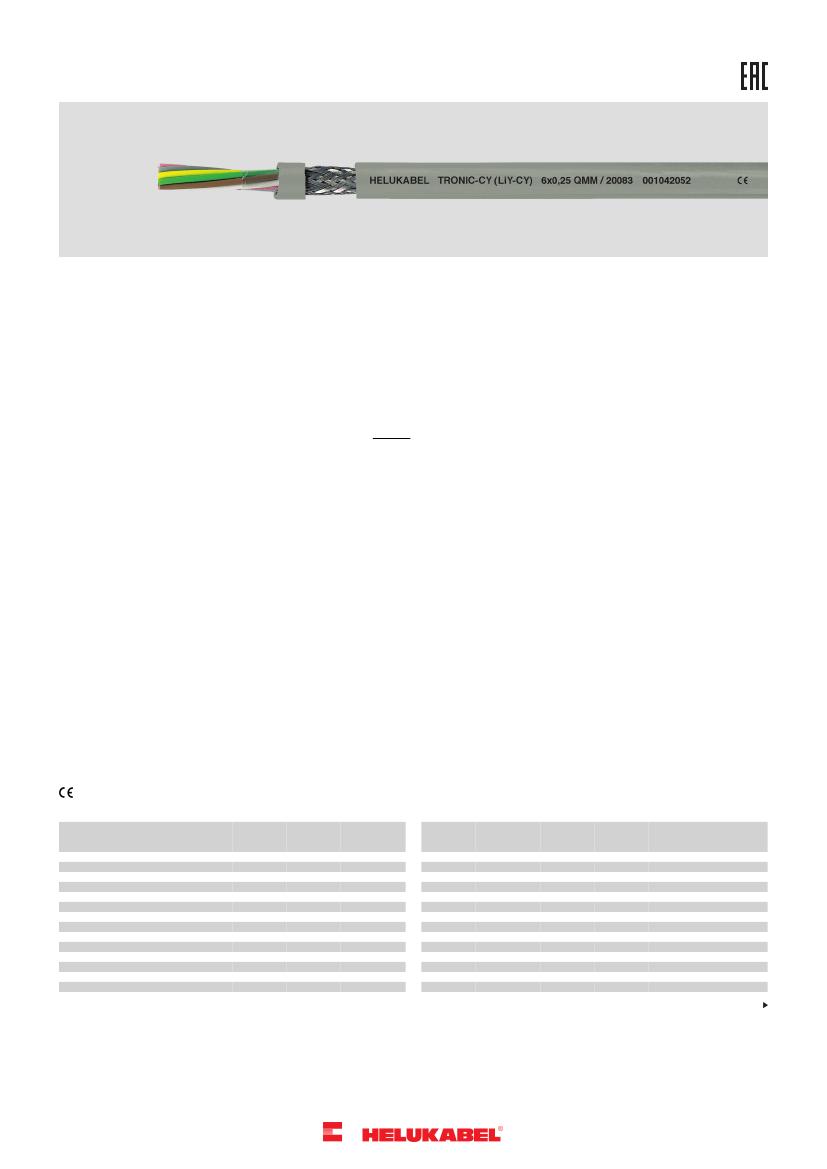

TRONIC-CY (LiY-CY)
flexible, colour coded to DIN 47100, screened, meter marking, EMC-preferred type
Technical data
•
Special-PVC data cable
adapted to DIN VDE 0812
• Temperature range
flexing -5°C to +80°C
fixed installation -40°C to +80°C
• Operating peak voltage
(not for heavy current installation purposes)
0,14 mm² 350 V
≥ 0,25 mm² 500 V
• Test voltage
core/core 1200 V
core/screen 800 V
• Breakdown voltage
min. 2400 V
• Capacitance at 800 Hz
core/core 0,14 mm² app. 120 pF/m
core/core 0,25 mm² app. 150 pF/m
core/screen 0,14 mm² app. 240 pF/m
core/screen 0,25 mm² app. 270 pF/m
• Inductance
approx. 0,65 mH/km
• Impedance
approx. 78 Ohm
• Coupling resistance
max. 250 Ohm/km
• Minimum bending radius
flexing 10x cable Ø
fixed installation 5x cable Ø
• Radiation resistance
up to 80x10
6
cJ/kg (up to 80 Mrad)
Cable structure
•
Bare copper conductor, from 0,5 mm² to
DIN VDE 0295 cl.5, fine wire,
BS 6360 cl.5, IEC 60228 cl.5
•
Conductor construction:
0,14 mm² approx. 18x0,1 mm
0,25 mm² approx. 14x0,15 mm
0,34 mm² = 7x0,25 mm
•
Core insulation of special PVC
compound type TI2 to
DIN VDE 0207-363-3 / DIN EN 50363-3
•
Core identification adapted to
DIN 47100, without colour repetition
•
Cores stranded in layers with
optimal lay length
•
Foil wrapping
•
Drain-wire, tinned
•
Tinned, copper braided screen,
approx. 85% coverage
•
Outer sheath of special PVC
compound type TM2 to
DIN VDE 0207-363-4-1/DIN EN 50363-4-1
•
Sheath colour: grey (RAL 7001)
•
With meter marking
Properties
•
Extensively oil resistant,
oil-/chemical resistance
see "Technical Informations"
•
The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
Tests
•
PVC self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2,
DIN EN 60332-1-2, IEC 60332-1-2
Note
•
Also available in paired version, see
HELUKABEL
®
-PAAR-TRONIC-CY
•
For 1 core cable screen of
helically wound (LiY-DY).
•
AWG sizes are approximate equivalent
values. The actual cross section is in mm².
•
Unscreened analogue type:
TRONIC (LiYY)
Application
These screened cables are used for flexible use with free movement without tensile stress or forced movements in dry, moist and wet rooms but not
suitable for open air, wherever the construction requirements call for a minimum outer diameter, TRONIC is the suitable cable to use. This applies
especially to such areas as tool making and machine industries as well as electronic, computer, measurement and control sectors. The extremely small
outer diameter make suitable for miniature plugs etc.
EMC
= Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
= Product conforms with Low-Voltage Directive 2014/35/EU.
Part no.
31.05.2017 / Dimensions and specifications may be changed without prior notice.
No.cores x
cross-sec.
mm²
1 x 0,14
2 x 0,14
3 x 0,14
4 x 0,14
5 x 0,14
6 x 0,14
7 x 0,14
8 x 0,14
10 x 0,14
12 x 0,14
14 x 0,14
16 x 0,14
18 x 0,14
20 x 0,14
Outer Ø
app. mm
2,6
3,9
4,0
4,3
4,7
5,2
5,2
5,9
6,5
6,7
6,9
7,3
7,6
8,3
Cop.
weight
kg / km
6,1
12,0
13,0
14,5
15,5
18,2
19,0
21,3
28,7
30,5
32,0
43,2
51,0
55,0
Weight
AWG-No.
app. kg / km
16,0
20,0
27,0
32,0
37,0
42,0
48,0
55,0
65,0
77,0
79,0
89,0
103,0
116,0
26
26
26
26
26
26
26
26
26
26
26
26
26
26
Part no.
No.cores x
cross-sec.
mm²
21 x 0,14
24 x 0,14
25 x 0,14
27 x 0,14
30 x 0,14
32 x 0,14
36 x 0,14
40 x 0,14
42 x 0,14
44 x 0,14
48 x 0,14
52 x 0,14
56 x 0,14
61 x 0,14
Outer Ø
app. mm
8,4
8,9
9,1
9,2
9,5
9,9
10,2
11,1
11,2
11,5
11,7
12,3
12,5
12,8
Cop.
weight
kg / km
56,0
62,0
61,0
65,0
69,0
76,0
83,0
88,0
94,0
110,0
115,0
124,0
132,0
146,0
Weight
AWG-No.
app. kg / km
120,0
131,0
136,0
142,0
157,0
163,0
182,0
209,0
217,0
226,0
240,0
270,0
320,0
370,0
26
26
26
26
26
26
26
26
26
26
26
26
26
26
Continuation
20139
20001
20002
20003
20004
20005
20006
20007
20008
20009
20010
20011
20012
20013
20014
20015
20091
20016
20017
20018
20019
20020
20021
20022
20023
20024
20025
20026
