It is packaged in a 4pin DIP, available in SMT gullw-
ing lead-form option.
Input-output isolation voltage(rms) is 5.0kV.
Collector-emitter voltage is 80V
(*)
and CTR is 20%
to 300% at input current of
±1mA.
■
Agency approvals/Compliance
1. Recognized by UL1577, file No. E64380 (as model
No.
PC814)
2. Package resin : UL flammability grade (94V-0)
■
Applications
1. Programmable controllers
2. Telephone sets, telephone exchangers
3. System appliances
4. Signal transmission between circuits of different po-
tentials and impedances
■
Features

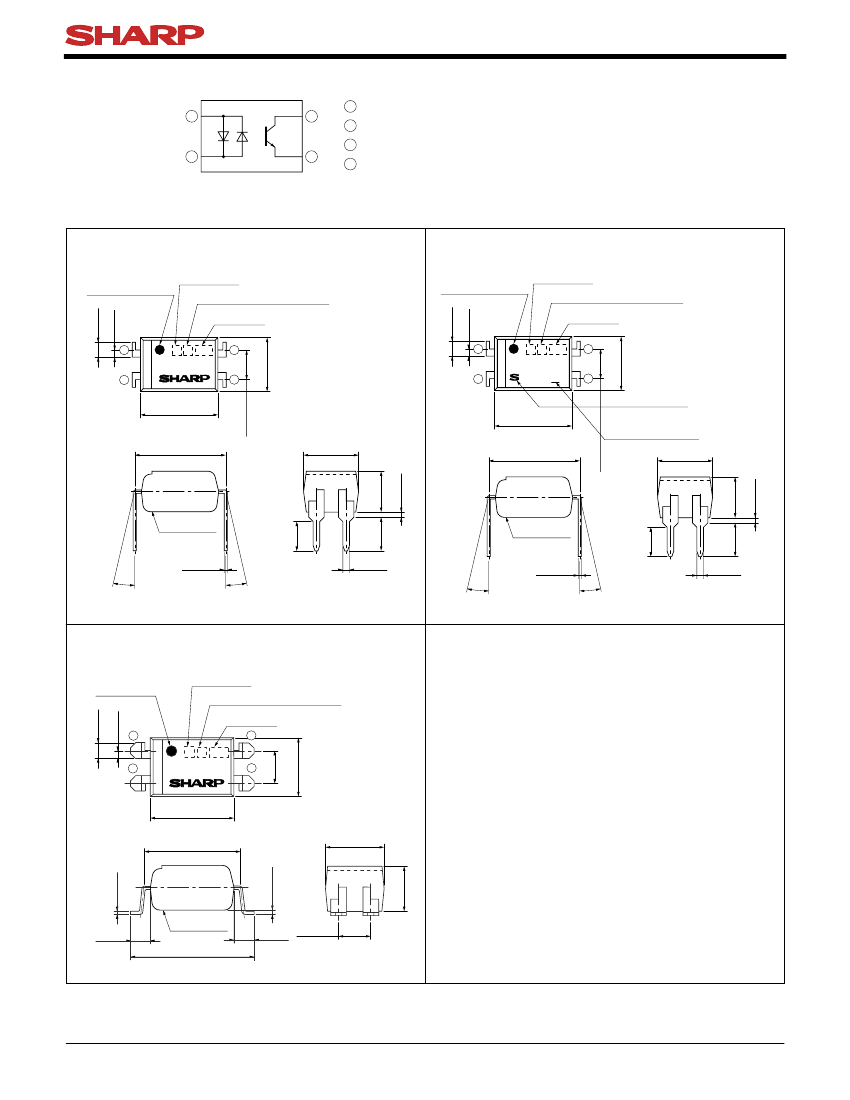

1. 4pin DIP package
2. Double transfer mold package (Ideal for Flow Solder-
ing)
3. AC input type
4. High collector-emitter voltage (V
CEO
: 80V
(*)
)
5. Current transfer ratio (CTR : MIN. 20% at I
F
=±1mA,
V
CE
=5V)
6. High isolation voltage between input and output
(V
iso(rms)
: 5.0 kV)
(*) Up to Date code "P7" (July 2002) V
CEO
: 35V.
From the production Date code "J5" (May 1997) to "P7" (July
2002), however the products were screened by BV
CEO
≥70V.
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
