PD - 91305C
Advanced Process Technology
l
Surface Mount (IRFZ46NS)
l
Low-profile through-hole (IRFZ46NL)
l
175°C Operating Temperature
l
Fast Switching
l
Fully Avalanche Rated
Description
l
HEXFET
®
Power MOSFET
D
IRFZ46NS
IRFZ46NL
V
DSS
= 55V
R
DS(on)
= 0.0165Ω
G
Advanced HEXFET
®
Power MOSFETs from International
Rectifier utilize advanced processing techniques to achieve
extremely low on-resistance per silicon area. This benefit,
combined with the fast switching speed and ruggedized
device design that HEXFET power MOSFETs are well known
for, provides the designer with an extremely efficient and
reliable device for use in a wide variety of applications.
The D
2
Pak is a surface mount power package capable of
accommodating die sizes up to HEX-4. It provides the highest
power capability and the lowest possible on-resistance in
any existing surface mount package. The D
2
Pak is suitable
for high current applications because of its low internal
connection resistance and can dissipate up to 2.0W in a
typical surface mount application.
The through-hole version (IRFZ46NL) is available for low-
profile applications.
I
D
= 53A
S
D 2 Pak
TO-262
Absolute Maximum Ratings
Parameter
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
DM
P
D
@T
A
= 25°C
P
D
@T
C
= 25°C
V
GS
I
AR
E
AR
dv/dt
T
J
T
STG
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
Power Dissipation
Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
Max.
53
37
180
3.8
107
0.71
± 20
28
11
5.0
-55 to + 175
300 (1.6mm from case )
Units
A
W
W
W/°C
V
A
mJ
V/ns
°C
Thermal Resistance
Parameter
R
θJC
R
θJA
Junction-to-Case
Junction-to-Ambient ( PCB Mounted,steady-state)**
Typ.
Max.
1.4
40
Units
°C/W
www.irf.com
1
04/08/04
IRFZ46NS/IRFZ46NL
Electrical Characteristics @ T
J
= 25°C (unless otherwise specified)
Parameter
V
(BR)DSS
Drain-to-Source Breakdown Voltage
∆V
(BR)DSS
/∆T
J
Breakdown Voltage Temp. Coefficient
R
DS(on)
Static Drain-to-Source On-Resistance
V
GS(th)
Gate Threshold Voltage
g
fs
Forward Transconductance
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
S
C
iss
C
oss
C
rss
E
AS
Drain-to-Source Leakage Current
Gate-to-Source Forward Leakage
Gate-to-Source Reverse Leakage
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain ("Miller") Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Internal Source Inductance
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Single Pulse Avalanche Energy
Min.
55
2.0
19
Max. Units
Conditions
V
V
GS
= 0V, I
D
= 250µA
V/°C Reference to 25°C, I
D
=1mA
.0165
Ω
V
GS
=10V, I
D
= 28A
4.0
V

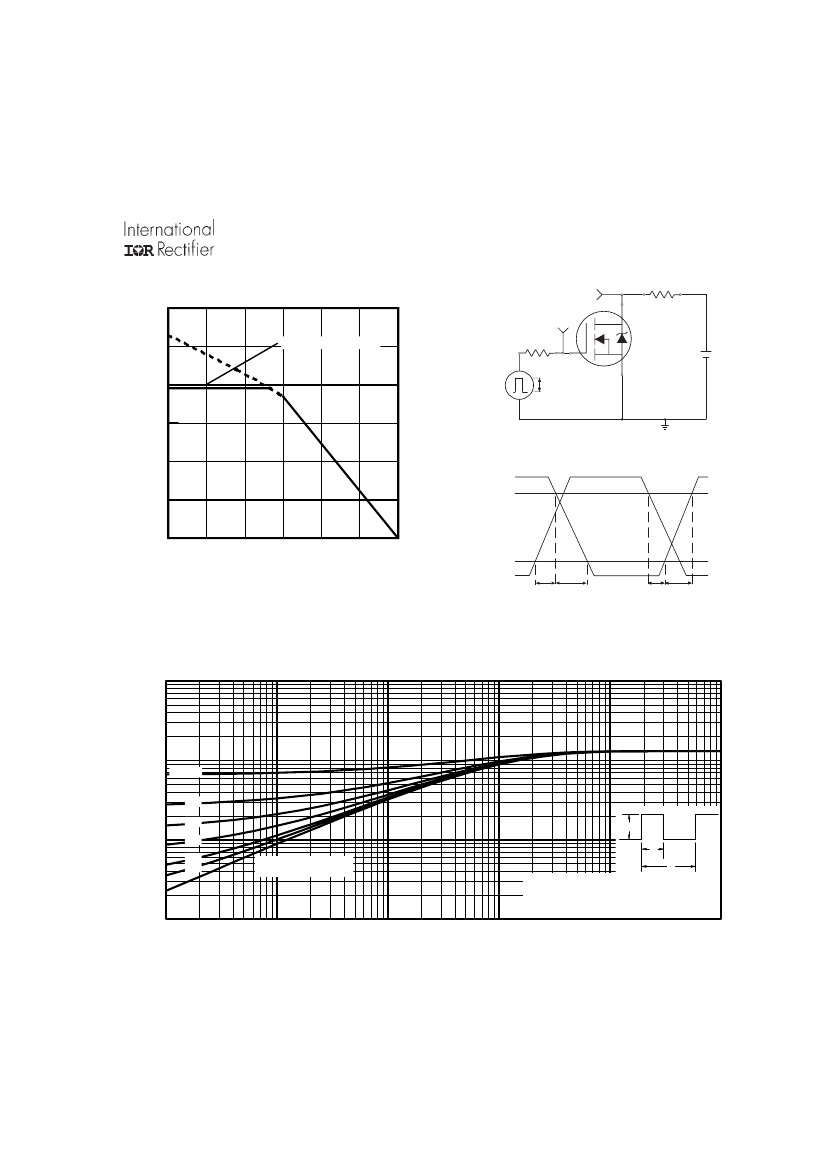

V
DS
= V
GS
, I
D
= 250µA
S
V
DS
= 25V, I
D
= 28A
25
V
DS
= 55V, V
GS
= 0V
µA
250
V
DS
= 44V, V
GS
= 0V, T
J
= 150°C
100
V
GS
= 20V
nA
-100
V
GS
= -20V
72
I
D
= 28A
11
nC
V
DS
= 44V
26
V
GS
= 10V, See Fig. 6 and 13
V
DD
= 28V
I
D
= 28A
ns
R
G
= 12Ω
R
D
= 0.98Ω, See Fig. 10
Between lead,
nH
7.5
and center of die contact
1696
V
GS
= 0V
407
pF
V
DS
= 25V
110
= 1.0MHz, See Fig. 5
583
152
I
AS
= 28A, L = 389mH
Typ.
0.057
14
76
52
57
Source-Drain Ratings and Characteristics
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Parameter
Continuous Source Current
(Body Diode)
Pulsed Source Current
(Body Diode)
Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
Forward Turn-On Time
Min. Typ. Max. Units
Conditions
D
MOSFET symbol
53
showing the
A
G
integral reverse
180
p-n junction diode.
S
1.3
V
T
J
= 25°C, I
S
= 28A, V
GS
= 0V
67 101
ns
T
J
= 25°C, I
F
= 28A
208 312
nC di/dt = 100A/µs
Intrinsic turn-on time is negligible (turn-on is dominated by L
S
+L
D
)
Notes:
Repetitive rating; pulse width limited by
max. junction temperature. ( See fig. 11 )
Starting T
J
= 25°C, L = 389µH
T
J
≤
175°C.
R
G
= 25Ω, I
AS
= 28A. (See Figure 12)
Pulse width
≤
400µs; duty cycle
≤
2%.
Uses IRFZ46N data and test conditions.
This is a typical value at device destruction and represents
operation outside rated limits.
I
SD
≤
28A, di/dt
≤
220A/µs, V
DD
≤
V
(BR)DSS
,
This is a calculated value limited to TJ = 175°C.
Calculated continuous current based on maximum allowable
junction temperature. Package limitation current is 39A.
** When mounted on 1" square PCB (FR-4 or G-10 Material ).
For recommended footprint and soldering techniques refer to application note #AN-994.
2
www.irf.com
IRFZ46NS/IRFZ46NL

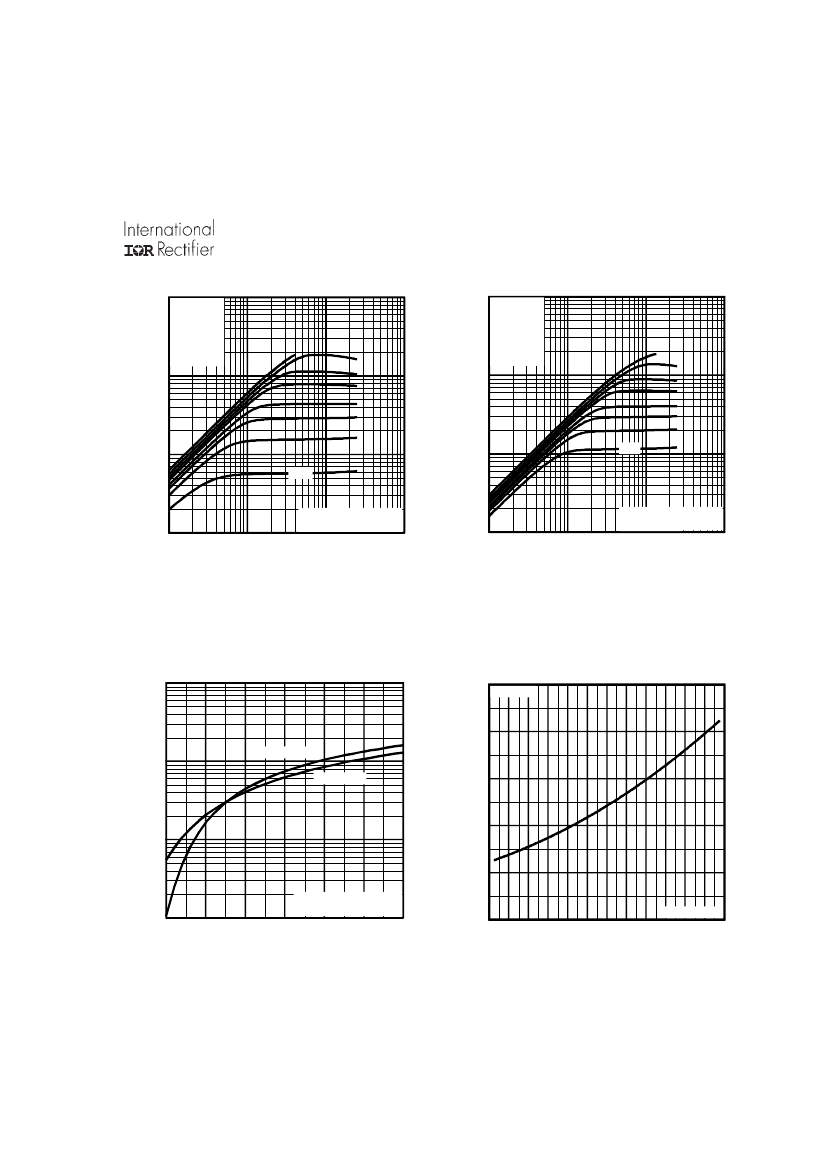

1000
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM 4.5V
TOP
1000
I , Drain-to-Source Current (A)
D
I , Drain-to-Source Current (A)
D
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM 4.5V
TOP
100
100
10
10
4.5V
4.5V
1
0.1
20µs PULSE WIDTH
T
J
= 25°C
T
C
= 25°C
1
10
A
100
1
0.1
20µs PULSE WIDTH
T
J
= 175°C
T
C
= 175°C
1
10
100
A
VDS , Drain-to-Source Voltage (V)
VDS , Drain-to-Source Voltage (V)
Fig 1.
Typical Output Characteristics
Fig 2.
Typical Output Characteristics
1000
2.5
R
DS(on)
, Drain-to-Source On Resistance
(Normalized)
I
D
= 46A
I
D
, Drain-to-Source Current (A)
2.0
100
T
J
= 25°C
T
J
= 175°C
1.5
1.0
10
0.5
1
4
5
6
7
V
DS
= 25V
20µs PULSE WIDTH
8
9
10
A
0.0
-60 -40 -20
0
20
40
60
V
GS
= 10V
80 100 120 140 160 180
A
V
GS
, Gate-to-Source Voltage (V)
T
J
, Junction Temperature (°C)
Fig 3.
Typical Transfer Characteristics
Fig 4.
Normalized On-Resistance
Vs. Temperature
www.irf.com
3
IRFZ46NS/IRFZ46NL

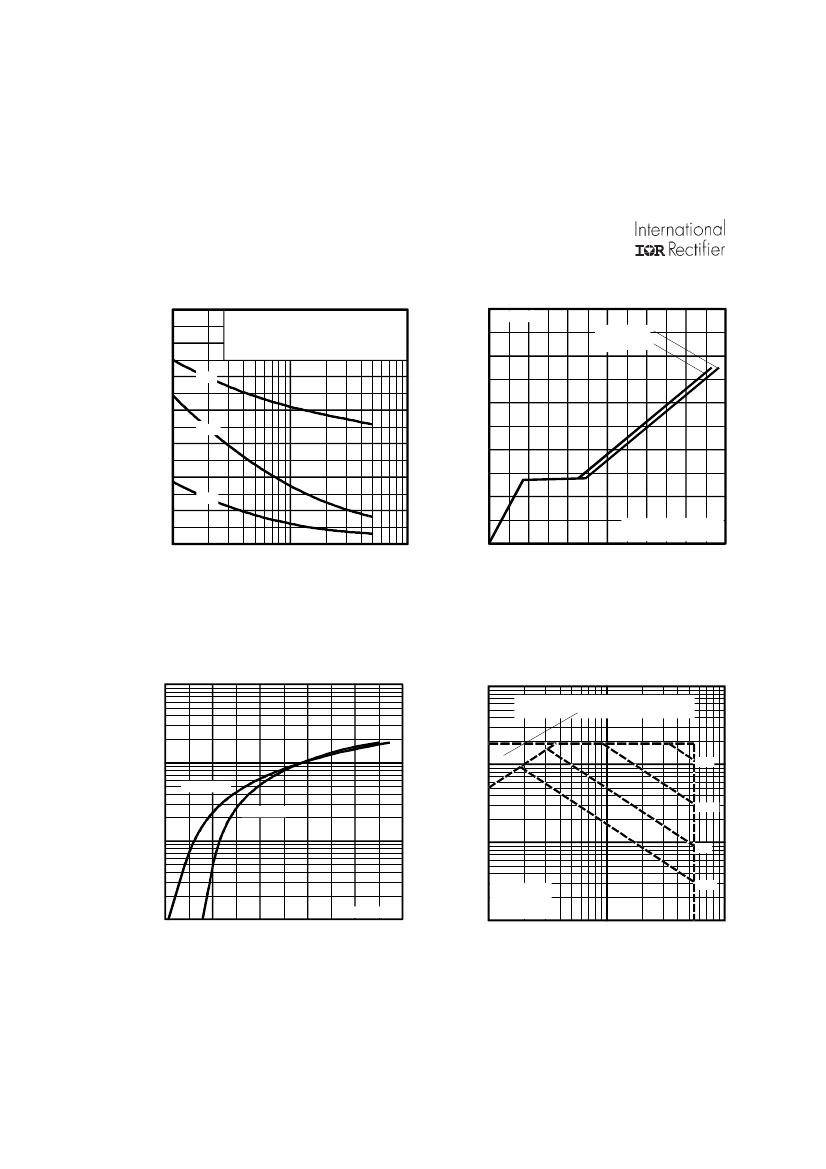

2800
2400
C, Capacitance (pF)
2000
C
iss
1600
C
oss
1200
V
GS
, Gate-to-Source Voltage (V)
V
GS
= 0V,
f = 1MHz
C
iss
= C
gs
+ C
gd
, C
ds
SHORTED
C
rss
= C
gd
C
oss
= C
ds
+ C
gd
20
I
D
= 28A
V
DS
= 44V
V
DS
= 28V
16
12
8
800
C
rss
400
4
0
1
10
100
A
0
0
10
20
30
FOR TEST CIRCUIT
SEE FIGURE 13
40
50
60
A
V
DS
, Drain-to-Source Voltage (V)
Q
G
, Total Gate Charge (nC)
Fig 5.
Typical Capacitance Vs.
Drain-to-Source Voltage
Fig 6.
Typical Gate Charge Vs.
Gate-to-Source Voltage
1000
1000
I
SD
, Reverse Drain Current (A)
OPERATION IN THIS AREA LIMITED
BY R
DS(on)
I
D
, Drain Current (A)
100
100
10µs
T
J
= 175°C
T
J
= 25°C
10
100µs
10
1ms
1
0.4
0.8
1.2
1.6
V
GS
= 0V
2.0
A
1
1
T
C
= 25°C
T
J
= 175°C
Single Pulse
10
10ms
2.4
A
100
V
SD
, Source-to-Drain Voltage (V)
V
DS
, Drain-to-Source Voltage (V)
Fig 7.
Typical Source-Drain Diode
Forward Voltage
Fig 8.
Maximum Safe Operating Area
4
www.irf.com
IRFZ46NS/IRFZ46NL
V
DS
60
50
ID, Drain Current (A)
R
D
V
GS
Limited By Package
R
G
10V
Pulse Width
≤ 1
µs
Duty Factor
≤ 0.1 %
D.U.T.
V
-
DD
+
40
30
Fig 10a.
Switching Time Test Circuit
20
V
DS
90%
10
0
25
50
75
100
125
150
175
T C , Case Temperature (°C)
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Fig 9.
Maximum Drain Current Vs.
Case Temperature
10
Fig 10b.
Switching Time Waveforms
Thermal Response (Z
thJC
)
1
D = 0.50
0.20
0.10
0.1
0.05
0.02
0.01
SINGLE PULSE
(THERMAL RESPONSE)
Notes:
1. Duty factor D = t
1
/ t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.0001
0.001
0.01
0.1
1
P
DM
t
1
t
2
0.01
0.00001
t
1
, Rectangular Pulse Duration (sec)
Fig 11.
Maximum Effective Transient Thermal Impedance, Junction-to-Case
www.irf.com
5
