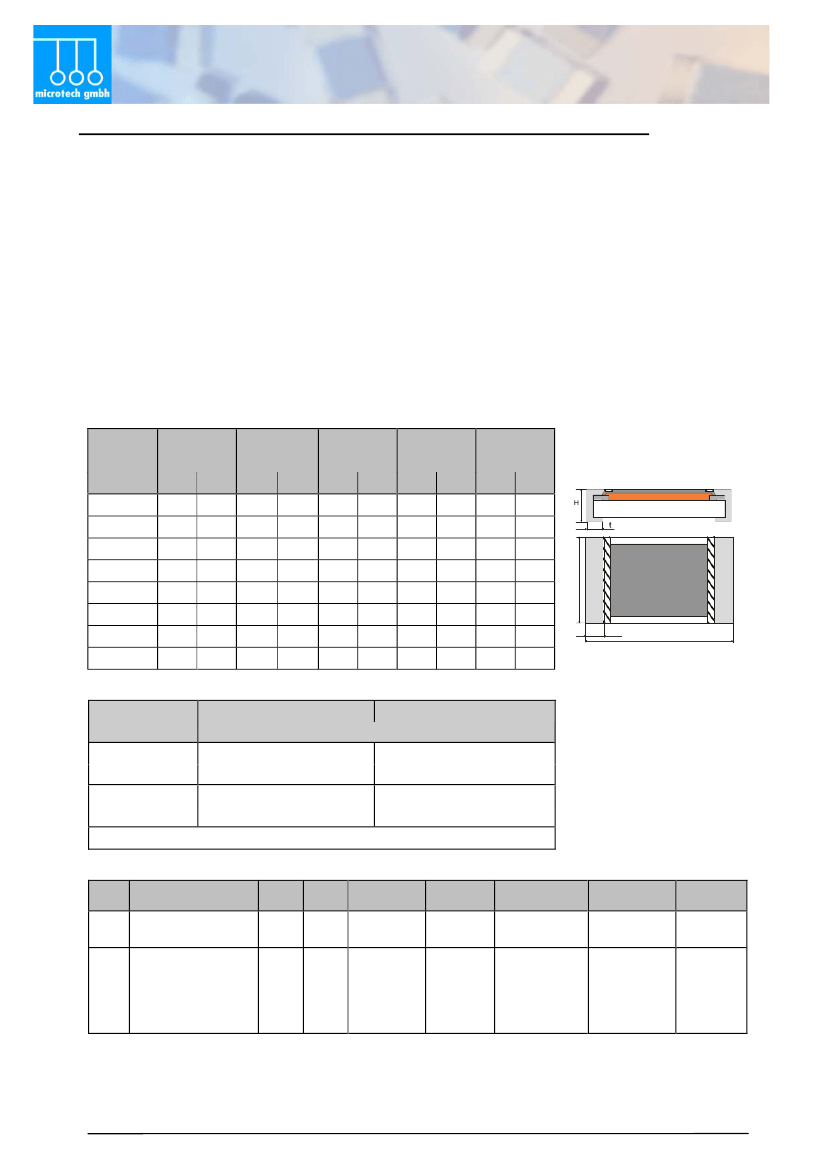

microtech GmbH electronic Teltow
Chip resistors - Made in Germany
ISO/TS 16949:2009
ISO 14001:2009
Trimmable series with enhanced visual recognition - Automotive variant
Type: AQA
Sizes: 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512
Characteristics:
•
•
•
•
•
•
•
•
Chip resistors in thick film technology
Resistance area trimmable after manufacturing, clearly seperated for detecting by visual systems
Maximum trimming factor=1,3; higher factors by reducing of U
max
or P
70
available
Resistance area coated with glass passivation
AEC Q200 qualified
RoHS-conform
Customer specific barcodes available - also in 2D
All sizes can be manufactured with the following contact variants
Electroplated pure tin
Dimensions (in mm):
Size
L
Length
Min
Max
W
Width
Min
Max
H
Depth
Min
Max
t
Contact
back
Min
Max
T
Contact
front
Min
Max
0402
0603
0805
1206
1210
1218
2010
2512
0,95
1,50
1,85
2,90
3,00
3,00
4,80
6,10
1,10
1,70
2,15
3,35
3,30
3,30
5,20
6,50
0,45
0,75
1,10
1,45
2,35
4,50
2,30
3,00
0,60
0,95
1,40
1,75
2,65
4,80
2,70
3,30
0,25
0,35
0,35
0,35
0,50
0,50
0,50
0,50
0,40
0,55
0,65
0,65
0,75
0,75
0,75
0,75
0,10
0,10
0,15
0,25
0,35
0,35
0,35
0,35
0,35
0,50
0,60
0,75
0,85
0,85
0,85
0,85
0,05
0,10
0,15
0,15
0,25
0,25
0,25
0,25
0,35
0,50
0,60
0,75
0,85
0,85
0,85
0,85
T
W
L
Packaging units:
Reel
Ø
180 mm
330 mm
Samples on request
5 T pcs.
10 T pcs. for size 0402
10 T pcs.
20 T pcs.
8 T pcs.
16 T pcs.
Card tape
acc. EN 60286-3
4 T pcs.
Blister tape
Ordering information:
AQA
Type
AQA
Contact
Standard (without
add.)
0805
Size
0402
.
10R
-30%
50ppm/K
±
TCR
50
100
N
Marking
P
Packaging
10
(optional)
R-
±
Tolerance
Value
1R
to
100R
Customer
specific
pcs. / Reel
(T pcs.)
Depends
on size
and
packaging
unit
to
.
N- only without P- Card tape
B- Blister tape
S- Bulk
2512
Page 66
Revision: 25-Jan-18
Catalog microtech GmbH electronic

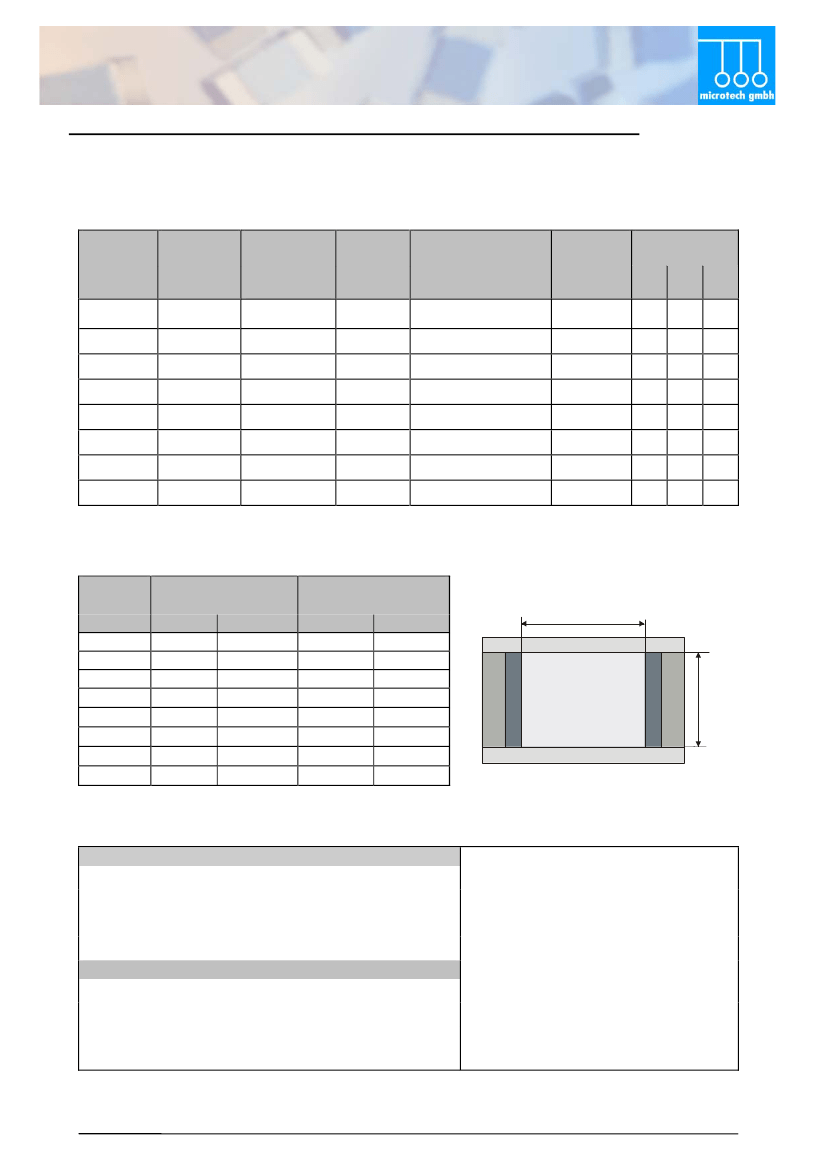

microtech GmbH electronic Teltow
ISO/TS 16949:2009
ISO 14001:2009
Chip resistors - Made in Germany
Trimmable series with enhanced visual recognition - Automotive variant
Type: AQA
Sizes: 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512
Technical data – depending on size:
Size
Nominal
voltage
U
max
(V)
0402
0603
0805
1206
1210
1218
2010
2512
50
75
150
200
200
200
300
500
Load
P
70
(W)
0,063
0,100
0,125
0,250
0,500
1,000
0,500
1,000
1R – 100R
1R – 100R
1R – 100R
1R – 100R
1R – 100R
1R – 100R
1R – 100R
1R – 100R
R-Range
R-Tolerance*
(± %)
-5 / -10 / -20 / -30
-5 / -10 / -20 / -30
-5 / -10 / -20 / -30
-5 / -10 / -20 / -30
-5 / -10 / -20 / -30
-5 / -10 / -20 / -30
-5 / -10 / -20 / -30
-5 / -10 / -20 / -30
TCR
(± ppm/K)
50 / 100
50 / 100
50 / 100
50 / 100
50 / 100
50 / 100
50 / 100
50 / 100
P
x
x
x
x
x
x
x
x
Packaging
B
S
x
x
x
x
x
x
x
x
*optional with tolerances of ±5%, ±10%, ±20% or ±30%
Dimensions of trimming area (in mm):
Size
Min
L
trim
(mm)
Length
Max
Min
W
trim
(mm)
Width
Max
L
trim
0402
0603
0805
1206
1210
1218
2010
2512
0,30
0,50
0,90
1,80
1,40
1,40
2,90
4,20
0,50
0,90
1,30
2,20
1,80
1,80
3,60
5,00
0,30
0,35
0,70
1,00
1,70
3,60
1,80
1,90
0,40
0,55
0,90
1,20
1,90
3,80
2,00
2,10
W
trim
Technical data - general:
Technical data
Operating temperature range
Climatic category acc. EN 60068
Solderability acc. EN 60068-2-58
Soldering heat resistance acc. EN 60068-2-58
Long time stability (before trimming)
Storage 155°C / 1000h
Endurance P
70
/ 70°C / 1000h
Damp heat, steady state (56d / 40°C / 96%)
Biased humidity (1000h / 85°C / 85%)
±( 1,0% + 0,05R )
±( 0,5% + 0,05R )
± ( 1,0% + 0,05R )
± (2% +0,05R)
-55°C… +155°C
55 / 155 / 56
245°C 3s
±( 0,5% + 0,05R ) at 260°C 10s
Data, unless specified, acc. EN 140401-802.
Catalog microtech GmbH electronic
Revision: 25-Jan-18
Page 67
