P1014NXN5HFB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> P1014NXN5HFB

P1014NXN5HFB: DescriptionQorIQ, 32-Bit Power Arch, SoC, 800 MHz, USB, SATA, SEC, GbE, PCIe, DDR3, -40C to 105C, Rev2.01; CategoryThe embedded processor and controller Microcontrollers and processors; File Size214KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

P1014NXN5HFB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P1014NXN5HFB	-	-	View	Buy Now

P1014NXN5HFB Overview

QorIQ, 32-Bit Power Arch, SoC, 800 MHz, USB, SATA, SEC, GbE, PCIe, DDR3, -40C to 105C, Rev2.01

P1014NXN5HFB Parametric

Parameter Name	Attribute value
Brand Name	Freescale
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	BGA
package instruction	19 X 19 MM, 1.90 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, PLASTIC, TEPBGA-425
Contacts	425
Reach Compliance Code	compliant
ECCN code	3A991.A.2
Address bus width
bit size	32
boundary scan	YES
maximum clock frequency	100 MHz
External data bus width
Format	FLOATING POINT
Integrated cache	YES
JESD-30 code	S-PBGA-B425
JESD-609 code	e2
length	19 mm
low power mode	YES
Humidity sensitivity level	3
Number of terminals	425
Package body material	PLASTIC/EPOXY
encapsulated code	FBGA
Package shape	SQUARE
Package form	GRID ARRAY, FINE PITCH
Peak Reflow Temperature (Celsius)	260
Maximum seat height	1.9 mm
speed	800 MHz
Maximum supply voltage	1.05 V
Minimum supply voltage	0.95 V
Nominal supply voltage	1 V
surface mount	YES
technology	CMOS
Terminal surface	TIN COPPER/TIN SILVER
Terminal form	BALL
Terminal pitch	0.8 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	40
width	19 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

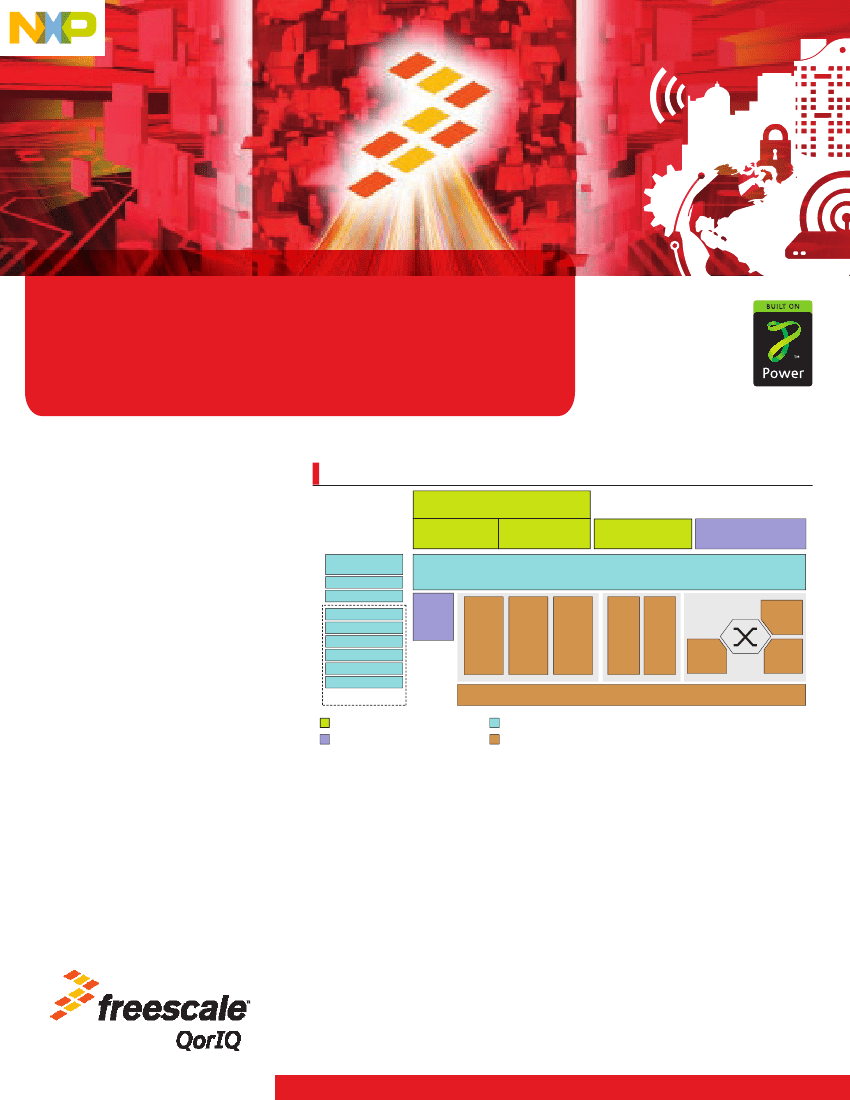

QorIQ Communications Platforms

QorIQ P1010 and P1014

Communications Processors

QorIQ P1010 and P1014 Block Diagram

Target Markets and Applications

• Wireless LAN access points

(802.11ac/802.11n)

• SOHO/SMB routers

• Controller for Ethernet switches

• Network attached storage

• Video surveillance

• Factory automation and industrial control

QorIQ P1010 and P1014 Processor Block Diagram

Power Architecture

e500-v2 Core

32 KB

D Cache

Security Fuse

Processor

Security Monitor

2x FlexCAN

USB 2.0 w/PHY

IFC, TDM

SD/MMC

2x DUART

2x I

SPI, GPIO

(P1010 only)

6-Lane 2.5 GHz SerDes

Security

4.4

1 GE

(P1010

only)

SATA

PCIe

DMA

32 KB

I Cache

256 KB

Frontside

Cache

Coherent System Bus

16/32-bit DDR3/3L

Memory Controller

(16-bit only for the P1014)

Core Complex (CPU and L2 Cache)

Accelerators and Memory Control

Basic Peripherals and Interconnect

Networking Elements

Overview

The QorIQ P1010 and P1014 processors are

members of the value-perfomance tier, offering

extensive integration and extreme power

intelligence for a wide variety of applications

in cost-sensitive networking, network

attached storage, digital video surveillance

and industrial segments. Based on 45 nm

technology for low-power implementation,

the P1010 and P1014 processors provide a

single-core, low-power solution for the 533

to 1000 MHz performance range, along with

a trusted security platform and a rich set of

interfaces.

Secure Boot

The secure boot feature ensures that the

processors only run authenticated code.

Through a set of fuses that OEMs can

program once but can never be read, secure

boot prevents unauthorized parties from

reverse engineering code to steal intellectual

property, from loading illegitimate code to

change system functionality or from extracting

sensitive user information that may be stored

in the system.

P1014NXN5HFB Related Products

	P1014NXN5HFB	P1014NSN5HFB	P1010NSE5HFB	P1014NSE5HFB	P1014NXE5HFB	P1010NXN5HFB
Description	QorIQ, 32-Bit Power Arch, SoC, 800 MHz, USB, SATA, SEC, GbE, PCIe, DDR3, -40C to 105C, Rev2.01	QorIQ, 32-Bit Power Arch, SoC, 800 MHz, USB, SATA, GbE, PCIe, DDR3, 0-105C, Rev2.01	QorIQ, 32-Bit Power Arch, SoC, 800 MHz, USB, SATA, SEC, GbE, PCIe, DDR3, Trusted Boot, 0-105C, R2.01	QorIQ, 32-Bit Power Arch, SoC, 800 MHz, USB, SATA, SEC, GbE, PCIe, DDR3, 0-105C, Rev2.01	32-BIT, 800 MHz, RISC PROCESSOR, PBGA425, 19 X 19 MM, 1.90 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, PLASTIC, TEPBGA-425	32-BIT, 800 MHz, RISC PROCESSOR, PBGA425, 19 X 19 MM, 1.90 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, PLASTIC, TEPBGA-425
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	NXP	NXP	NXP	NXP	NXP	NXP
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	compliant
Base Number Matches	1	1	1	1	1	1
Brand Name	Freescale	Freescale	Freescale	Freescale	-	-
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-	Lead free
Parts packaging code	BGA	BGA	-	BGA	BGA	BGA
package instruction	19 X 19 MM, 1.90 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, PLASTIC, TEPBGA-425	19 X 19 MM, 1.90 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, PLASTIC, TEPBGA-425	-	19 X 19 MM, 1.90 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, PLASTIC, TEPBGA-425	19 X 19 MM, 1.90 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, PLASTIC, TEPBGA-425	19 X 19 MM, 1.90 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, PLASTIC, TEPBGA-425
Contacts	425	425	-	425	425	425
ECCN code	3A991.A.2	3A991.A.2	-	5A002.A	5A002.A	3A991.A.2
bit size	32	32	-	32	32	32
boundary scan	YES	YES	-	YES	YES	YES
maximum clock frequency	100 MHz	100 MHz	-	100 MHz	100 MHz	100 MHz
Format	FLOATING POINT	FLOATING POINT	-	FLOATING POINT	FLOATING POINT	FLOATING POINT
Integrated cache	YES	YES	-	YES	YES	YES
JESD-30 code	S-PBGA-B425	S-PBGA-B425	-	S-PBGA-B425	S-PBGA-B425	S-PBGA-B425
JESD-609 code	e2	e2	-	e2	e2	e2
length	19 mm	19 mm	-	19 mm	19 mm	19 mm
low power mode	YES	YES	-	YES	YES	YES
Humidity sensitivity level	3	3	-	3	3	3
Number of terminals	425	425	-	425	425	425
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	FBGA	FBGA	-	FBGA	FBGA	FBGA
Package shape	SQUARE	SQUARE	-	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY, FINE PITCH	GRID ARRAY, FINE PITCH	-	GRID ARRAY, FINE PITCH	GRID ARRAY, FINE PITCH	GRID ARRAY, FINE PITCH
Peak Reflow Temperature (Celsius)	260	260	-	260	260	260
Maximum seat height	1.9 mm	1.9 mm	-	1.9 mm	1.9 mm	1.9 mm
speed	800 MHz	800 MHz	-	800 MHz	800 MHz	800 MHz
Maximum supply voltage	1.05 V	1.05 V	-	1.05 V	1.05 V	1.05 V
Minimum supply voltage	0.95 V	0.95 V	-	0.95 V	0.95 V	0.95 V
Nominal supply voltage	1 V	1 V	-	1 V	1 V	1 V
surface mount	YES	YES	-	YES	YES	YES
technology	CMOS	CMOS	-	CMOS	CMOS	CMOS
Terminal surface	TIN COPPER/TIN SILVER	TIN COPPER/TIN SILVER	-	TIN COPPER/TIN SILVER	TIN COPPER/TIN SILVER	TIN COPPER/TIN SILVER
Terminal form	BALL	BALL	-	BALL	BALL	BALL
Terminal pitch	0.8 mm	0.8 mm	-	0.8 mm	0.8 mm	0.8 mm
Terminal location	BOTTOM	BOTTOM	-	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	40	40	-	40	40	40
width	19 mm	19 mm	-	19 mm	19 mm	19 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	-	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
